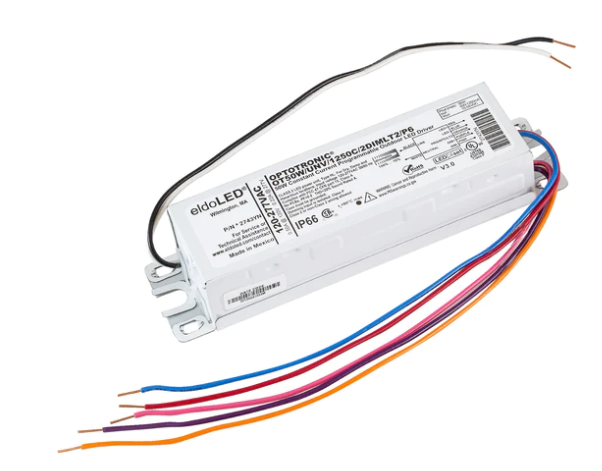

Osram 79371 Optotronic Programmable Outdoor LED Driver 50W (Case 20) OT 50W UNV 1250C 2DIMLT2 P6

Product Description

The Osram 79371 is an Optotronic OT50W/UNV/1250C/2DIMLT2/P6 programmable outdoor constant-current LED driver with universal 120-277 VAC input and a 50W maximum output. It offers a programmable output current range of 600 to 1250 mA (factory default 700 mA) and an output voltage range of 15 to 55 VDC. The driver supports 0-10 V analog dimming (10-100%), is rated IP66 for damp and wet locations, and mounts with feet.

• Universal input 120-277 VAC with 50W maximum output and output voltage range 15-55 VDC
• Programmable constant-current output 600-1250 mA (factory set to 700 mA); Class 2 driver
• 0-10 V analog dimming (10-100%), IP66 damp and wet rating, feet mounting

Product Highlights

Programmable 600-1250 mA output; universal 120-277 V input; IP66 outdoor rating

Product Information

Standard Information

• Brand: OSRAM
• Manufacturer Part Number: 79371

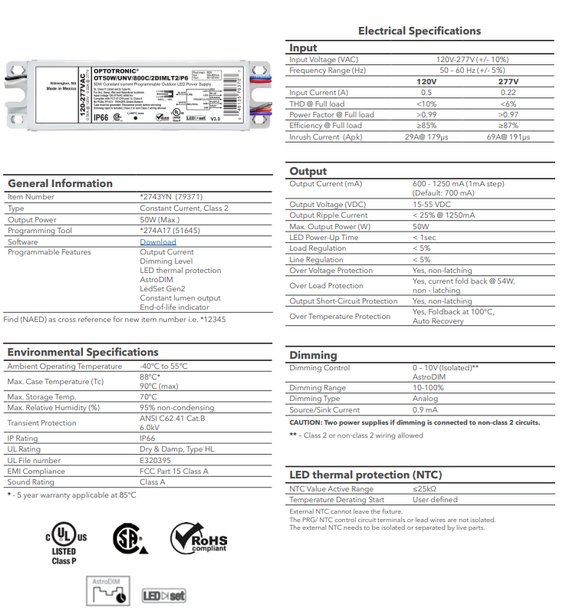

Technical Specifications

• Brand: Osram
• Manufacturer Part Number: 79371
• Model: OT50W/UNV/1250C/2DIMLT2/P6
• Manufacturer Material Code: 79371/*2743YN
• Driver Type: Constant-Current-Programmable
• Input Voltage: 120-277V (Universal)
• Max Output Power: 50W
• Output Current Programmable Range: 600-1250 mA
• Output Current Factory Setting: 700 mA
• Max Output Current: 1250 mA
• Output Voltage Range: 15-55 VDC
• Max Output Voltage: 55V
• Dimming: 0-10V analog (10-100%)
• Location Rating: IP66 (Dry/Damp/Wet)
• Mounting Type: Feet mounting
• Dimensions: 6.6" L x 1.7" W x 1.18" H
• UL Class: Class 2
• Case Size: 20
