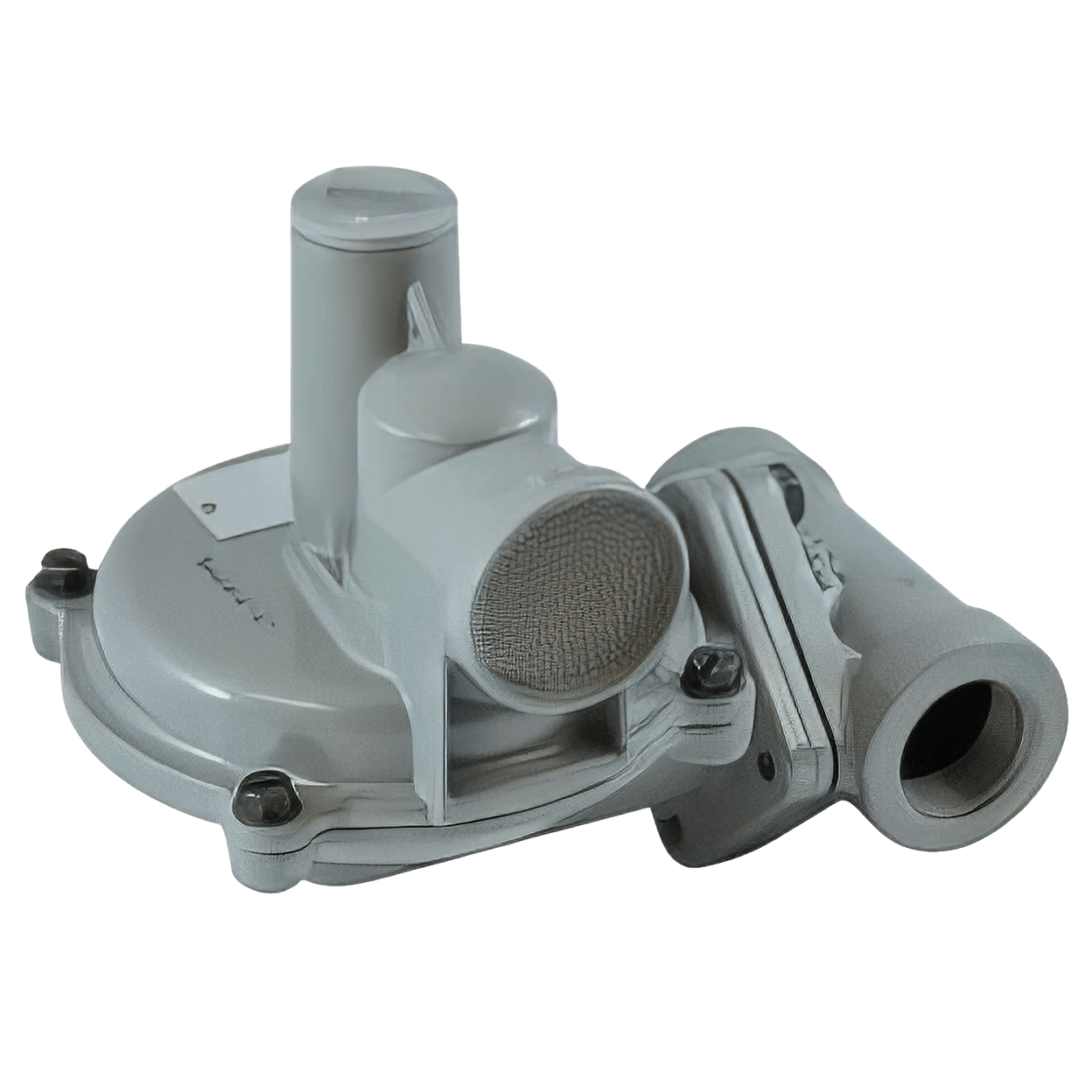

Oslin Nation B42R38DG75 Itron B42 Series 3/4-in Gas Internal Relief Pressure Regulator, 3/8 in Orifice

Product Description

The Oslin Nation B42R38DG75 is a self-operated gas pressure regulator. This product is designed to regulate gas pressure effectively, featuring an internal relief option. It is suitable for both natural gas and liquid propane applications.

• Internal relief for pressure control
• Constructed with a high tensile strength cast iron body
• Operating temperature range from negative twenty to 150 degrees Fahrenheit

Product Highlights

This pressure regulator stands out for its compact design and high performance. With a molded diaphragm and a six to one lever ratio, it ensures effective pressure regulation and performance.

Product Information

Standard Information

• Brand: Oslin Nation Co
• MPN: B42R38DG75

Technical Specifications

• Inlet Size: 3/4 inch
• Maximum Pressure Rating: 20 psig
• Operating Temperature Range: -20 to 150 degrees Fahrenheit
• Valve Body Material: High tensile strength cast iron
• Orifice Size: 3/8 inch
• Gas Application: Natural Gas, Liquid Propane
• Lever: Zinc and Dichromate Plated Steel
• Emergency Inlet Pressure: 75 psig
• Emergency Outlet Pressure (No Damage): 60 psig
• Emergency Outlet Pressure (Containment): 30 psig
