Oslin Nation B42R13DG10 Itron B42 Series 1-in Gas Internal Relief Pressure Regulator

Product Description

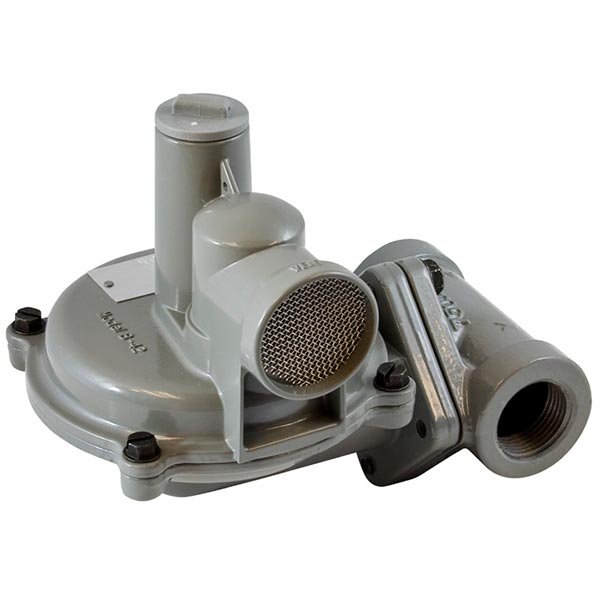

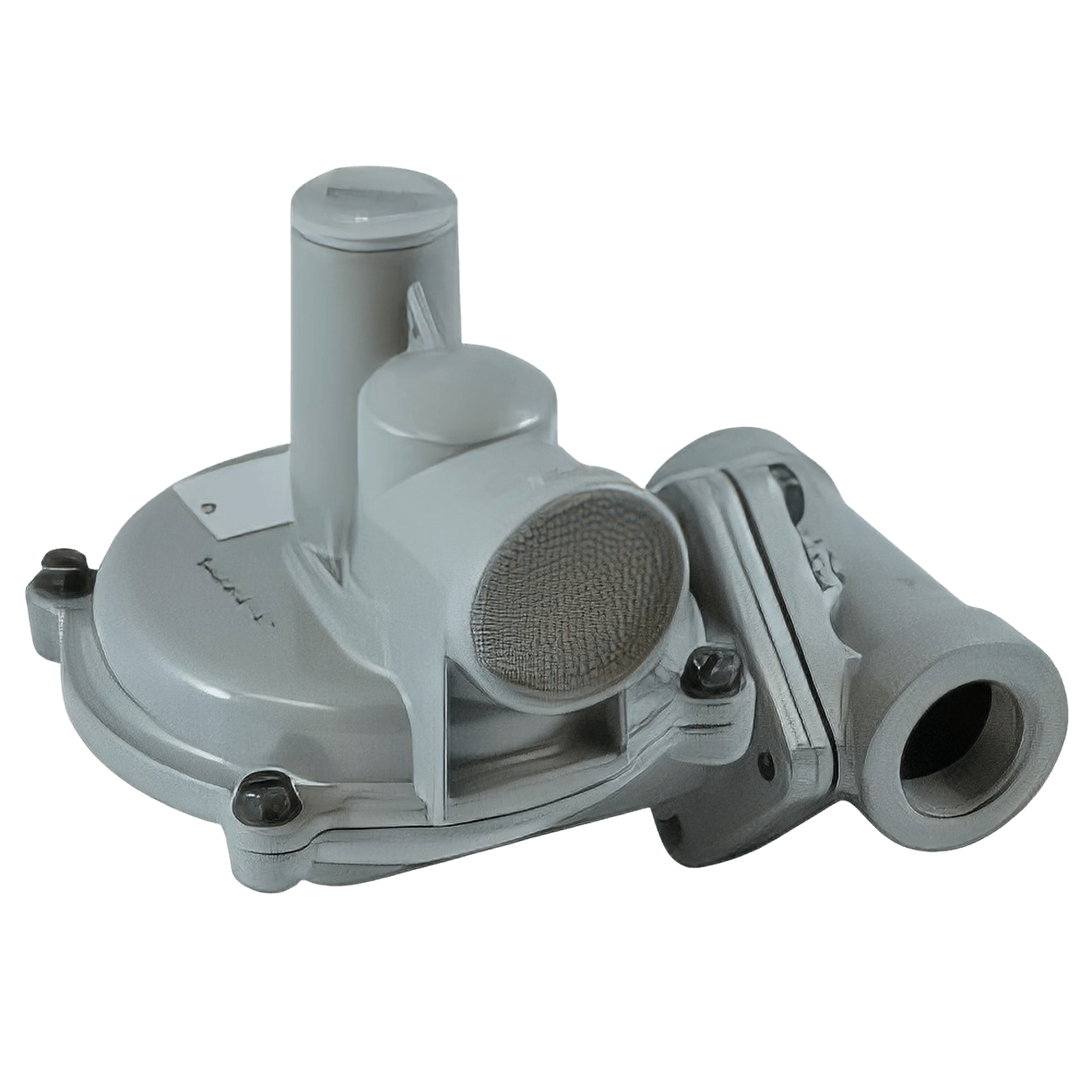

The Oslin Nation Co B42R13DG10 is an Itron B42 series one inch gas internal relief pressure regulator. It is designed for use with natural gas and liquid propane, offering efficient pressure regulation for various applications. This unit features a spring-loaded self-operated mechanism with an internal relief option. It provides a consistent, reliable performance with a pressure adjustment range of six to sixteen inches water column.

• One inch inlet size
• Operating temperature range from negative twenty to one hundred fifty degrees Fahrenheit
• Spring-loaded internal relief valve

Product Highlights

This regulator is ideal for plumbers and HVAC technicians needing reliable pressure regulation in diverse environments. The compact design allows for easy installation in tight spaces while providing robust performance.

Product Information

Standard Information

• Brand: Oslin Nation Co
• MPN: B42R13DG10

Technical Specifications

• Country of Origin: US
• Emergency Inlet Pressure: 40 psig
• Emergency Outlet Pressure (Containment): 30 psig
• Gas Application: Natural Gas, Liquid Propane
• K-Factor: 416 K
• Lever: Zinc and Dichromate Plated Steel
• Lever Pin: #303 Stainless Steel
• MAOP: 10 psig
• Orifice Size: 1/2 in
• Outlet Size: 1 in
• Valve Body: High tensile strength cast iron (ASTM A-126, Class A)
• Valve Seat: Buna-N
• Valve Stem: Die Cast Zinc
