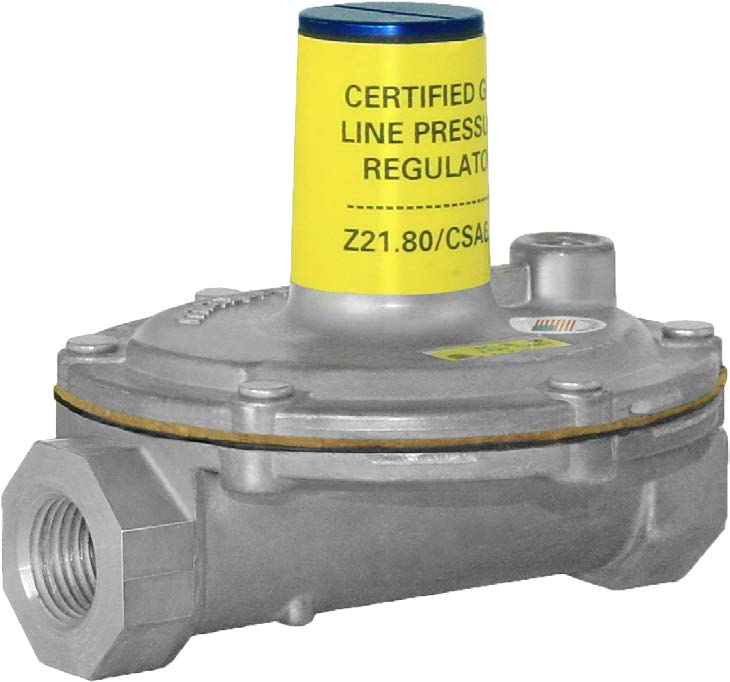

Oslin Nation 325-7AL Maxitrol 325-L Series 1-1/4-in / 1-1/2 in 1250 CFM Lever Acting Line Pressure Regulator

Product Description

The Oslin Nation 325-7AL Maxitrol 325-L Series line pressure regulator is designed for 2 psi piping systems. Suitable for residential, commercial, and industrial applications, it features a high leverage linkage assembly for positive dead-end lock-up. This regulator provides precise control from full flow to pilot flow, accommodating natural, manufactured, mixed, and liquefied petroleum gases.

• Maxitrol’s 325-L Series line pressure regulators are for 2 psi piping systems
• 325 Series regulators are for use on residential, commercial, and industrial applications
• The 325 Series features a high leverage linkage assembly to deliver positive dead-end lock-up

Product Highlights

Designed for 2 psi piping systems, the Oslin Nation 325-7AL regulator ensures precise control for various gas types in residential, commercial, and industrial settings.

Product Information

Standard Information

• Brand: OSLIN NATION
• Manufacturer Part Number: 325-7AL

Technical Specifications

• Brand: OSLIN NATION
• MPN: 325-7AL
• Ambient Temperature Range: -40 to 205 deg F
• Capacity: 1,250,000 Btu/hr
• Gas Types: Natural, Manufactured, Mixed Gases, Liquefied Petroleum Gases, LP Gas-Air Mixtures
• Housing Material: Aluminum
• Maximum Inlet Pressure: 2 psi
• Mfg Standards/Approvals: ANSI Z21.80/CSA 6.22 Line Pressure Regulators
• Minimum Inlet Pressure: 1 psi
• Outlet Pressure Set Point: 7.0 in WC
• Pipe Size: 1-1/4 in, 1-1/2 in
• Swing Radius: 6.1 in
• Vent Connection: 1/2 in NPT
