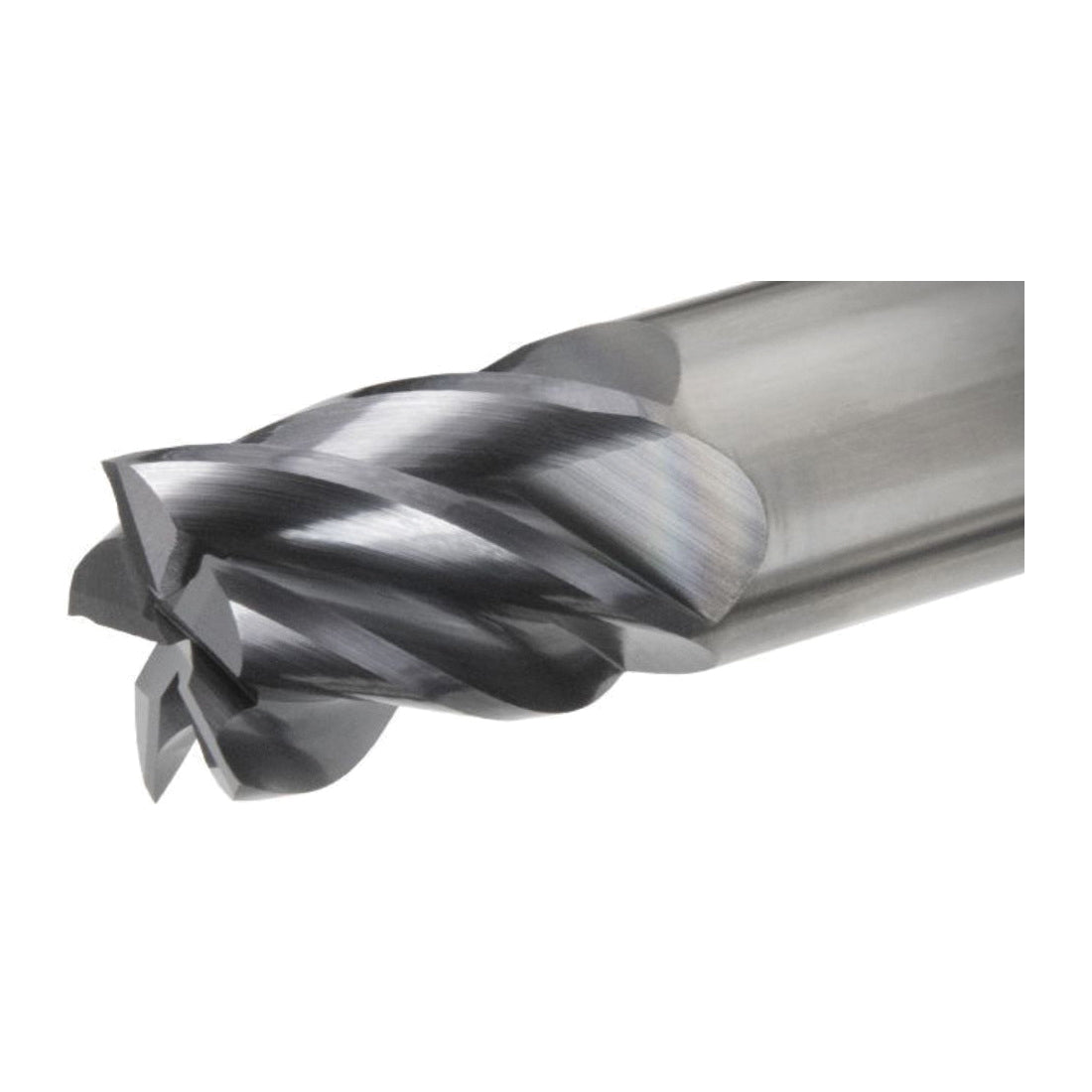

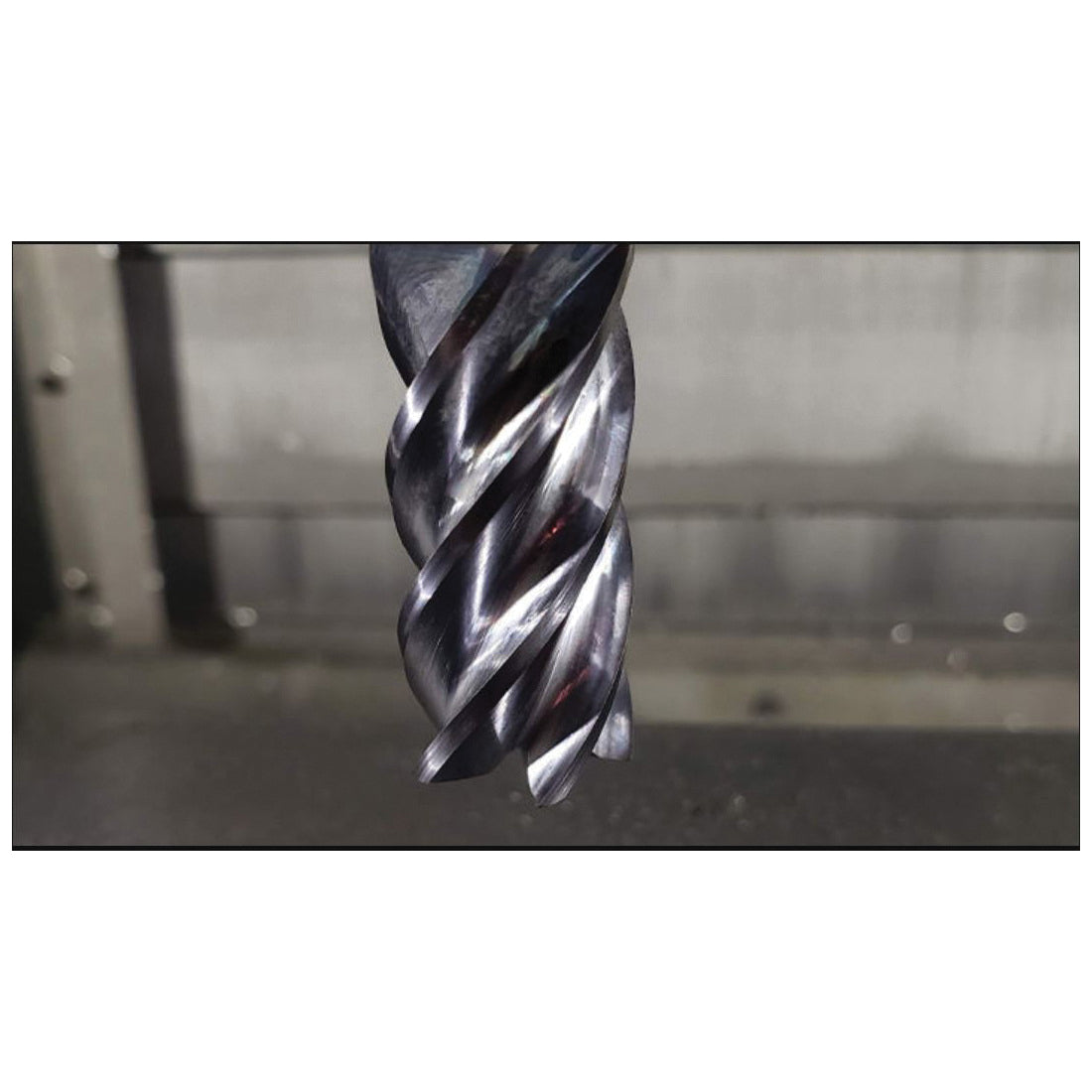

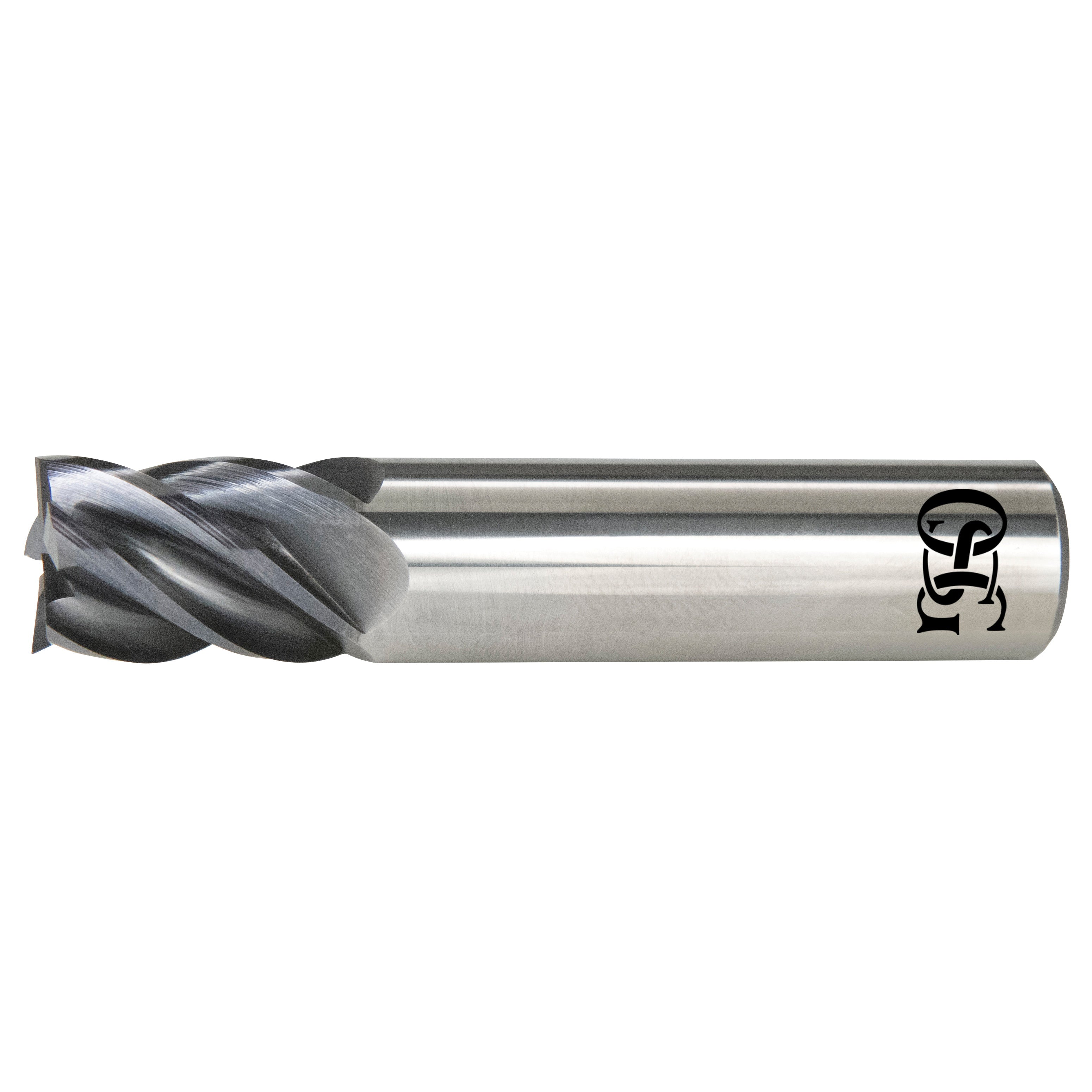

OSG VGM5-0250 1x1.1/4x4 R.03 5F EXO CARB DUARISE

Product Description

The OSG VGM5-0250 is a carbide end mill designed for precision milling tasks. It features a five-flute design that enhances chip removal and provides smooth cutting action in various materials. The corner radius of 0.03 inches minimizes chatter and helps achieve a fine finish. The tool is suitable for high-performance applications, especially in steel and stainless steel machining.

• Material: Carbide
• Flute Length: 1.25 inches
• Overall Length: 4 inches

Product Highlights

This end mill is engineered for high efficiency and durability, making it ideal for demanding machining tasks.

Product Information

Standard Information

• Brand: OSG
• Series: VGM5

Technical Specifications

• Diameter: 1.00 inches
• Shank Diameter: 1.00 inches
• Flute Type: Helical
• Number of Flutes: 5
• Cutting Direction: Right Hand
• Finish: EXO Coated
• Helix Angle: 40 degrees
• Corner Radius: 0.03 inches
• Length of Cut: 1-1/4 inches
• Overall Length: 4 inches
