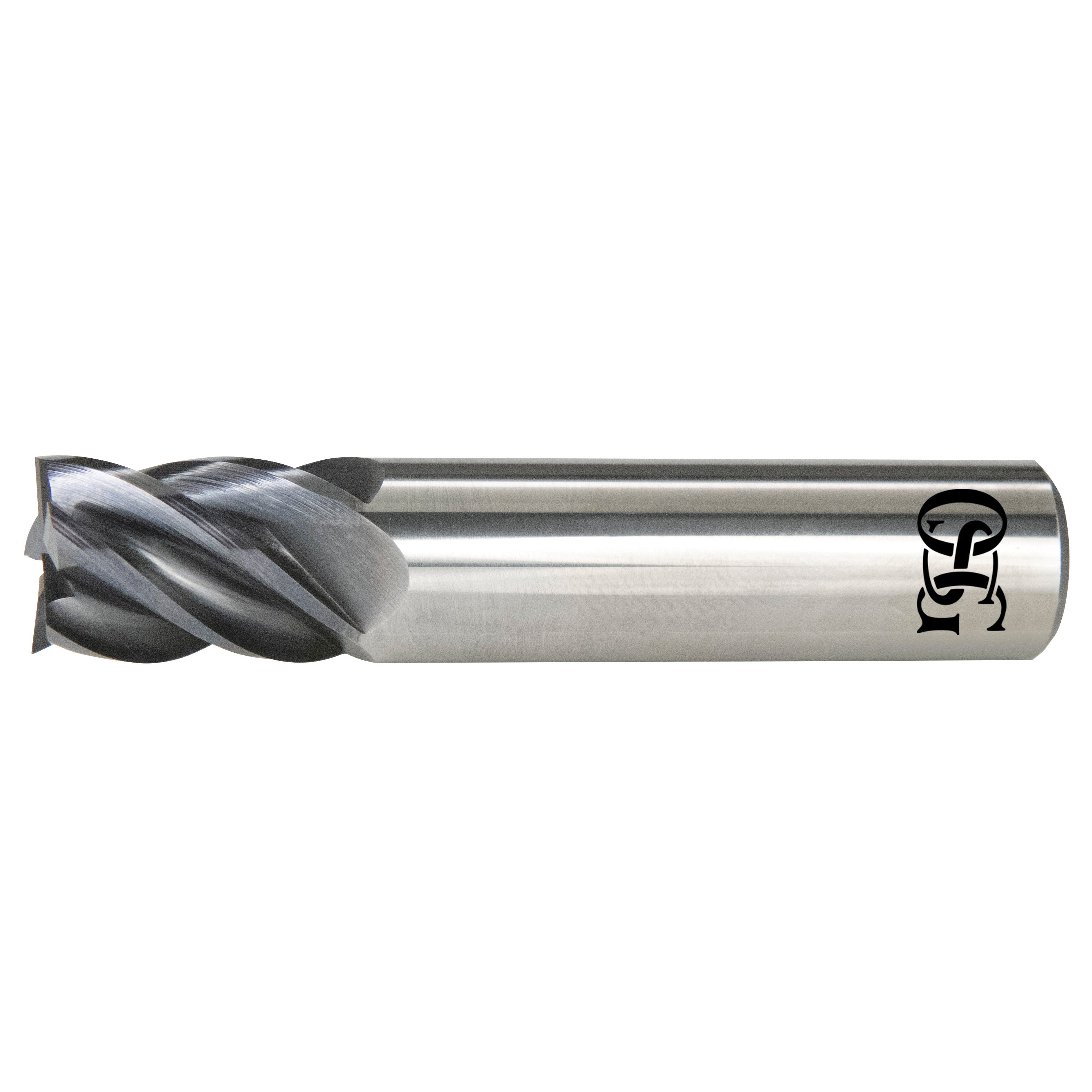

OSG VGM5-0134 OSG 1/2x1x3 R.03 5FL DUARISE VGM5 CARB ENDMILL

Product Description

The OSG VGM5-0134 is a carbide end mill designed for precision cutting. It features a diameter of one half inch and a corner radius of point zero three inches, making it suitable for various milling applications. The multi-flute design with five flutes allows for efficient chip removal and better surface finish.

• Corner radius shape for smoother cutting
• Carbide material for enhanced durability
• EXO coating for improved heat resistance

Product Highlights

This end mill is ideal for machining materials like steel and stainless steel. It maintains sharp edges for longer, reducing downtime for tool changes.

Product Information

Standard Information

• Brand: OSG
• MPN: VGM5-0134

Technical Specifications

• Material: Carbide
• Coating: EXO Coated
• Number of Flutes: 5
• Cutting Direction: Right Hand
• Corner Radius: 0.03 in
• Diameter: 1/2 in
• Shank Diameter: 1/2 in
• Overall Length: 3 in
• Length of Cut: 1 in
• Helix Angle: 40 deg
