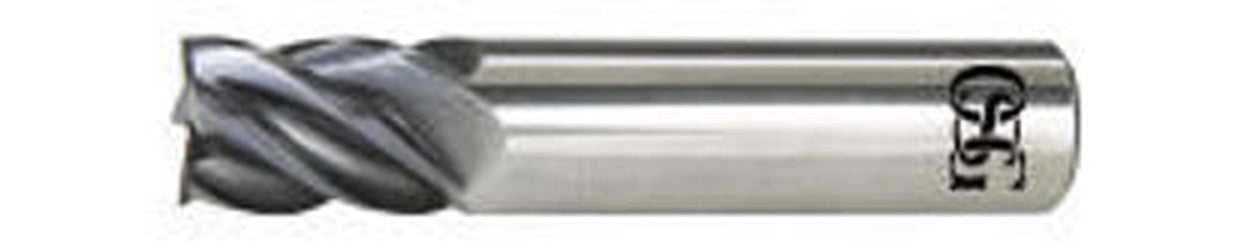

OSG VGM5-0062 1/4x3/4x2.5 R.060 5F EXO CARB DUARISE VGM5 ENDMILL CYL

Product Description

The OSG VGM5-0062 is a corner radius end mill designed for high performance in metalworking. This tool features a shank diameter of one-fourth inch and a diameter of one-fourth inch. The flute length measures three-fourths inch, and its overall length is two and a half inches. The coating is DUARISE, which enhances durability. This end mill has five flutes, allowing for efficient cutting and smooth chip removal.

• High performance center cutting
• Corner radius of 0.060 inches
• EXO coating for extended tool life

Product Highlights

The OSG VGM5-0062 end mill is suitable for dynamic milling in steel and stainless steel, making it ideal for various machining tasks.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.250 inches (6.350 mm)
• Shank Diameter: 0.250 inches (6.350 mm)
• Flute Length: 0.750 inches (19.050 mm)
• Overall Length: 2.500 inches (63.500 mm)
• Coating/Finish: DUARISE
• Number of Flutes: 5
• Corner Radius: 0.060 inches
• End/Corner Shape: Corner Radius
