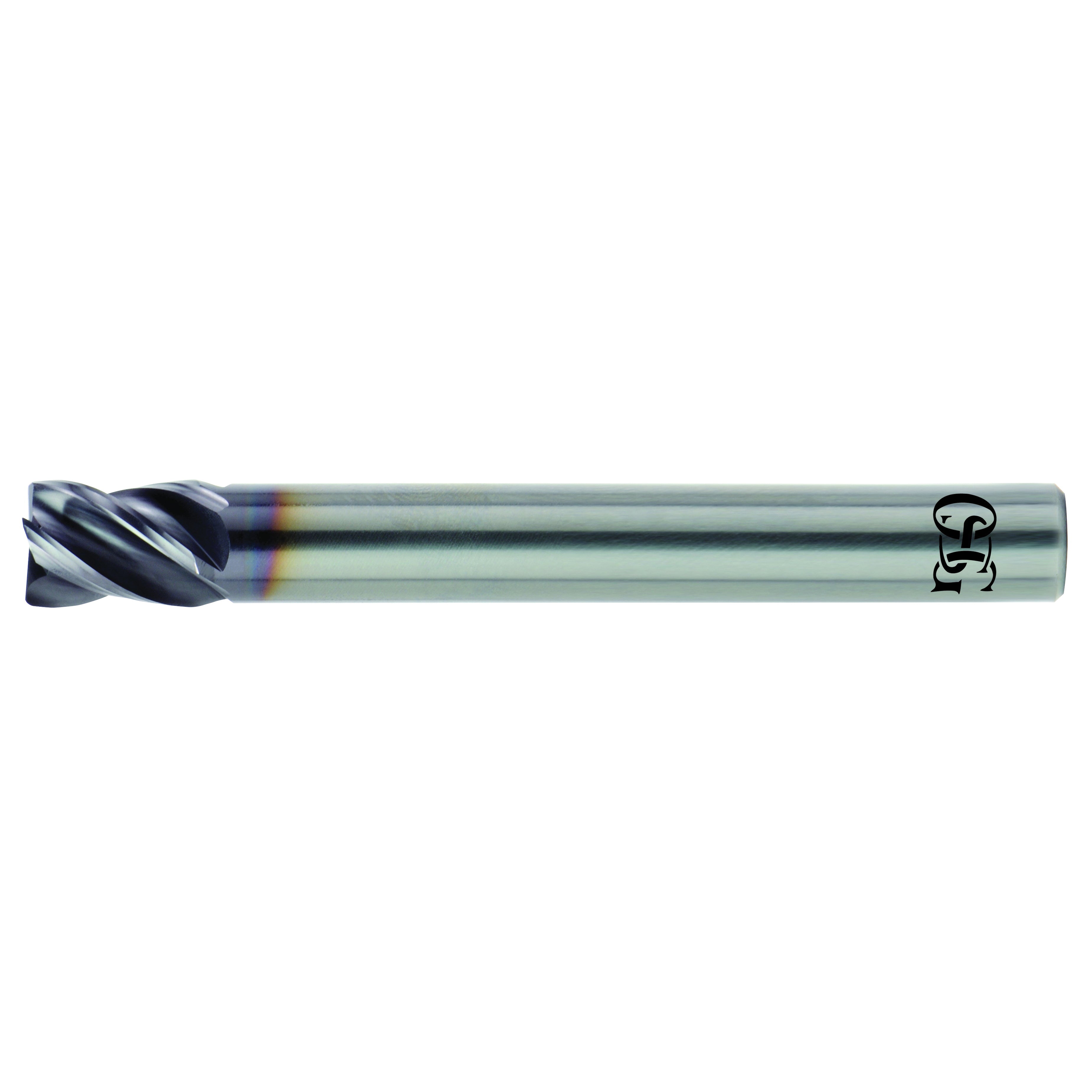

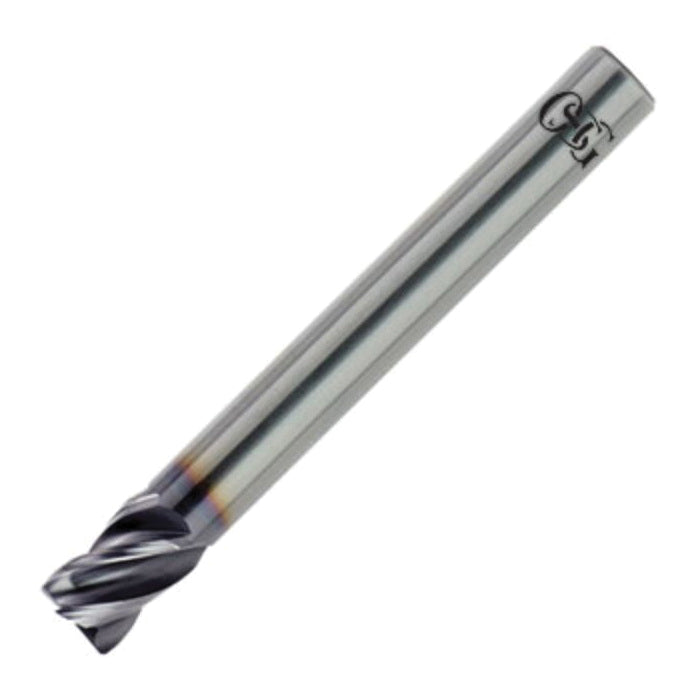

OSG VG464-2501 OSG 1/4 X 3/8 X 4 X 0.016CHF 4FL EXTENDED VGX-4

Product Description

The OSG VG464-2501 is a carbide end mill designed for high performance cutting. This tool features a unique corner radius of zero point zero one six inches, making it suitable for precise milling applications. The overall length of the cutter is four inches, with a flute length of three eighths inches and a shank diameter of one fourth inch. Ideal for use in milling operations that require stability and precision.

• High performance carbide material
• TiAlN coating for enhanced wear resistance
• Designed for aggressive milling with reduced vibration

Product Highlights

This end mill is engineered for high metal removal rates and extended tool life through its innovative design.

Product Information

Standard Information

• Brand: OSG
• Part #: OSGVG4642501

Technical Specifications

• Material: Carbide
• Coating/Finish: TiAlN
• Diameter: 0.2500 inches (6.350 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Flute Length: 0.3750 inches (3/8 inch)
• Overall Length: 4.0000 inches (101.600 mm)
• Number of Flutes: 4
• End/Corner Shape: Corner Radius
• Corner Radius: 0.0160 inches
