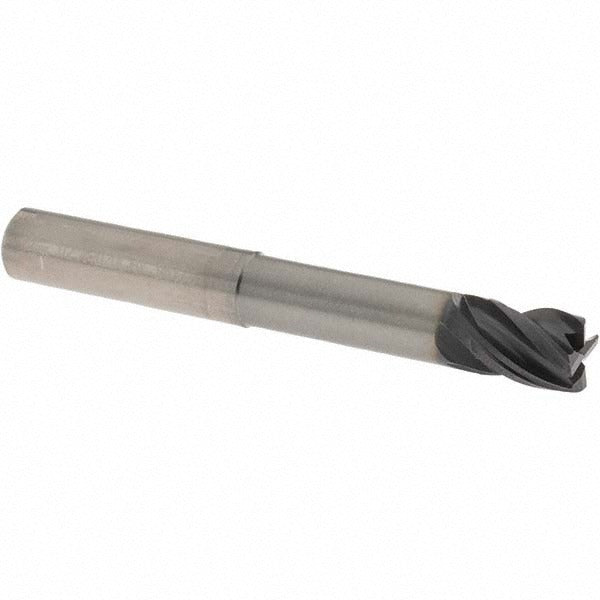

Osg VG446-5003 Corner Chamfer End Mill 0.5in 4 Flute Tialn

Product Description

The OSG VG446-5003 is a solid carbide corner chamfer end mill designed for high-performance metal removal in demanding machining environments. Built on OSG's VG446 series platform, this single-end tool features a 0.5-inch mill diameter, 4 flutes with a variable flute type and 35-degree medium helix angle, and a 0.02-inch chamfer width at a 45-degree chamfer angle. The TiAlN PVD coating provides thermal resistance and wear protection during aggressive cuts in ferrous and difficult-to-machine materials. With an extended reach design and Weldon flat shank, this tool is suited for setups requiring additional projection from the holder without sacrificing rigidity.

This end mill is intended for use in CNC machining centers and manual mills where shouldering, slotting, ramp-down entry, helical interpolation, drill milling, and plunging or recessing operations are required. It is rated for primary workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The extended reach of 2.25 inches and neck diameter of 0.47 inches allow access to deeper features while the 0.625-inch length of cut handles a range of depth-of-cut requirements in both roughing and finishing passes.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• TiAlN PVD coating for thermal protection and extended tool life in ferrous and exotic alloys
• Variable index, 4-flute geometry reduces chatter during slotting and side milling
• 45-degree chamfer angle with 0.02-inch chamfer width for consistent edge preparation
• Weldon flat shank with extended reach supports secure clamping and deep-feature access
• Centercutting capable, supporting plunge entry and drill-mill operations

Compatibility

Designed for use in CNC machining centers and mills accepting a 0.5-inch Weldon flat shank. Rated for steel, stainless steel, cast iron, superalloys, titanium, and hard materials per OSG material codes P, M, K, S, and H.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the Weldon flat shank in a properly sized end mill holder or collet before operation and confirm runout is within acceptable tolerance before cutting. Verify spindle speed, feed rate, and depth of cut against OSG published cutting data for the target workpiece material before engaging the cut. Do not exceed the rated reach or apply side loads beyond the tool geometry's intended envelope.
