OSG VG441-3753, 3/8 Variable Index Square-End End Mill, 7/8 L.O.C., 4-Flute, TiALN Coated, Weldon Shank, Series VG441

Product Description

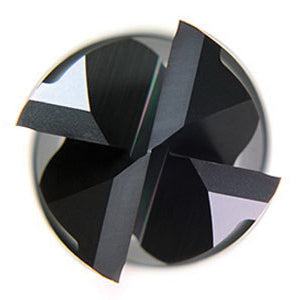

The OSG VG441-3753 is a carbide square end mill designed for high-performance milling tasks. Measuring three eighths of an inch in diameter with a length of cut of seven eighths of an inch, this end mill features a four-flute design and a TiALN coating for improved wear resistance. Its variable index geometry reduces vibrations, allowing for aggressive cutting while enhancing tool life.

• Material: Carbide
• Coating: TiALN
• Flute Count: Four

Product Highlights

This tool is ideal for cutting and contouring molds for plastic parts and automotive applications.

Product Information

Standard Information

• Brand: OSG
• Part Number: VG441-3753

Technical Specifications

• Diameter: 0.3750 (3/8)
• Shank Diameter: 0.3750 (3/8)
• Overall Length: 2.5000 (2 1/2)
• Flute Length: 0.8750 (7/8)
• End Shape: Square End
• Helix Angle: 35 degrees
• Cutting Direction: Right Hand
• Flute Type: Spiral
