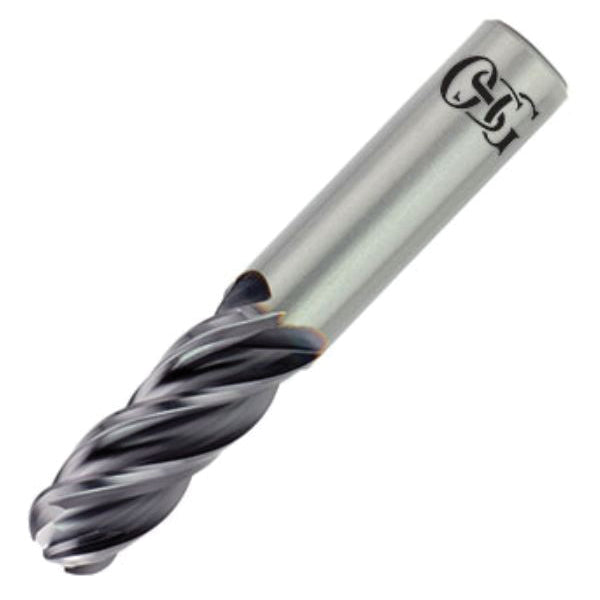

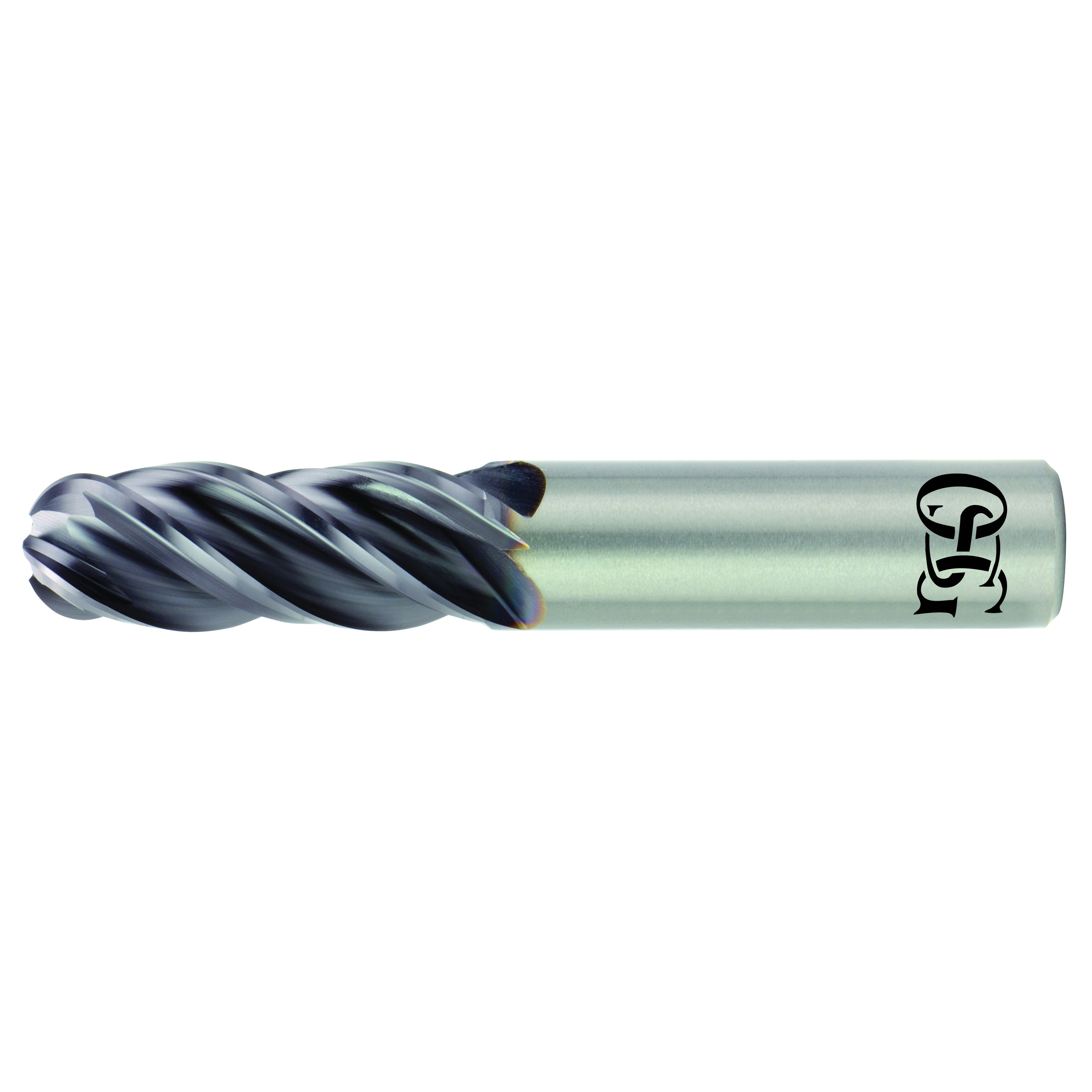

OSG VG441-1875-BN OSG 3/16 X 5/8 X 2-1/4 VGX-4 BALL NOSE

Product Description

The OSG VG441-1875-BN is a high-performance ball nose end mill designed for precision milling tasks. This cutting tool is made from carbide and features a titanium aluminum nitride (TiAlN) coating for enhanced durability. It has a cutter diameter of three-sixteenths of an inch and an overall length of two and one-quarter inches. Suitable for various milling applications, the product balances rigidity and cutting effectiveness.

• Constructed from carbide for longevity.
• TiAlN coating enhances wear resistance.
• Features four flutes for efficient chip removal.

Product Highlights

This end mill is ideal for machining materials where precision and tool longevity are required. The variable index flute design minimizes vibration, allowing for smoother operation during detailed cuts.

Product Information

Standard Information

• Brand: OSG
• Part #: OSG-VG441-1875-BN

Technical Specifications

• Diameter: 0.1875 (4.763 mm)
• Shank Diameter: 0.1875 (4.763 mm)
• Flute Length: 0.6250 (15.875 mm)
• Overall Length: 2.2500 (57.150 mm)
• # of Flutes: 4
• End/Corner Shape: Ball End
• Coating/Finish: TiAlN
• Helix Angle: 35 deg
