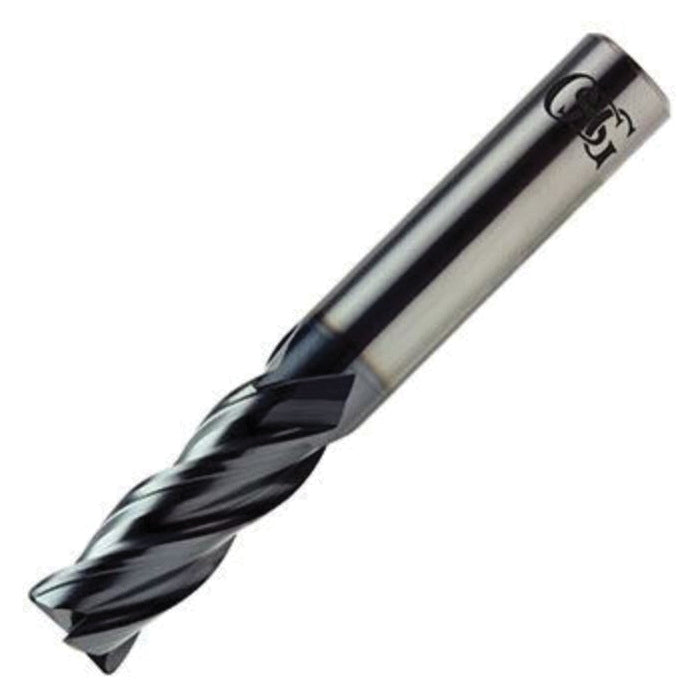

OSG VG436-3750 OSG 3/8 X 1/2 4FL VGX 0.020 Chamfer W/ Weldon

Product Description

The OSG VG436-3750 features a carbide construction designed for durability and efficiency. This end mill has a cutter diameter of three eighths inches with a corner radius of zero point zero two inches. It is built with four flutes that enhance cutting performance. Ideal for precision milling tasks, its chamfered corner design allows for effective finishing operations. The TiALN coating ensures better wear resistance, making it suitable for high-temperature milling conditions.

• High-performance end mill
• Carbide construction with TiALN coating
• Four flutes for enhanced metal removal

Product Highlights

The OSG VG436-3750 is suitable for metalworking tasks requiring accuracy and efficiency, particularly in milling operations.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Cutter Diameter: 0.3750 inches (3/8 inch)
• Shank Diameter: 0.3750 inches (3/8 inch)
• Flute Length: 0.5000 inches
• Overall Length: 2.0000 inches
• Number of Flutes: 4
• Corner Radius: 0.0200 inches
• End/Corner Shape: Chamfered Corner
• Coating/Finish: TiALN
