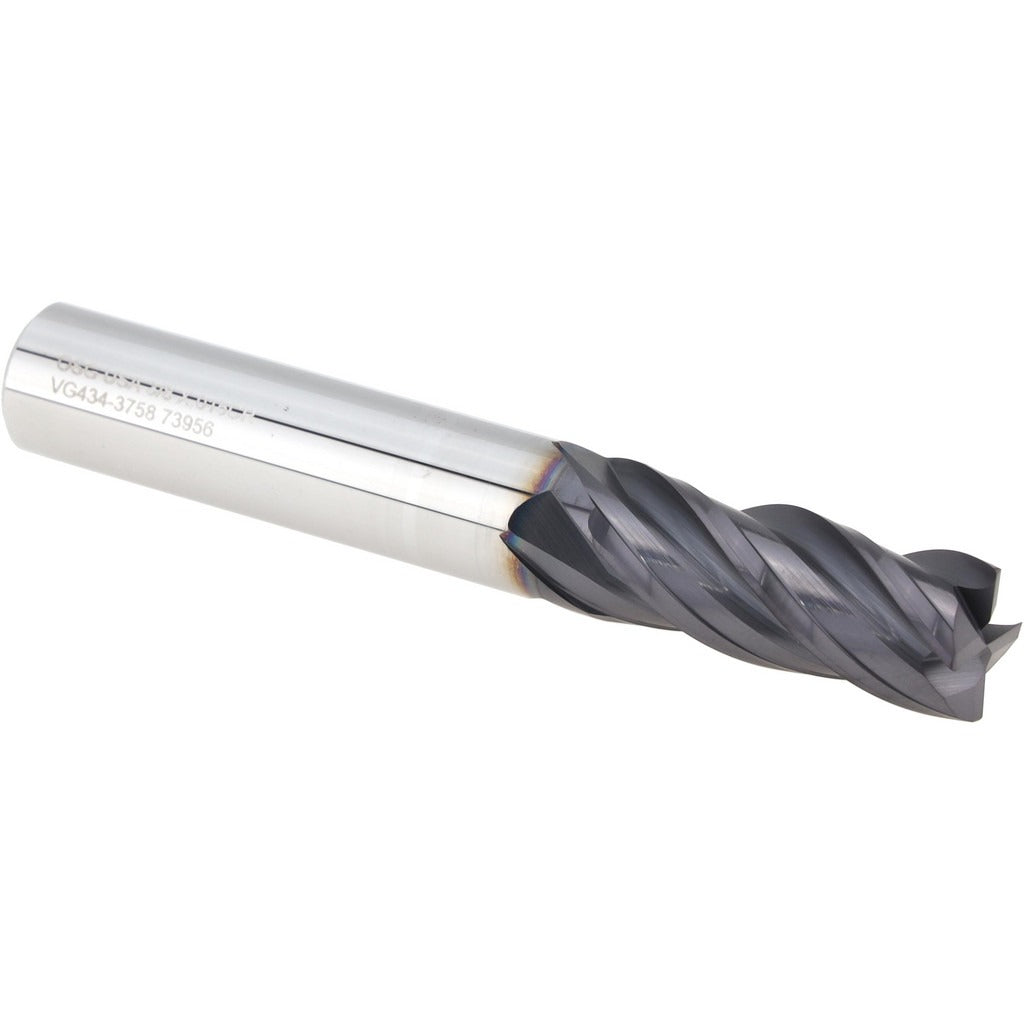

Osg VG434-3758 Corner Radius End Mill 3/8 in 4 Flute Tialn

Product Description

The OSG VG434-3758 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. It features a 3/8 inch diameter, a 0.0150 inch corner radius, and four flutes with a 35-degree helix angle. The TiAlN PVD coating provides thermal resistance and wear protection, making this end mill well suited for roughing and finishing operations in a single tool. The Weldon flat shank ensures secure tool holding in compatible toolholders. This is a single-end, center-cutting design with right-hand flute direction and right-hand cutting direction.

The VG434-3758 is intended for use in CNC machining centers and milling operations targeting ferrous and exotic alloys. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The regular-length flute configuration and 7/8 inch length of cut make it a practical choice for general-purpose profiling, contouring, and pocket milling where corner geometry must be maintained. The variable index geometry helps reduce harmonic chatter during aggressive cuts.

Key Features

• 0.0150 inch corner radius protects cutting edges and reduces stress concentration at part corners
• TiAlN PVD coating delivers elevated heat resistance for dry and semi-dry cutting in hard and abrasive materials
• Four-flute, variable index geometry reduces chatter and supports both roughing and finishing in a single pass
• 35-degree medium helix angle balances chip evacuation with cutting stability in ferrous workpieces
• Center-cutting design allows plunge entry without a pre-drilled hole
• Weldon flat shank provides positive drive and resists pullout in high-torque applications

Compatibility

Designed for use with standard Weldon flat toolholders. Rated for primary workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials (ISO material codes P, M, K, S, H). Part of the OSG VG434 series.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the Weldon flat fully in the toolholder bore and tighten set screws to the toolholder manufacturer's specified torque before operation. Verify runout with a dial indicator after installation to confirm proper seating before cutting.
