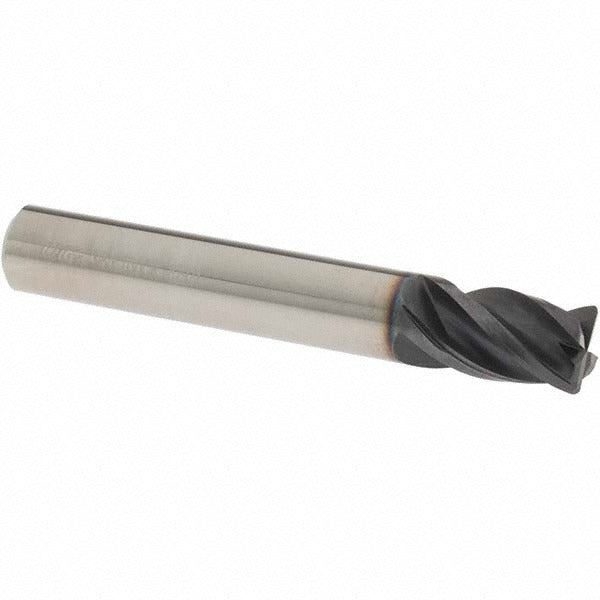

Osg VG434-3754 Corner Radius End Mill 3/8 in 4 Flute Tialn

Product Description

The OSG VG434-3754 is a solid carbide corner radius end mill engineered for high-performance milling in demanding materials. It features a 3/8-inch diameter, a 0.03-inch corner radius, and four flutes with a right-hand spiral and right-hand cutting direction. The tool carries a PVD-applied TiAlN coating that extends tool life by resisting heat and wear at elevated cutting speeds. Micrograin carbide construction provides the hardness and edge retention needed for consistent results in steel, stainless steel, cast iron, superalloys, titanium, and hard materials. This end mill is centercutting and suited for both roughing and finishing operations.

The VG434-3754 is designed for use in vertical and horizontal machining centers where a Weldon flat shank toolholder is employed. The stub-length flute geometry and 1/2-inch length of cut make it well suited for slotting, profiling, and shoulder milling in close-tolerance applications on ferrous and exotic alloys. The variable index geometry helps reduce chatter during aggressive cuts. It is a single-end tool intended for professional CNC machining environments.

Key Features

• Solid micrograin carbide construction for hardness and wear resistance
• TiAlN PVD coating for heat resistance and extended tool life in hard materials
• 0.03-inch corner radius reduces stress concentration and improves corner durability
• Centercutting design allows plunge entry into workpiece
• Variable index flute spacing reduces vibration and chatter
• Weldon flat shank for secure toolholder engagement
• Suited for both roughing and finishing passes in a single tool

Compatibility

Compatible with standard Weldon flat shank toolholders accepting a 3/8-inch shank. Designed for machining steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Part of the OSG VG434 series.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Power down and lock out the spindle before installing or removing the end mill. Seat the Weldon flat shank fully into the toolholder and tighten the set screw against the flat per toolholder manufacturer guidelines. Verify runout with a dial indicator before beginning a cut, as excessive runout will accelerate tool wear and degrade surface finish.
