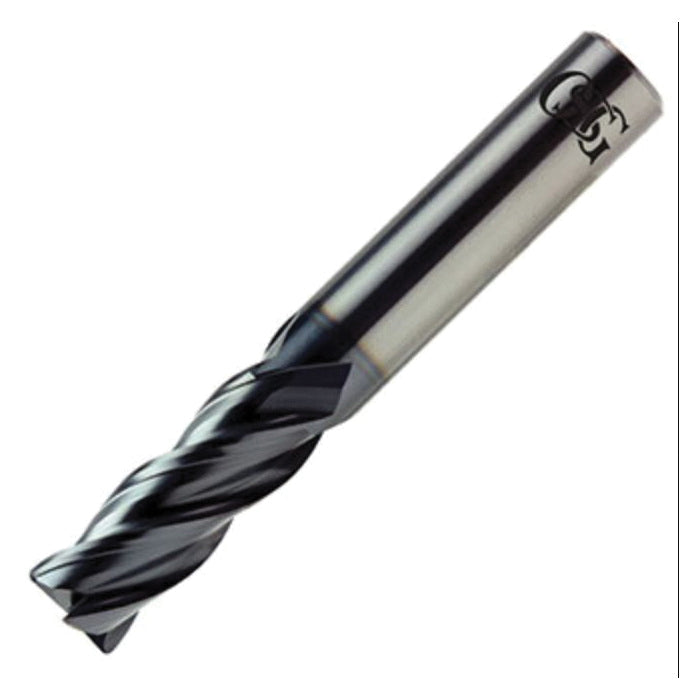

OSG VG434-2502 HY-PRO CARBIDE 1/4X3/4 4FL VG .015CR TIALN

Product Description

The OSG HY-PRO CARBIDE 1/4X3/4 4FL VG .015CR TIALN is a high-quality carbide end mill designed for precision cutting. It features a corner radius that enhances its performance and durability. The product is suitable for various milling applications in metalworking.

• Material: Carbide
• Number of flutes: 4
• Coating: TiALN for enhanced wear resistance

Product Highlights

This end mill is ideal for high-performance applications that require precise cuts and reduced vibration. The design allows for effective metal removal rates, making it suitable for both roughing and finishing operations.

Product Information

Standard Information

• Brand: OSG
• Part Number: VG434-2502

Technical Specifications

• Diameter: 0.2500 inches (6.350 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Flute Length: 0.7500 inches (19.050 mm)
• Overall Length: 2.5000 inches (63.500 mm)
• Corner Radius: 0.0150 inches
• Flute Type: Spiral
• Helix Angle: 35 degrees
• Cutting Direction: Right Hand
