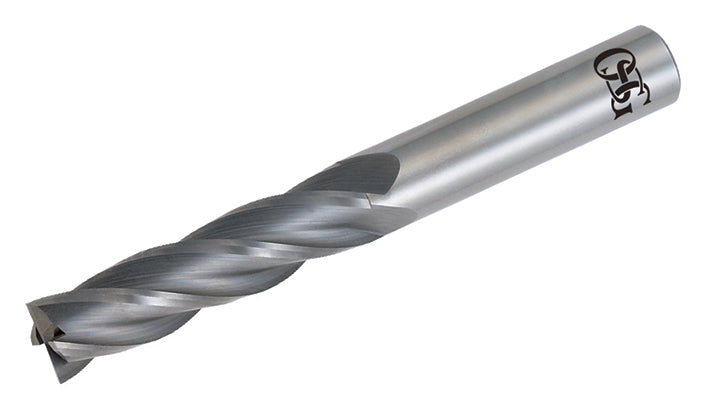

OSG OSGTA-464187511 Square End Mill Center Cutting 4.76 mm 464-187511

Product Description

OSG 464 Series Square End Mill, MPN OSGTA-464187511, is suitable for general machining applications. This end mill features a cutter diameter of four point seven six millimeters, an overall length of fifty-seven point fifteen millimeters, and a maximum depth of cut of nineteen point zero five millimeters. It has four spiral flutes, a right-hand cutting direction, and a shank diameter of four point seven six millimeters.

• Micrograin carbide construction enhances durability.
• Spiral flute design aids efficient chip removal.
• Compatible with various milling machines.

Product Highlights

This end mill supports precise machining and offers reliable performance in both hardened and soft materials.

Product Information

Standard Information

• Brand: OSG
• MPN: OSGTA-464187511

Technical Specifications

• Cutting Direction: Right Hand
• Flute Type: Spiral
• Helix Angle: 30 deg
• Material: Carbide
• Series: 464
• Type: Center Cutting
• Cutter Diameter: 4.76 mm
• Number of Flutes: 4
• Shank Diameter: 4.76 mm
• Overall Length: 57.15 mm
• Finish: TiALN
