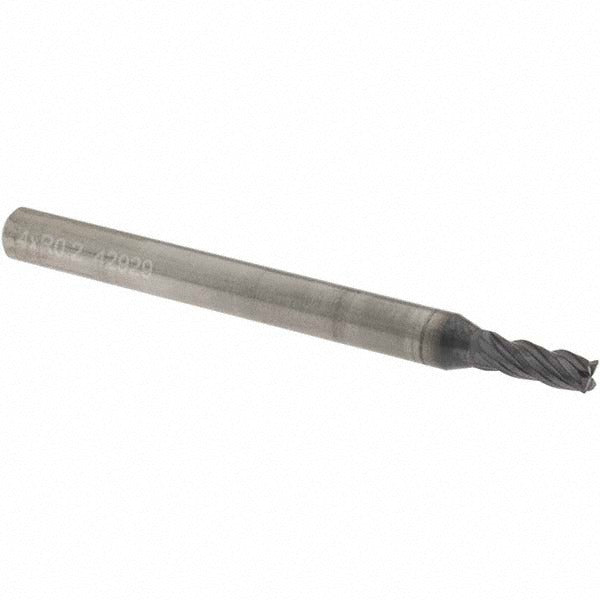

Osg HP434-1575 Corner Radius End Mill 4mm 4-flute Tialn

Product Description

The OSG HP434-1575 is a solid carbide corner radius end mill designed for high-performance milling across a broad range of workpiece materials. It features a 4 mm cutting diameter with a 0.2 mm corner radius, a 4-flute geometry, and a TiAlN PVD coating that supports elevated cutting temperatures and extends tool life. The 11 mm length of cut pairs with a 6 mm straight-cylindrical shank, giving the tool a 70 mm overall length. Right-hand cut and right-hand flute direction are standard. The centercutting design allows plunge entry, and the normal pitch, medium helix spiral flute configuration suits both roughing and finishing passes in a single setup.

The HP434-1575 is suited for machining steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. It fits toolholder-based setups on CNC machining centers where tight tolerances and consistent corner geometry are required. The regular-length, single-end configuration makes it a practical general-purpose choice for shops running mixed material schedules without changing tooling between roughing and finishing operations.

Key Features

• TiAlN PVD coating provides heat resistance and extends tool life in ferrous and hard material applications
• 0.2 mm corner radius reduces stress concentration at the cutting edge and improves surface finish
• Centercutting geometry enables direct plunge milling without a pre-drilled entry point
• 4-flute, right-hand spiral design supports both roughing and finishing material removal
• Straight-cylindrical shank with h6 tolerance ensures consistent runout in standard toolholders
• Mill diameter tolerance of 0.00 to -0.04 mm meets precision fitment requirements

Compatibility

Designed for use with standard toolholders on CNC machining centers. Compatible workpiece materials include steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. Part of the OSG HP434 series.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer's clamping specifications. Ensure the spindle is fully stopped and the machine is in a safe state before inserting or removing the end mill. Confirm shank seating depth and runout with a dial indicator before beginning a cut. Do not exceed the recommended depth of cut for the workpiece material being machined.
