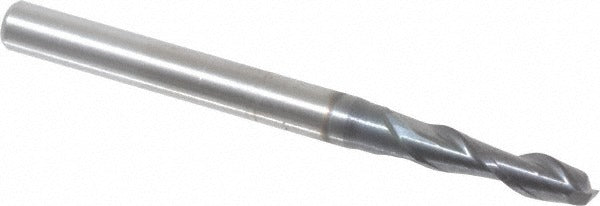

Osg HP421-1094 Square End Mill 7/64 in 2 Flute Carbide

Product Description

The OSG HP421-1094 is a solid carbide square end mill designed for precision milling in ferrous and non-ferrous materials. Part of the HP421 series, it features a TiAlN coating and a 35-degree helix angle on a spiral flute geometry. The 7/64 inch (0.1094 inch) cutting diameter pairs with a 3/8 inch length of cut and a 1/8 inch shank diameter, making it well-suited for tight-tolerance slotting, profiling, and pocketing operations on CNC machining centers and manual mills. The micrograin carbide substrate supports harder workpiece materials and higher cutting speeds than standard carbide grades. Machinists and toolroom technicians are the primary users.

This end mill is intended for precision cutting operations in job shop, production, and toolroom environments. The centercutting capability allows direct plunge entry, broadening its use in milling and drilling combined operations. The right-hand cut and right-hand flute configuration is standard for conventional and climb milling on vertical machining centers. Its compact 1-1/2 inch overall length suits short-reach applications where rigidity is a priority and tool deflection must be minimized.

Key Features

• TiAlN finish for improved heat resistance and tool life in harder materials
• 35-degree helix angle on spiral flute for efficient chip evacuation
• Centercutting geometry allows direct plunge entry without a pre-drilled hole
• Micrograin solid carbide substrate supports higher surface footage and harder workpieces
• Right-hand cut, right-hand flute — standard configuration for most CNC and manual setups
• Compact 1-1/2 inch OAL minimizes deflection in short-reach applications

Compatibility

Designed for use as an HP421 series solid carbide square end mill; compatible with standard 1/8 inch collets and end mill holders on CNC machining centers, manual knee mills, and similar equipment accepting straight-shank tooling.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is powered down or in a safe locked state before changing tooling. Secure the shank fully within the collet or holder to the recommended engagement depth — insufficient engagement increases deflection and risk of tool pull-out. Verify runout after installation before beginning a production cut.
