OSG HP258-2500 OSG 1/4 8XD CARB/EGIAS COOLANT DRILL 106 mm

Product Description

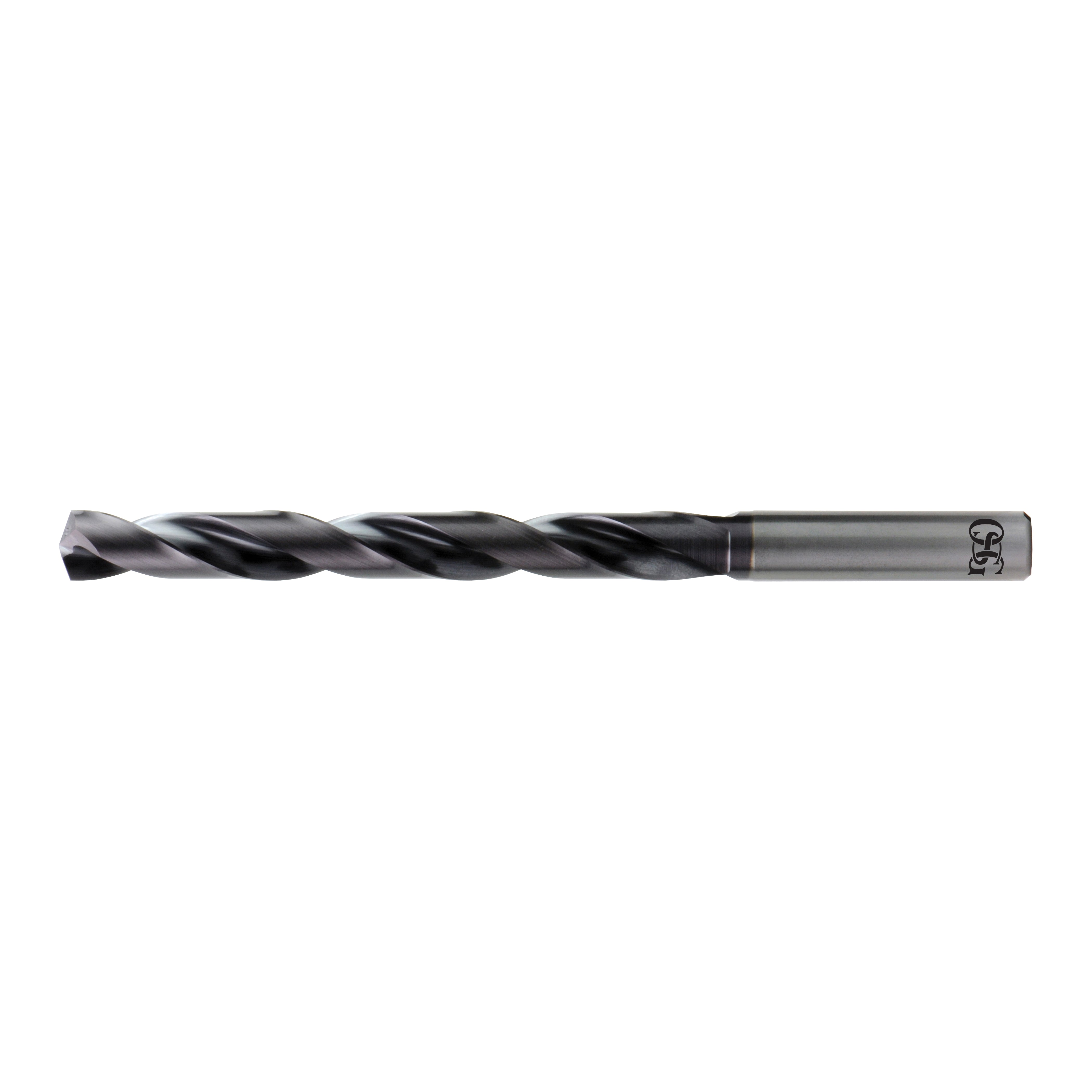

The OSG HP258-2500 is a carbide drill designed for precision and durability. It features a one-fourth inch diameter and is suitable for deep drilling applications up to eight times its diameter. This model is particularly effective in various materials including high carbon steel, stainless steel, and aluminum.

• Diameter: 1/4 inch (6.350 mm)
• Overall Length: 106 mm (4.1732 inches)
• Flute Length: 66 mm (2.5984 inches)

Product Highlights

Designed for efficient and fast drilling, this drill bit is equipped with EgiAs coating for improved wear resistance. It features two spiral flutes that facilitate better chip evacuation.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Shank Diameter: 8.000 mm (0.3150 inches)
• Flute Type: Spiral

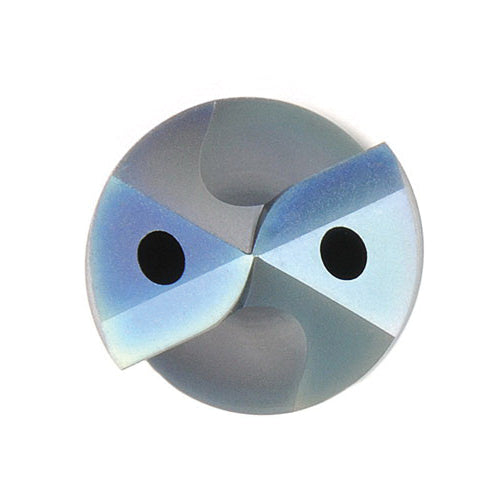

• Point Type: R-Thinning
• Point Angle: 140 degrees
• Cutting Depth: 8XD
• Cutting Direction: Right Hand
• Applicable Materials: Low and medium carbon steels, stainless steel, cast iron, and titanium
