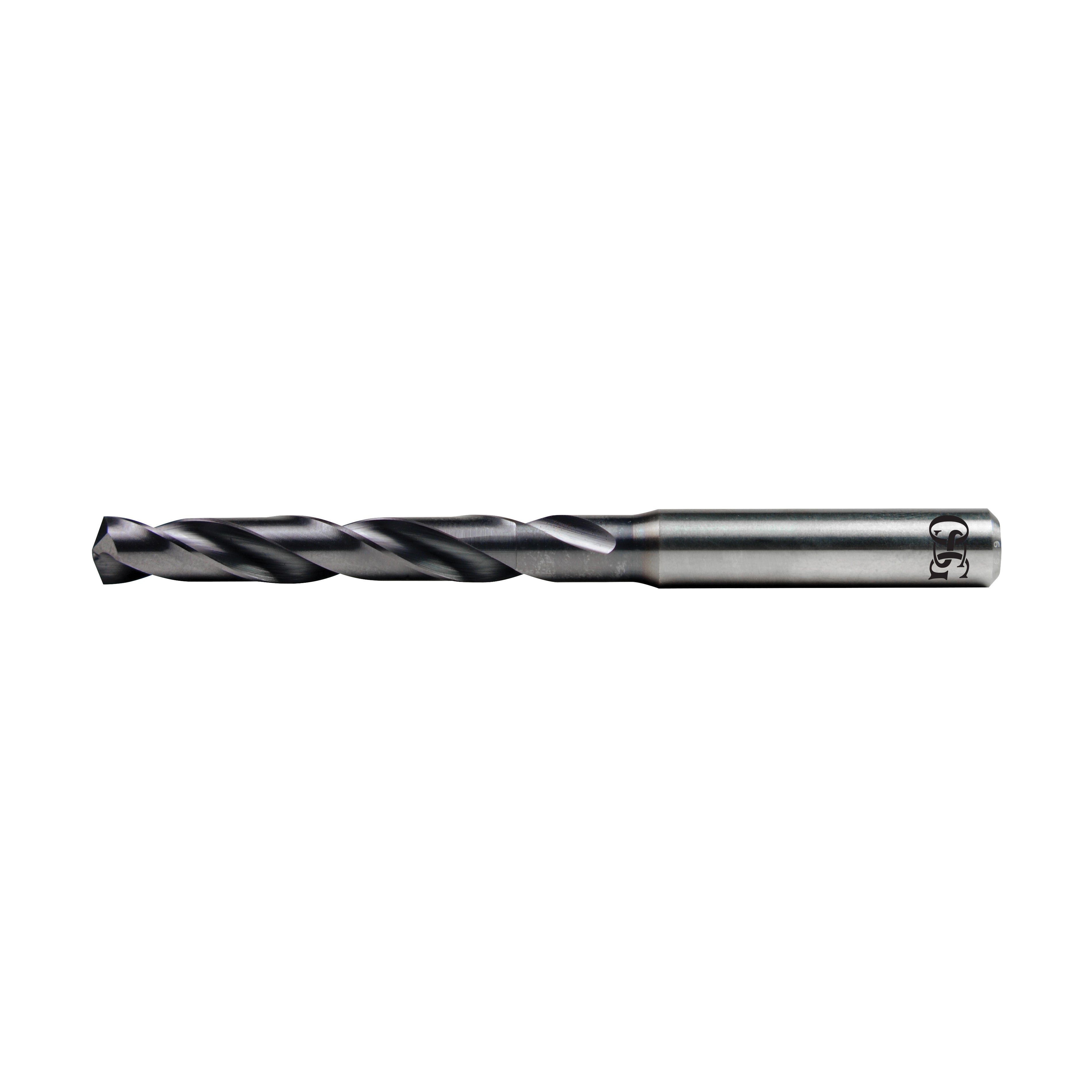

OSG HP255-5311 OSG 17/32 5XD Carb/Egias Hy-Pro Coolant Drill 77x124 M14sh

Product Description

The OSG 17/32 5XD Carb/Egias Hy-Pro Coolant Drill with MPN HP255-5311 features a carbide construction designed for high performance. It is suited for applications requiring precision drilling in various materials.

• Diameter measures seventeen thirty-seconds of an inch.
• Flute length is seventy-seven millimeters.
• Overall length of the drill is one hundred twenty-four millimeters.

Product Highlights

This drill is suitable for use in low carbon steel, medium carbon steel, and several alloys including titanium. Its unique coating enhances durability and performance.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 17/32 (0.5313)
• Shank Diameter: 14.000 mm (0.5512)
• Flute Length: 77.000 mm (3.0315)
• Overall Length: 124.000 mm (4.8819)
• Point Type: R-Thinning
• Number of Flutes: 2
• Point Angle: 140 deg
• Applicable Materials: 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, 1065 High Carbon Steel, 4140/4340 Alloy Steel, 17-4 PH Stainless Steel, Cast Iron
