OSG HP253-4689 OSG 15/32 HP CARB OH DRILL 3D Replacement MPN

Product Description

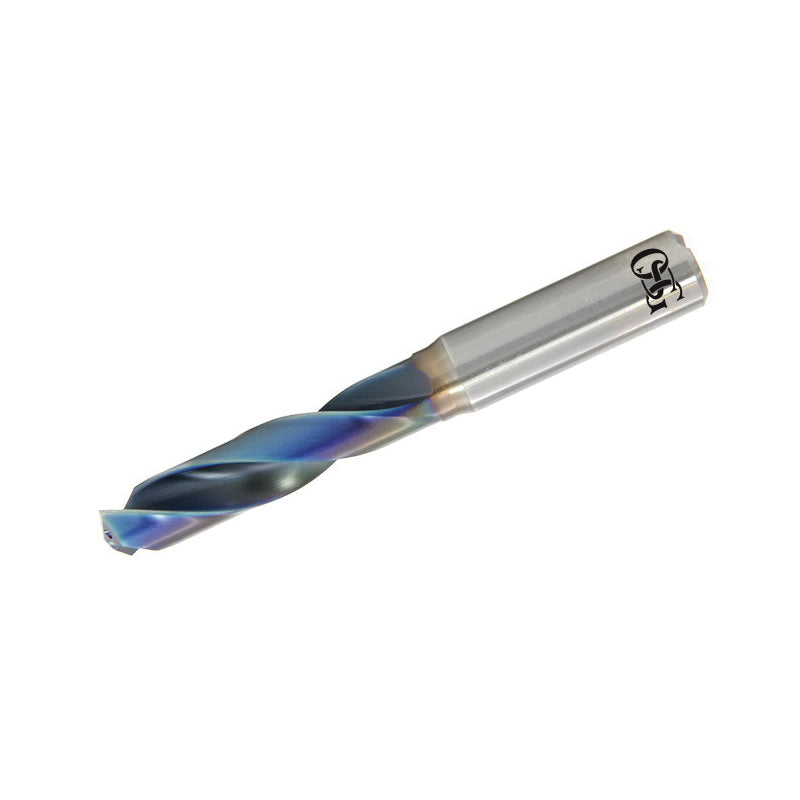

The OSG 15/32 HP CARB OH DRILL 3D, MPN HP253-4689, is designed for precision drilling applications. Made of carbide, this drill bit features a diameter of fifteen thirty-seconds inches. It has a shank diameter of twelve millimeters and a flute length of fifty-five millimeters. The overall length of the drill is one hundred two millimeters.

• Carbide material for durability
• Right-hand cutting direction
• Two-flute spiral design for efficient chip removal

Product Highlights

This drill bit excels in various materials, including cast iron and stainless steel. The design allows for effective cooling during operation, enhancing tool life and performance.

Product Information

Standard Information

• Brand: OSG
• Part Number: HP253-4689

Technical Specifications

• Diameter: 0.4688 inches (15/32)
• Shank Diameter: 0.4724 inches (12 mm)
• Flute Length: 55 mm
• Overall Length: 102 mm
• Cutting Depth: 3 times diameter
• Flute Type: Spiral

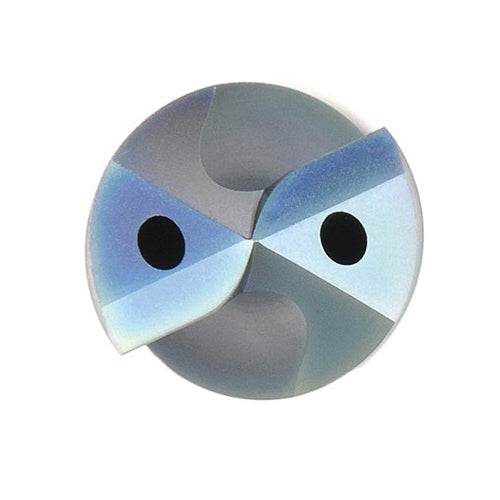

• Point Type: R-Thinning
• Cutting Direction: Right Hand
