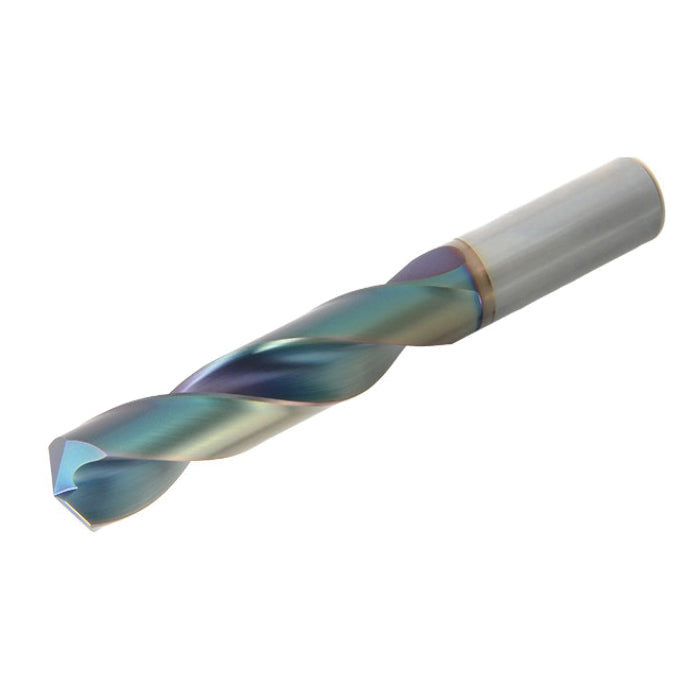

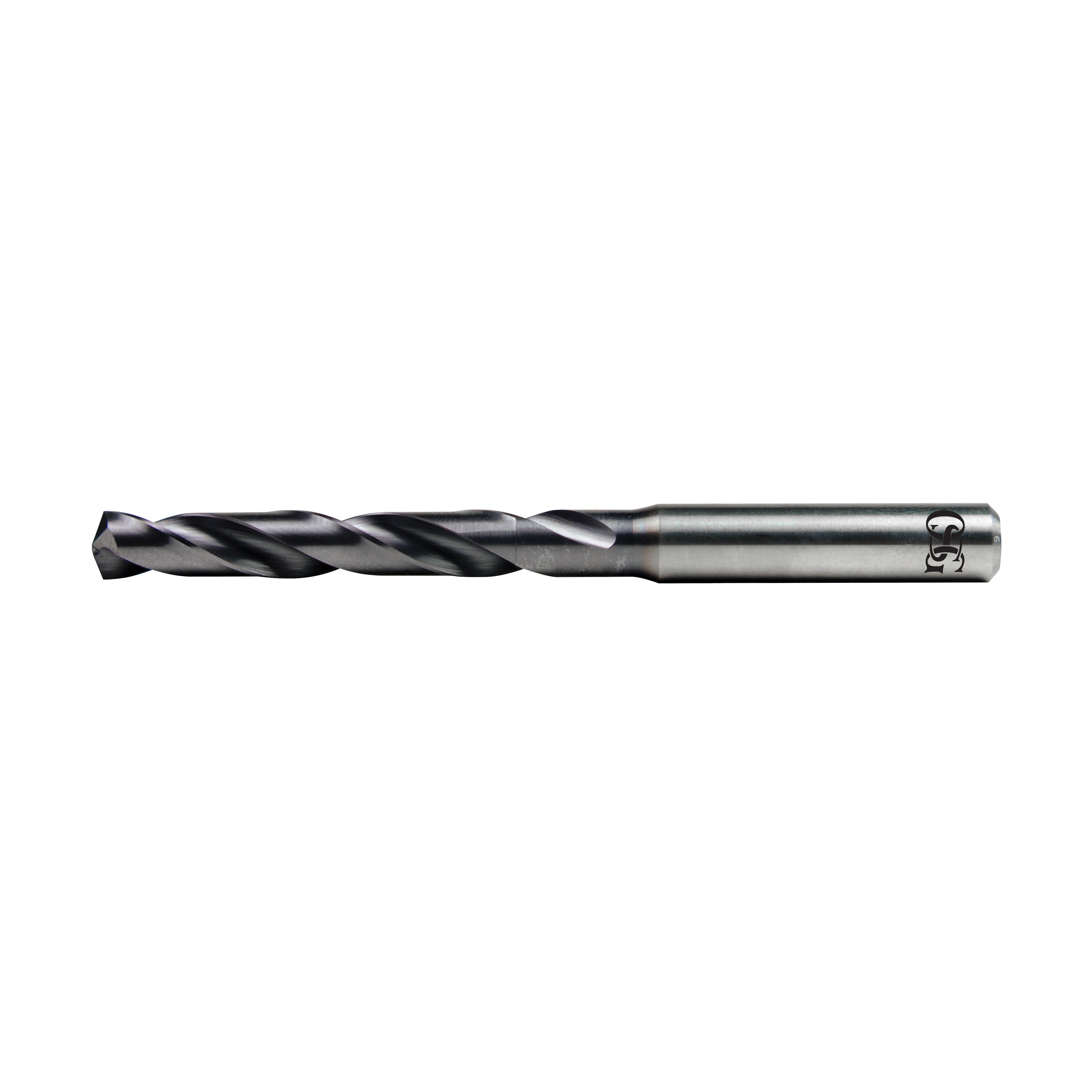

OSG HP245-3780 OSG 9.60 MM HP CARB DRILL 5D

Product Description

The OSG HP245-3780 is a solid carbide drill designed for high-performance drilling tasks. This drill has a diameter of nine point six millimeters and a flute length of sixty-one millimeters. It is suitable for various materials including low to high carbon steel and cast iron. The drill features a straight shank and can effectively handle depths up to five times its diameter.

• High-performance design for various drilling applications.
• Durable carbide material for extended tool life.
• Straight shank for compatibility with standard drill chucks.

Product Highlights

This drill is crafted for durability and performance, making it an excellent choice for tradespeople needing reliable tools.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 9.600 mm (0.3780)
• Shank Diameter: 10.000 mm (0.3937)
• Flute Length: 61.000 mm (2.4016)
• Overall Length: 103.000 mm (4.0551)
• Number of Flutes: 2

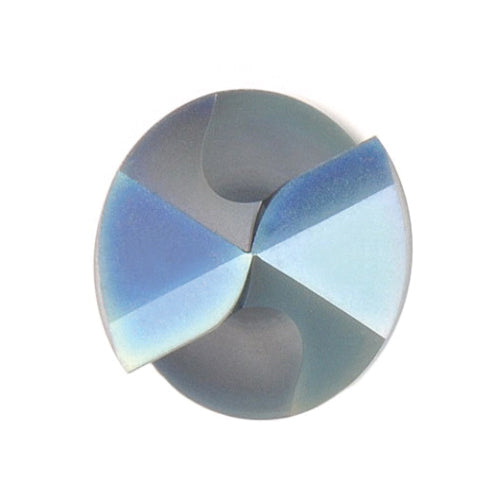

• Point Angle: 140 degrees
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
