OSG HP245-3280 OSG 21/64 HP Carb Drill 5D

Product Description

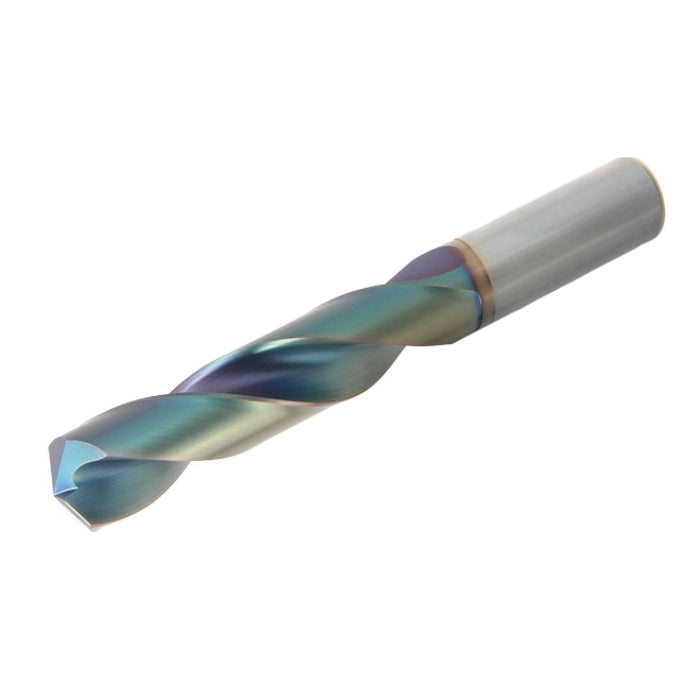

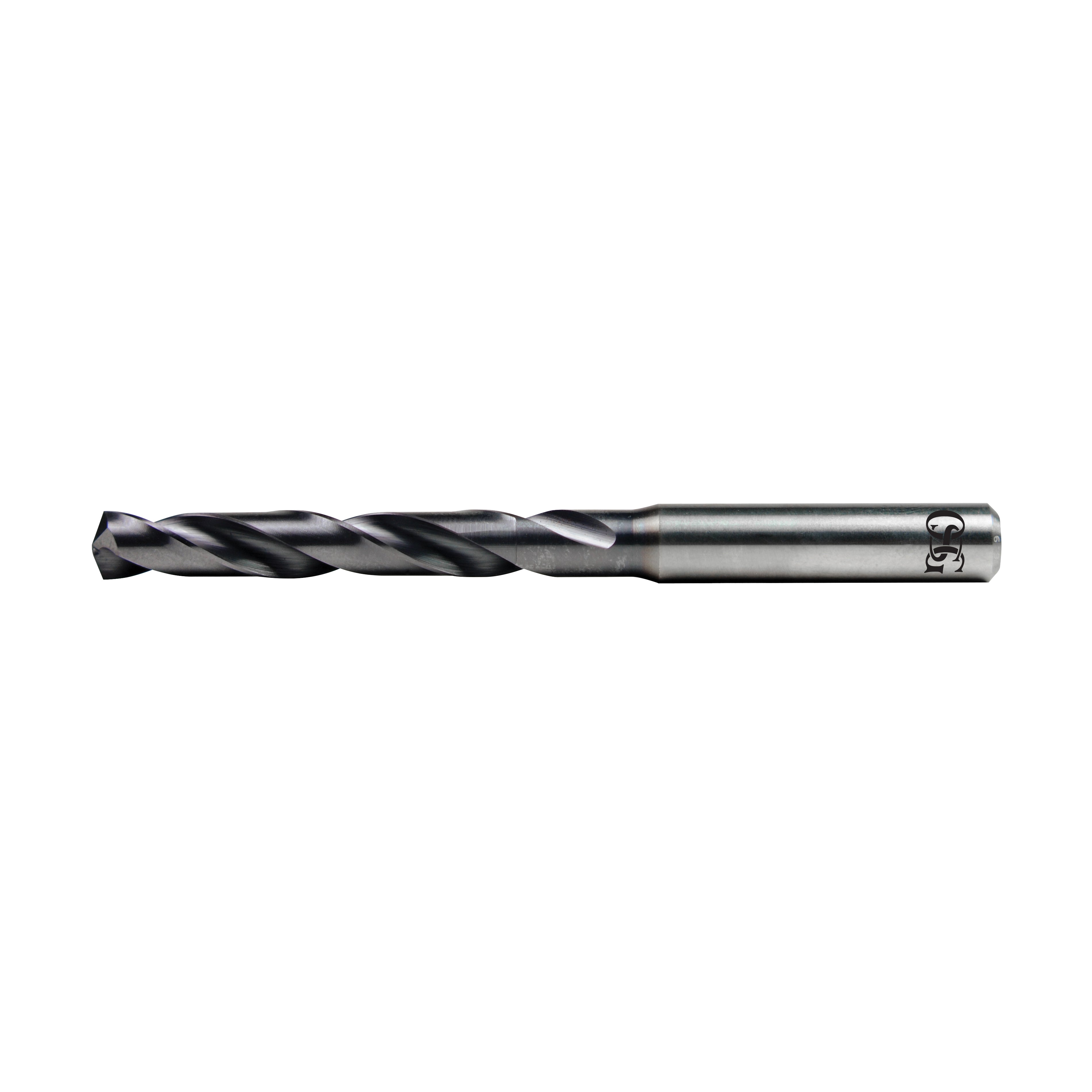

OSG HP245-3280 is a carbide drill designed for various drilling applications. The diameter is twenty-one sixty-fourths inches and has a shank diameter of ten mm. This drill features a flute length of sixty-one mm and an overall length of one hundred three mm. It is suitable for use in drilling through hard materials with precision.

• Material: Carbide
• Flute Type: Spiral

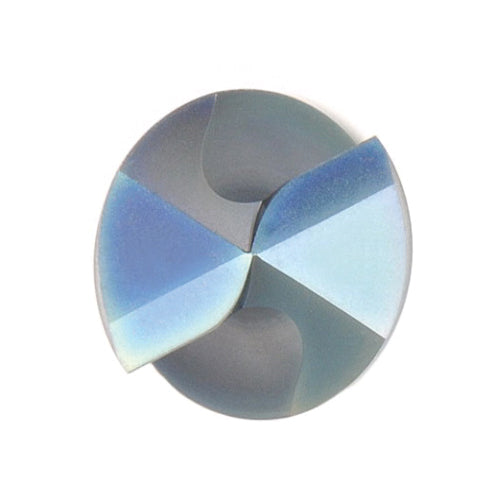

• Point Type: R-Thinning

Product Highlights

This drill is effective for creating holes in a variety of materials including low and medium carbon steels. The EgiAs coating enhances durability and performance.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 21/64 in (0.3281 in)
• Shank Diameter: 10.000 mm (0.3937 in)
• Flute Length: 61.000 mm (2.4016 in)
• Overall Length: 103.000 mm (4.0551 in)
• Cutting Depth: 5XD
• Number of Flutes: 2
• Cutting Edge Material: Carbide
• Applicable Materials: Low and medium carbon steels, cast iron, and aluminum
