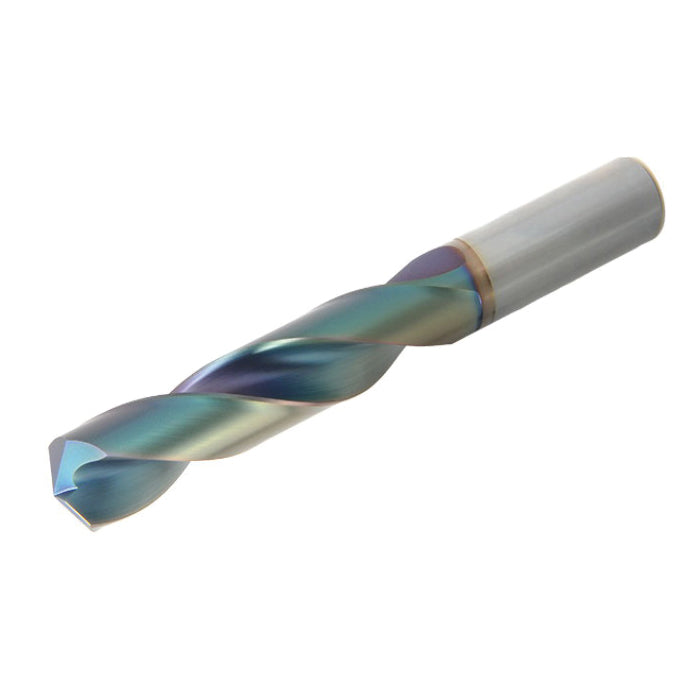

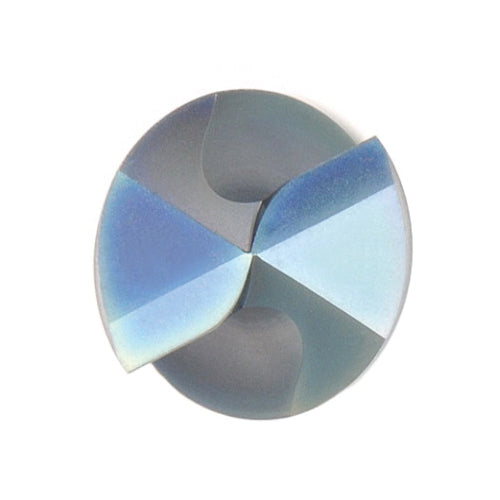

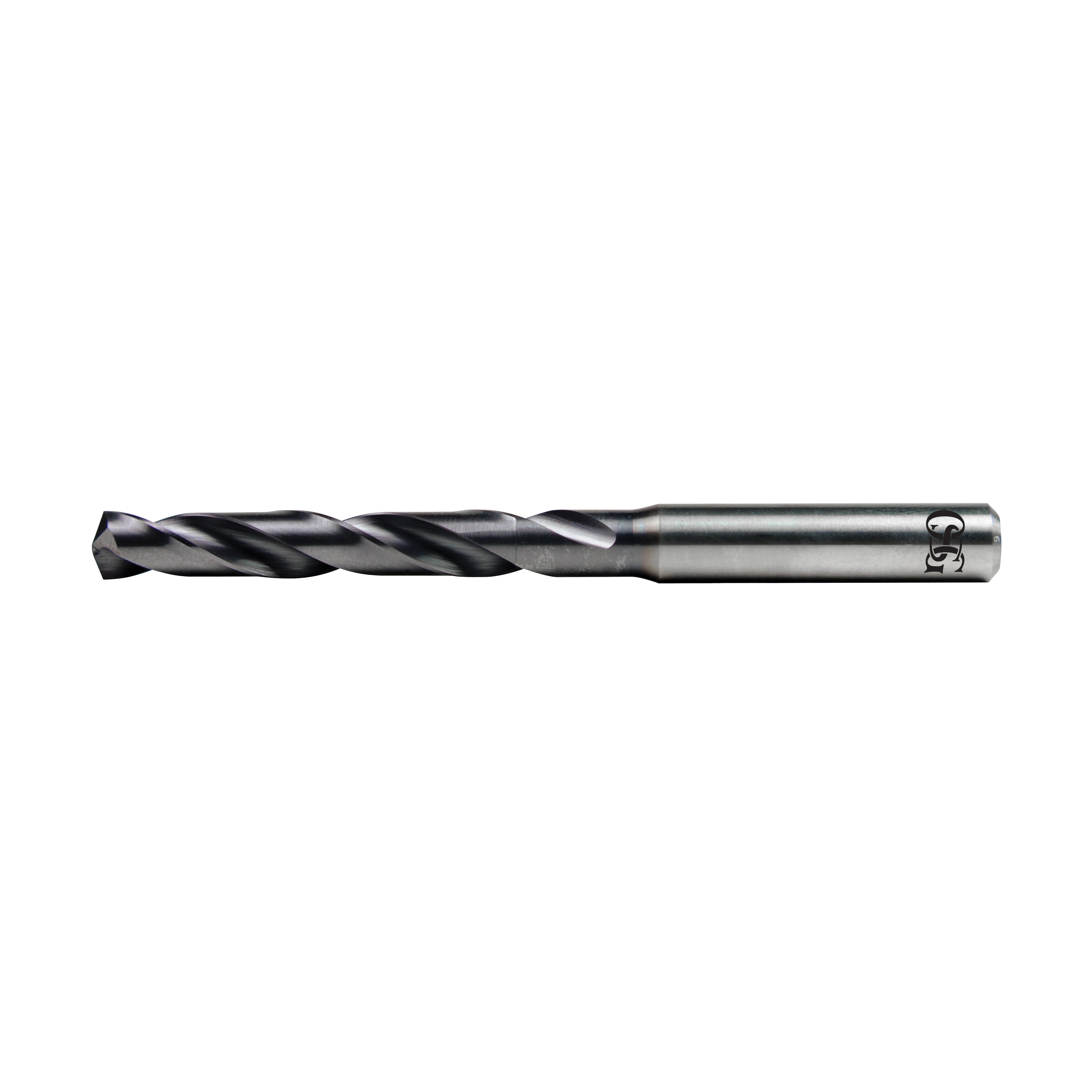

OSG HP245-2969 OSG 19/64 MM HP CARB DRILL 5D

Product Description

The OSG 19/64 MM HP Carb Drill 5D, MPN HP245-2969, is a high-performance drilling tool designed for various metalworking applications. This drill features a diameter of 19/64 inches, or approximately 7.540 mm, and is made of durable carbide material. The shank diameter measures eight millimeters, while its flute length and overall length are 53 mm and 91 mm, respectively. This drill is ideal for tasks requiring precision and strength.

• Made from carbide for durability and performance
• Flute length of 53 mm for effective cutting
• Overall length of 91 mm allows for versatility in usage

Product Highlights

Versatile carbide drill designed for heavy-duty applications.

Product Information

Standard Information

• Material: Carbide
• Diameter: 19/64 inches (7.540 mm)

Technical Specifications

• Shank Diameter: 8 mm
• Flute Length: 53 mm
• Overall Length: 91 mm
• Point Angle: 140 degrees
• Number of Flutes: 2
• Applicable Materials: Low Carbon Steel, Medium Carbon Steel, High Carbon Steel, Alloy Steel, Cast Iron, Cast Aluminum
• Cutting Edge Material: Carbide
