OSG HP245-2500 OSG 1/4 LTR E HP Carb Drill 5D

Product Description

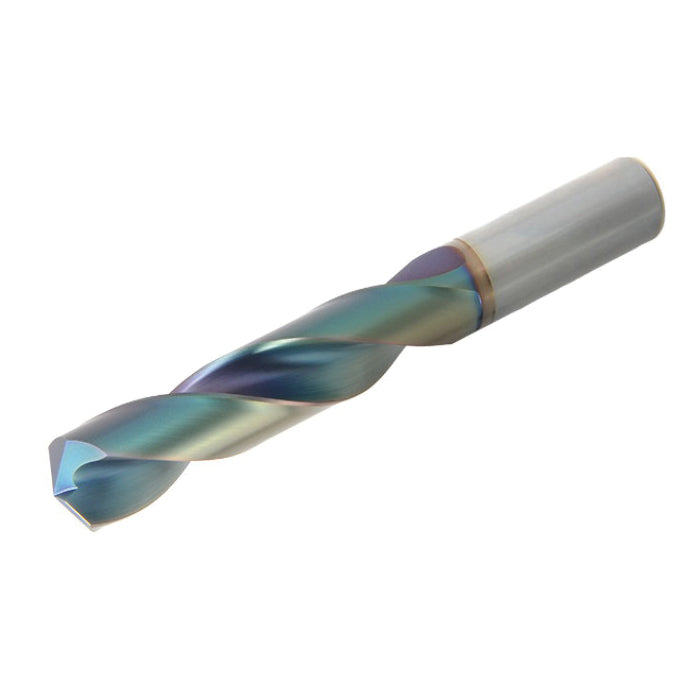

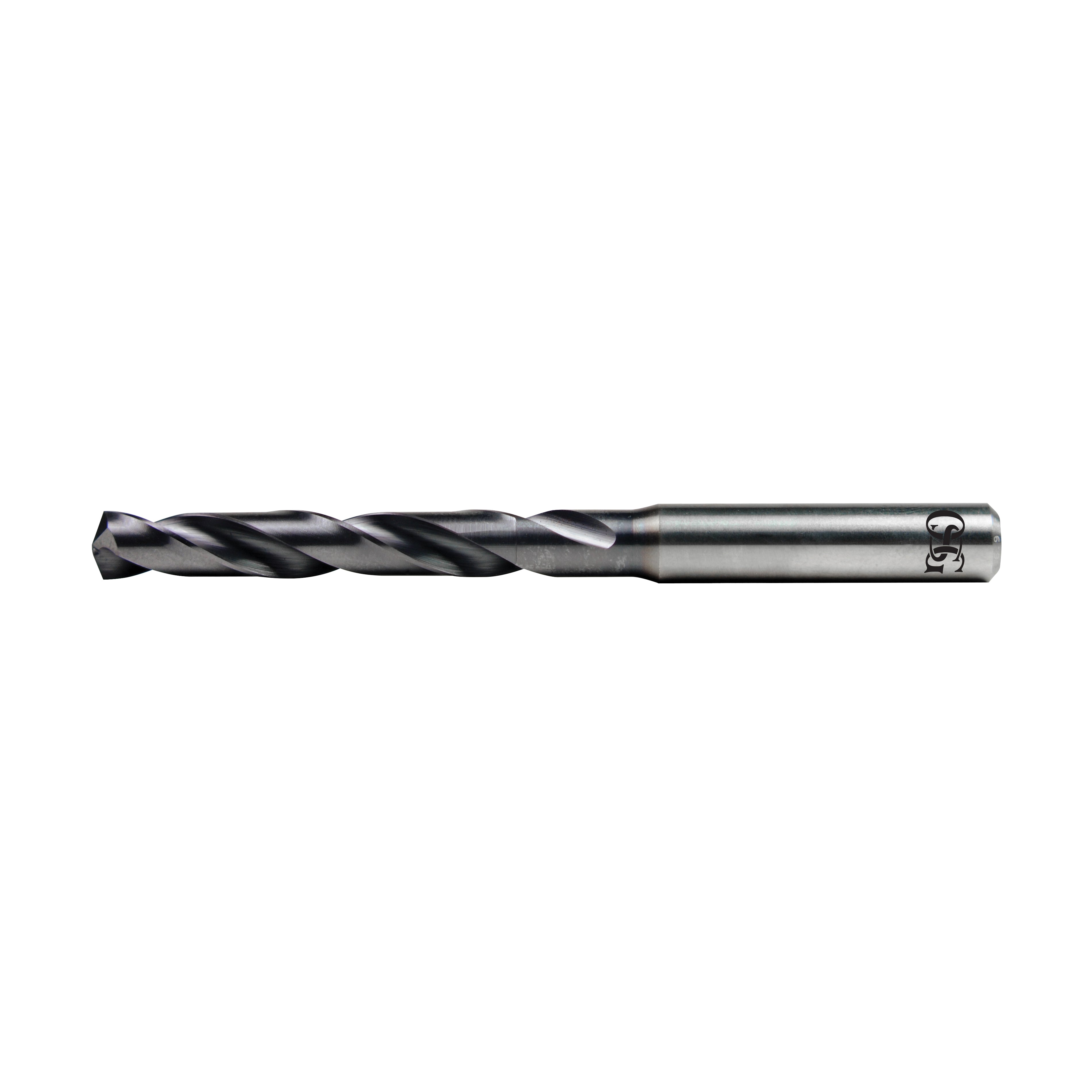

The OSG HP245-2500 is a carbide drill with a diameter of one-fourth inch, also known as six point three five millimeters. This drill is designed for robust applications, making it an essential tool for drilling tasks. It features a flute length of fifty-three millimeters and an overall length of ninety-one millimeters. The drill is suitable for various materials including low carbon steel, medium carbon steel, and cast iron.

• Carbide construction for durability.
• Designed for high-performance drilling.
• Overall length of ninety-one millimeters.

Product Highlights

The HP245-2500 drill is engineered to provide precision and longevity during use. It combines a strong radial rake geometry with an EgiAs coating for enhanced wear resistance. This drill performs well in applications requiring depth, offering depths from three to five times the diameter of the drill bit.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 1/4 (6.350 mm)
• Shank Diameter: 8.000 mm (0.3150)
• Flute Length: 53.000 mm (2.0866)
• Overall Length: 91.000 mm (3.5827)

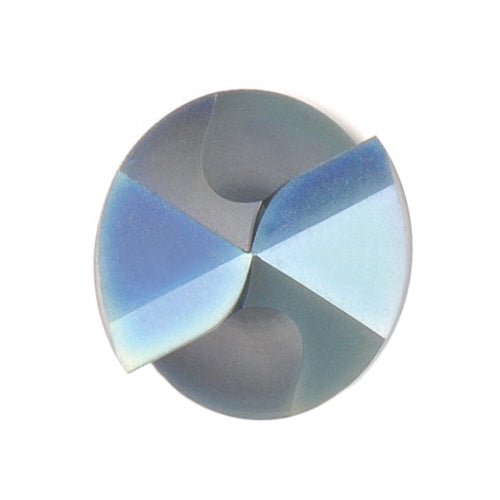

• Point Type: R-Thinning
• Flute Type: Spiral
• Number of Flutes: 2
• Cutting Depth: 5XD
