Osg HP245-1929 4.90 mm HP Carb Drill 5D

Product Description

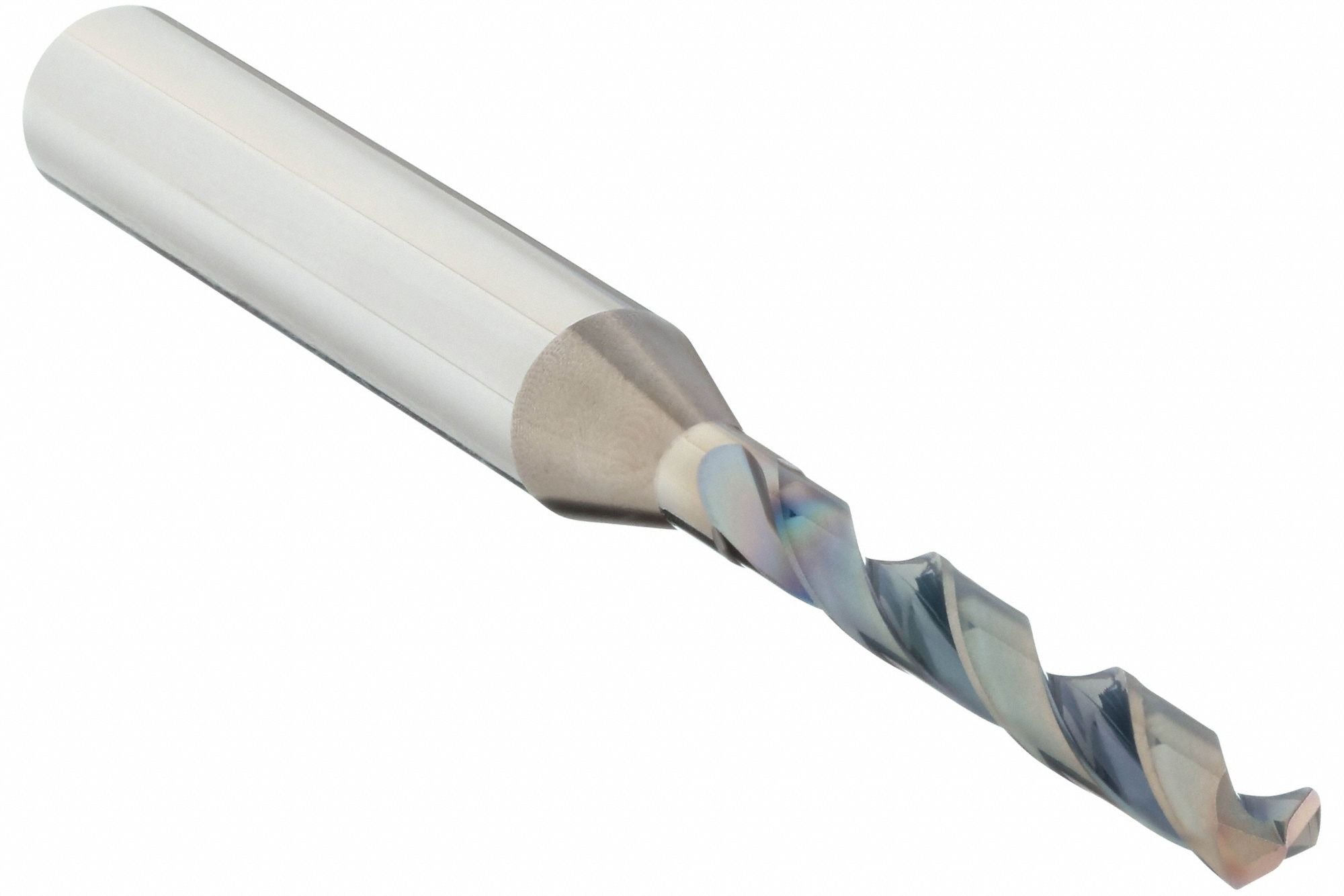

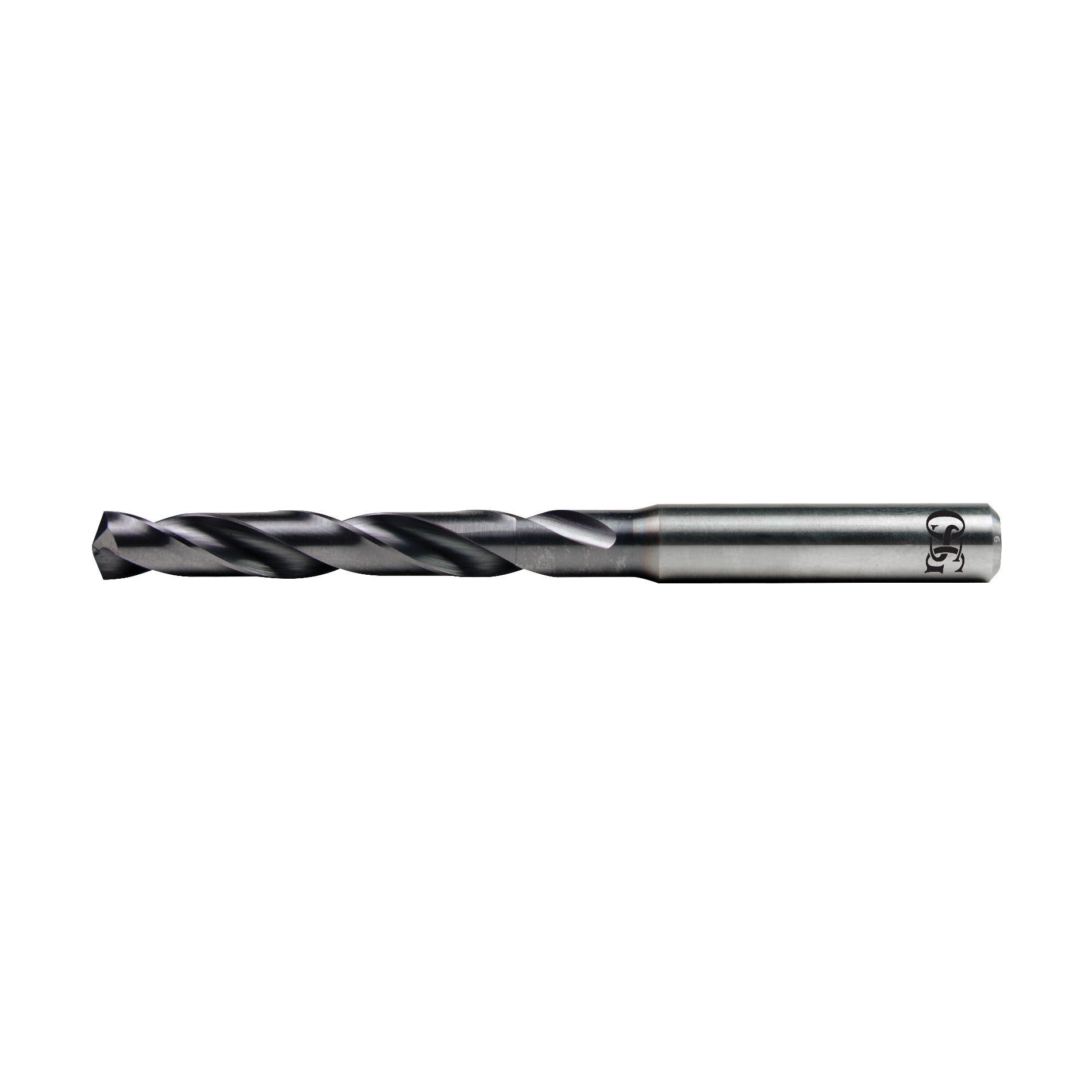

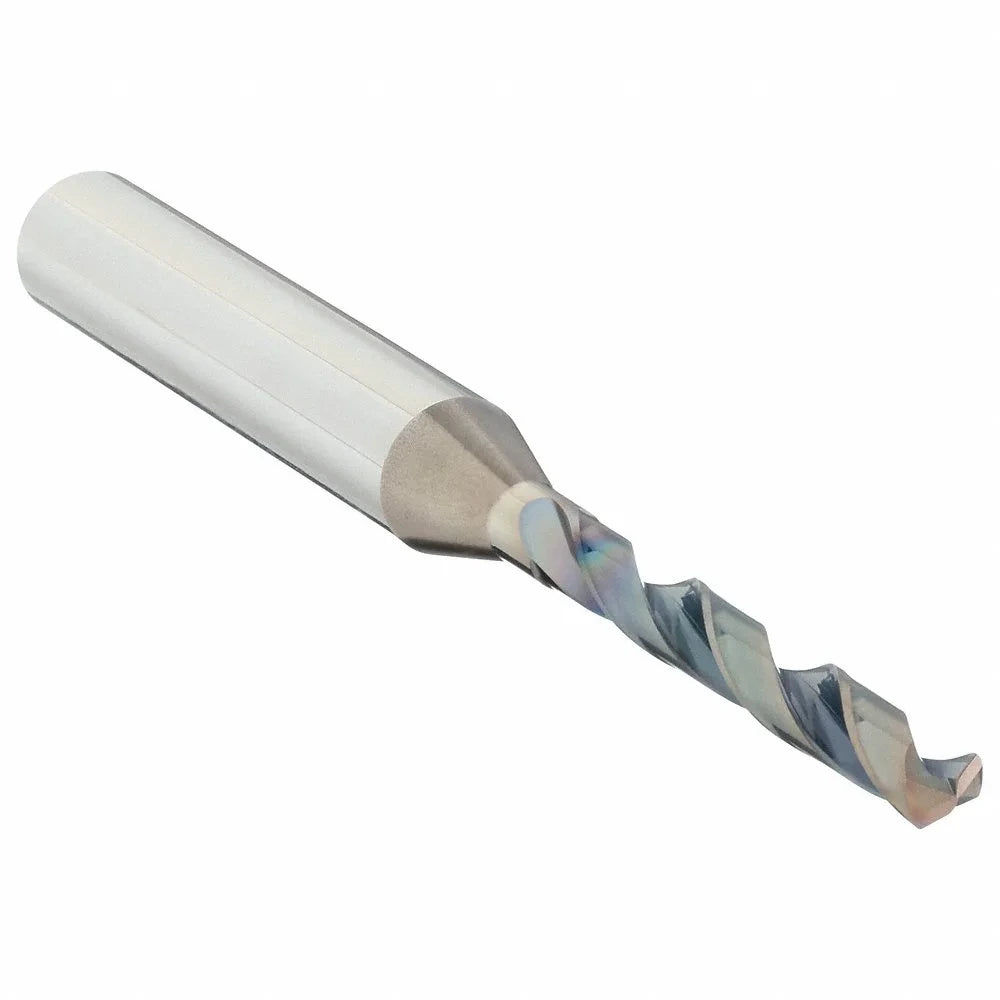

OSG HP245-1929 is a 4.9 mm (0.1929 in) solid carbide jobber-length drill from the HP245 series. It features an 82 mm overall length, 44 mm flute length, a 6 mm straight shank (38 mm shank length), two spiral flutes, a 140 deg R-thinning point and 5xD cutting depth. The drill is non-coolant-through and supplied with EgiAs coating for enhanced wear resistance in a range of steels and cast materials.

• Solid carbide substrate with EgiAs coating for improved wear resistance and heat resistance
• 4.9 mm (0.1929 in) diameter, 140 deg R-thinning point, 2 flutes, 30 deg helix, right-hand cutting
• 82 mm overall length, 44 mm flute length, 6 mm shank (38 mm length), 5xD depth, non-coolant-through, straight shank

Product Highlights

Jobber-length solid carbide drill, 4.9 mm diameter, HP245 series, EgiAs coating, 140 deg R-thinning point, 5xD depth

Product Information

Standard Information

• Brand: OSG
• Manufacturer Part Number: HP245-1929
• Country of Origin: India
