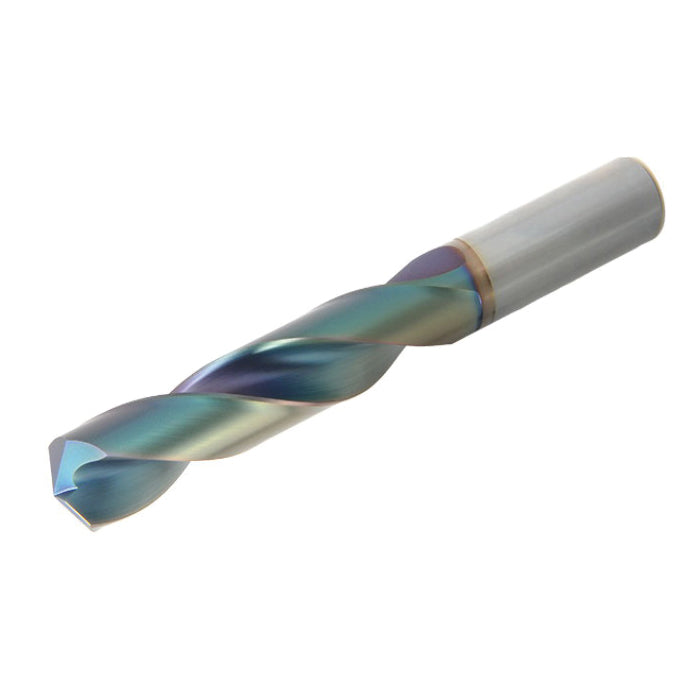

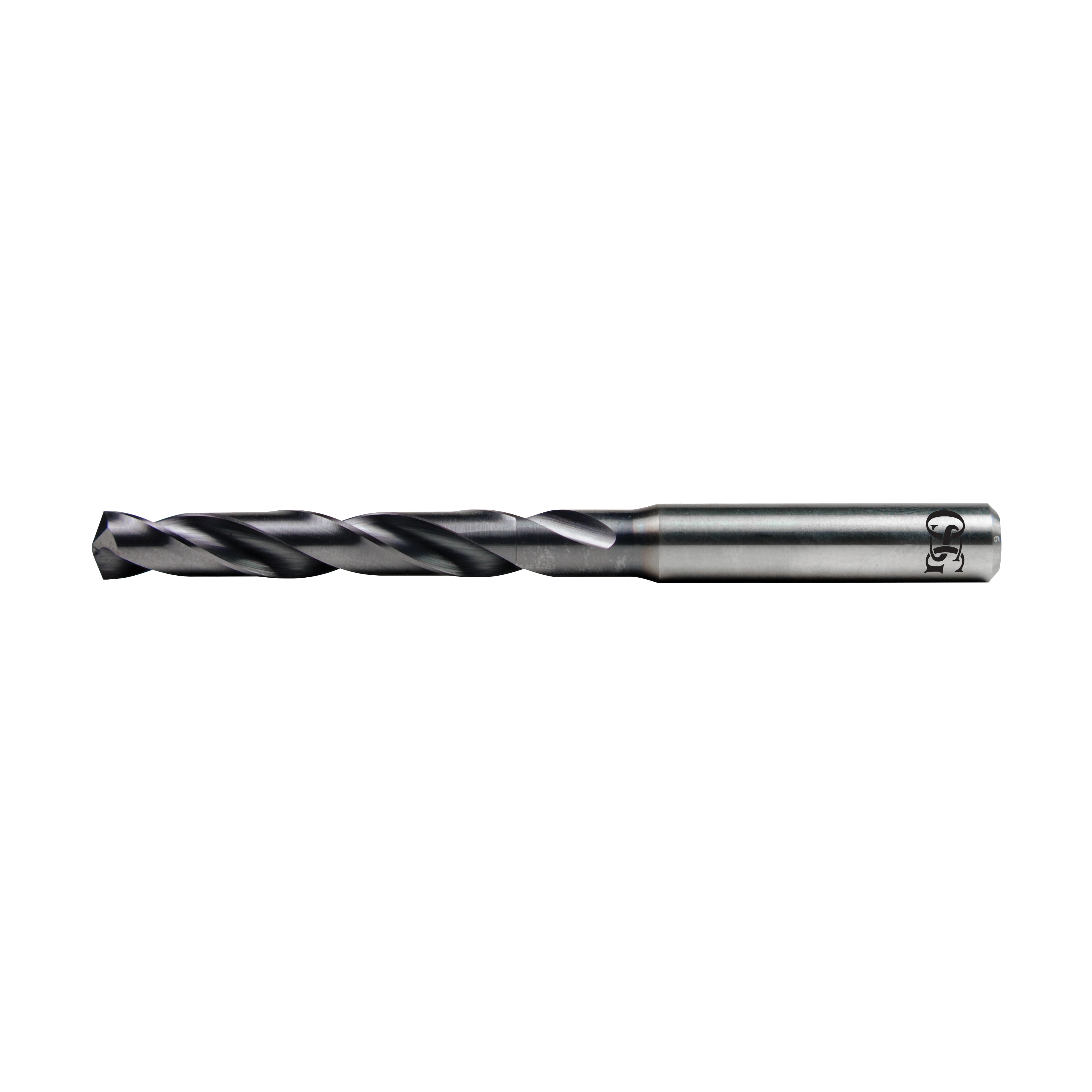

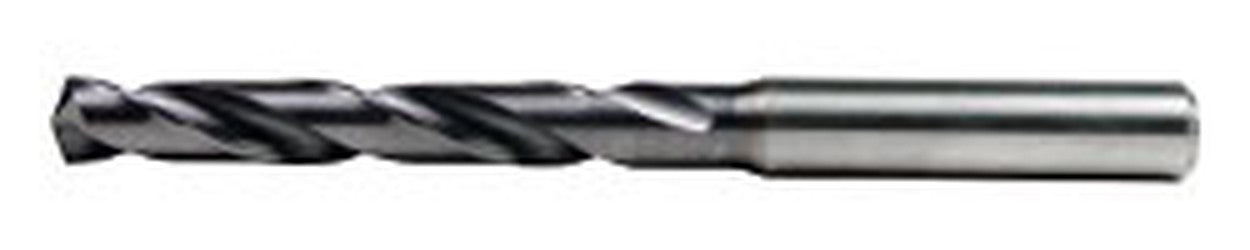

OSG HP245-1248 Performance Jobber Length Drill Bit, 1/8 in Drill - Fraction, 3.175 mm Drill - Metric, 0.125 in Drill - Decimal Inch, 140 deg Point, Carbide, EgiAs Coated

Product Description

The OSG HP245-1248 is a performance jobber length drill bit made of carbide. This drill has a diameter of one eighth of an inch, or three point one seven five millimeters. The drill features a shank diameter of six millimeters, a flute length of twenty-eight millimeters, and an overall length of sixty-six millimeters.

• Material: Carbide
• Drill Size: 1/8 inch (3.175 mm)

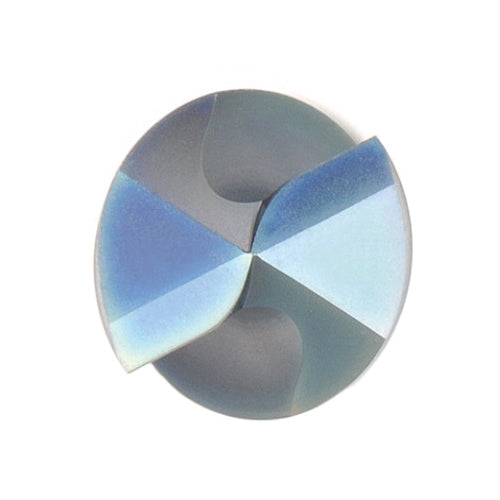

• Point Angle: 140 degrees

Product Highlights

This drill bit is suitable for use in various materials including low carbon steel and cast iron. The EgiAs coating enhances wear resistance and overall longevity.

Product Information

Standard Information

• Brand: OSG
• Part Number: HP245-1248

Technical Specifications

• Diameter: 1/8 inch (3.175 mm)
• Shank Diameter: 6.000 mm (0.2362)
• Flute Length: 28.000 mm (1.1024)
• Overall Length: 66.000 mm (2.5984)
• Number of Flutes: 2
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Material: Carbide
