OSG HP243-4291 M10.90 3XD CARB/TIALN HY-PRO DRILL 55x102 M12 SHANK

Product Description

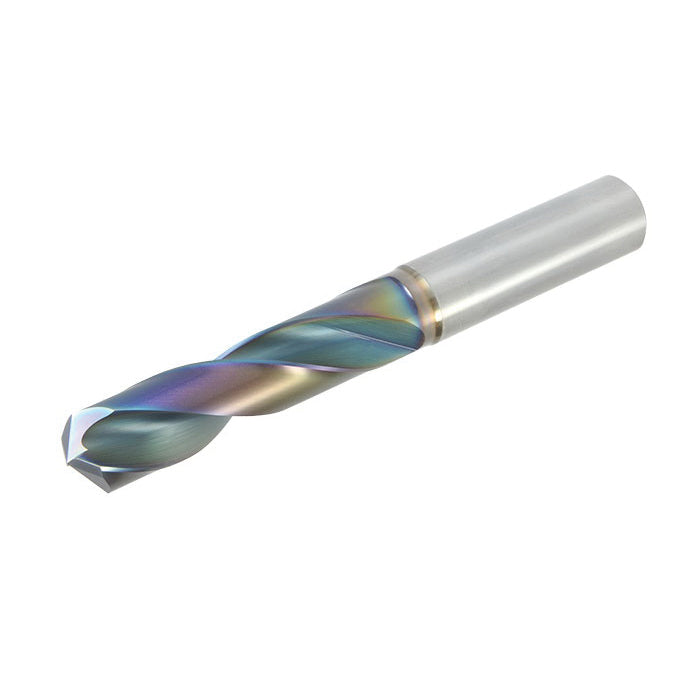

OSG HP243-4291 is a carbide drill designed for high performance and durability. This model features a diameter of 0.4291 inches (10.900 mm). The drill has a shank diameter of 0.4724 inches (12.000 mm) and an overall length of 4.0157 inches (102.000 mm). The flute length is 2.1654 inches (55.000 mm). Ideal for precision tasks, it combines advanced carbide material with innovative design.

• High-performance carbide drill
• Flute length of 2.1654 inches (55.000 mm)
• Overall length of 4.0157 inches (102.000 mm)

Product Highlights

Designed to drill through various materials including cast iron and hardened steel.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.4291 inches (10.900 mm)
• Shank Diameter: 0.4724 inches (12.000 mm)
• Flute Length: 2.1654 inches (55.000 mm)
• Overall Length: 4.0157 inches (102.000 mm)
• Cutting Edge Material: Carbide

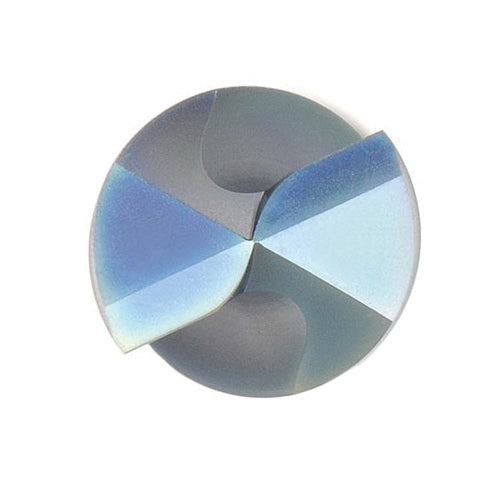

• Point Type: R-Thinning
• Number of Flutes: 2
• Point Angle: 140 degrees
