OSG HP243-2638 DRILL & DRIVER BITS
OSG OSG HP243-2638 Performance Stub Length Screw Machine Drill Bit 6.7 mm Drill - Metric 0.2637 in Drill - Decimal Inch
OSG OSG HP243-2638 Performance Stub Length Screw Machine Drill Bit 6.7 mm Drill - Metric 0.2637 in Drill - Decimal Inch
OSG OSG HP243-2638 Performance Stub Length Screw Machine Drill Bit 6.7 mm Drill - Metric 0.2637 in Drill - Decimal Inch
OSG HP243-2638 DRILL & DRIVER BITS
OSG HP243-2638 Performance Stub Length Screw Machine Drill Bit 6.7 mm Drill - Metric 0.2637 in Drill - Decimal Inch
OSG HP243-2638 Performance Stub Length Screw Machine Drill Bit 6.7 mm Drill - Metric 0.2637 in Drill - Decimal Inch
OSG HP243-2638 Performance Stub Length Screw Machine Drill Bit 6.7 mm Drill - Metric 0.2637 in Drill - Decimal Inch

OSG HP243-2638 Performance Stub Length Screw Machine Drill Bit 6.7 mm Drill - Metric 0.2637 in Drill - Decimal Inch

Brand: OSG
SKU: HP243-2638
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

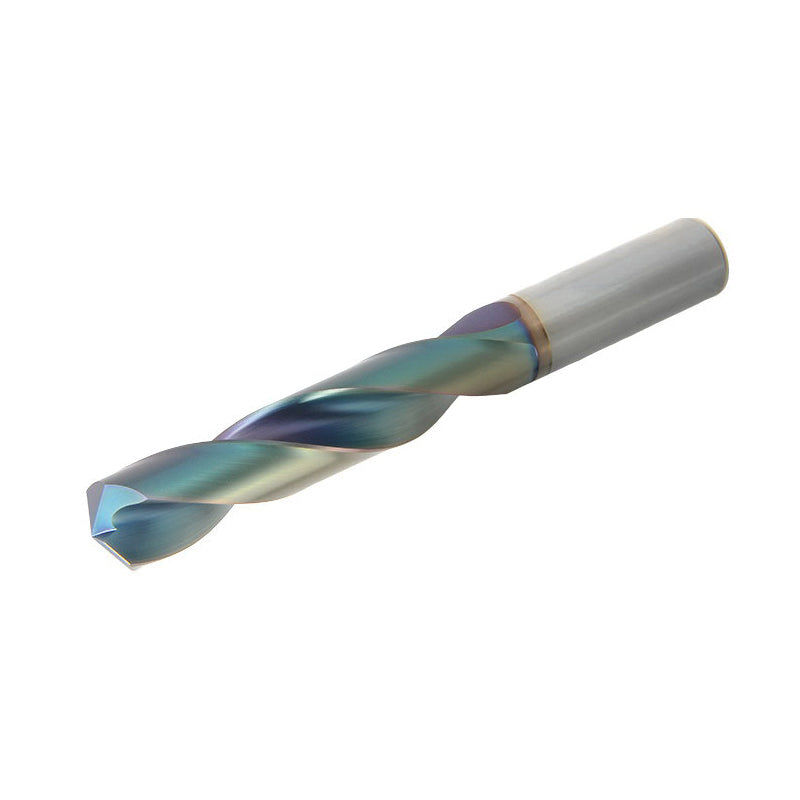

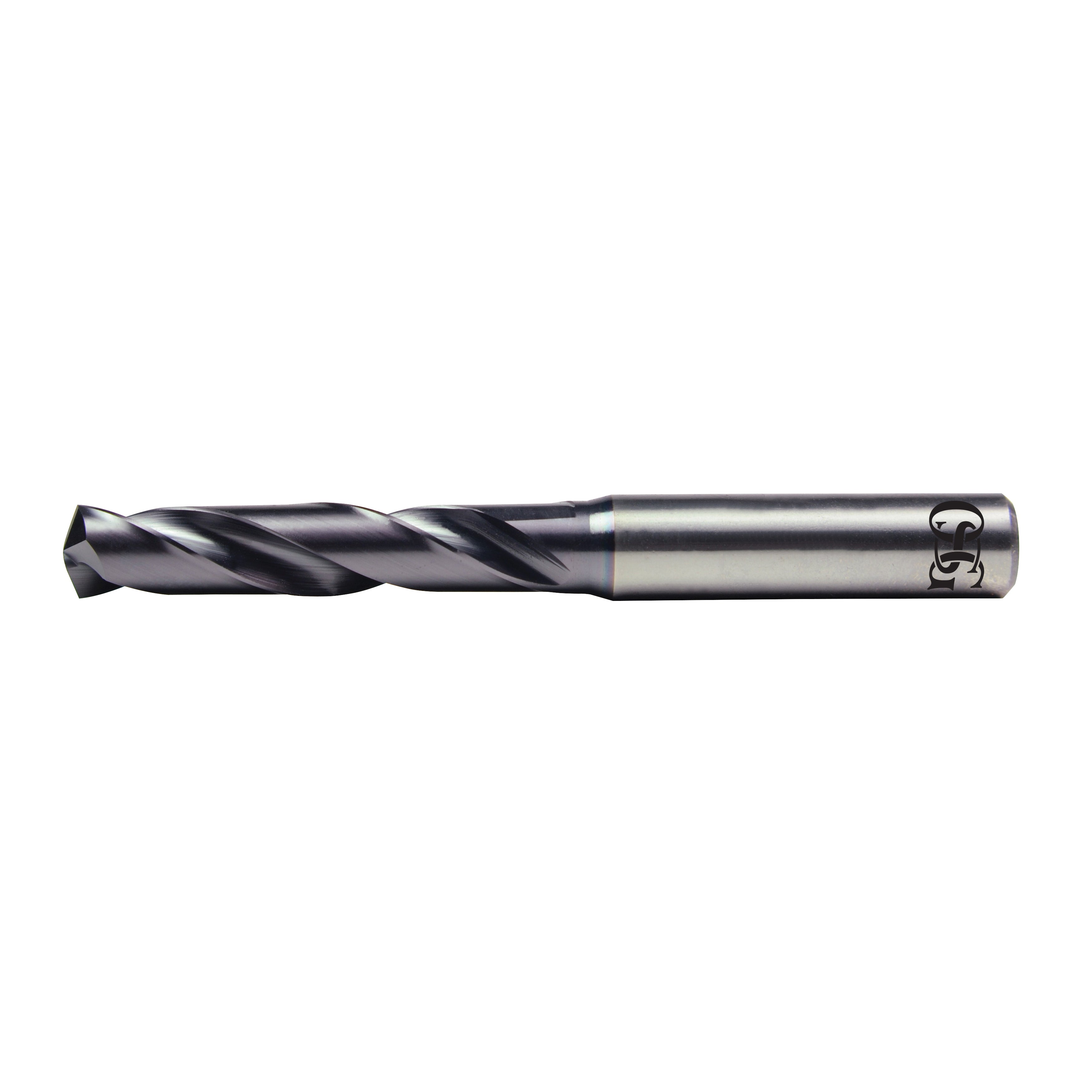

The OSG HP243-2638 is a performance stub length screw machine drill bit. This carbide drill features a diameter of six point seven millimeters and a shank diameter of eight millimeters. It is designed for versatility in applications and is suitable for use with various materials such as low carbon steel and cast aluminum.

  • Carbide construction for durability
  • Overall length of three point one one inches
  • Suitable for solid and coolant-through applications

Product Highlights

This drill provides efficient cutting with a right-hand operation, making it ideal for machining tasks.

Product Information

Standard Information

  • Brand: OSG
  • Material: Carbide
Technical Specifications
Diameter
0.2638 inches (6.700 mm)
Shank Diameter
0.3150 inches (8.000 mm)
Flute Length
1.3386 inches (34.000 mm)
Overall Length
3.1102 inches (79.000 mm)
Number of Flutes
2
Cutting Depth
3XD
Point Angle
140 degrees
