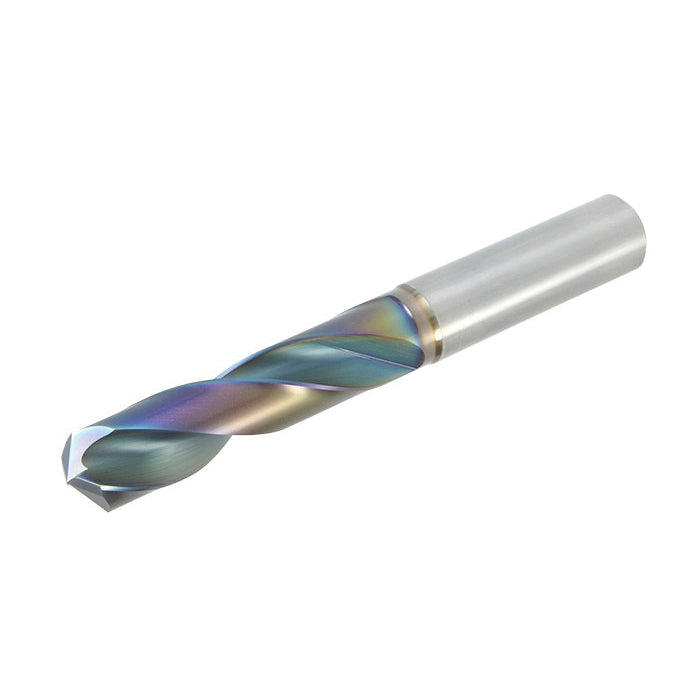

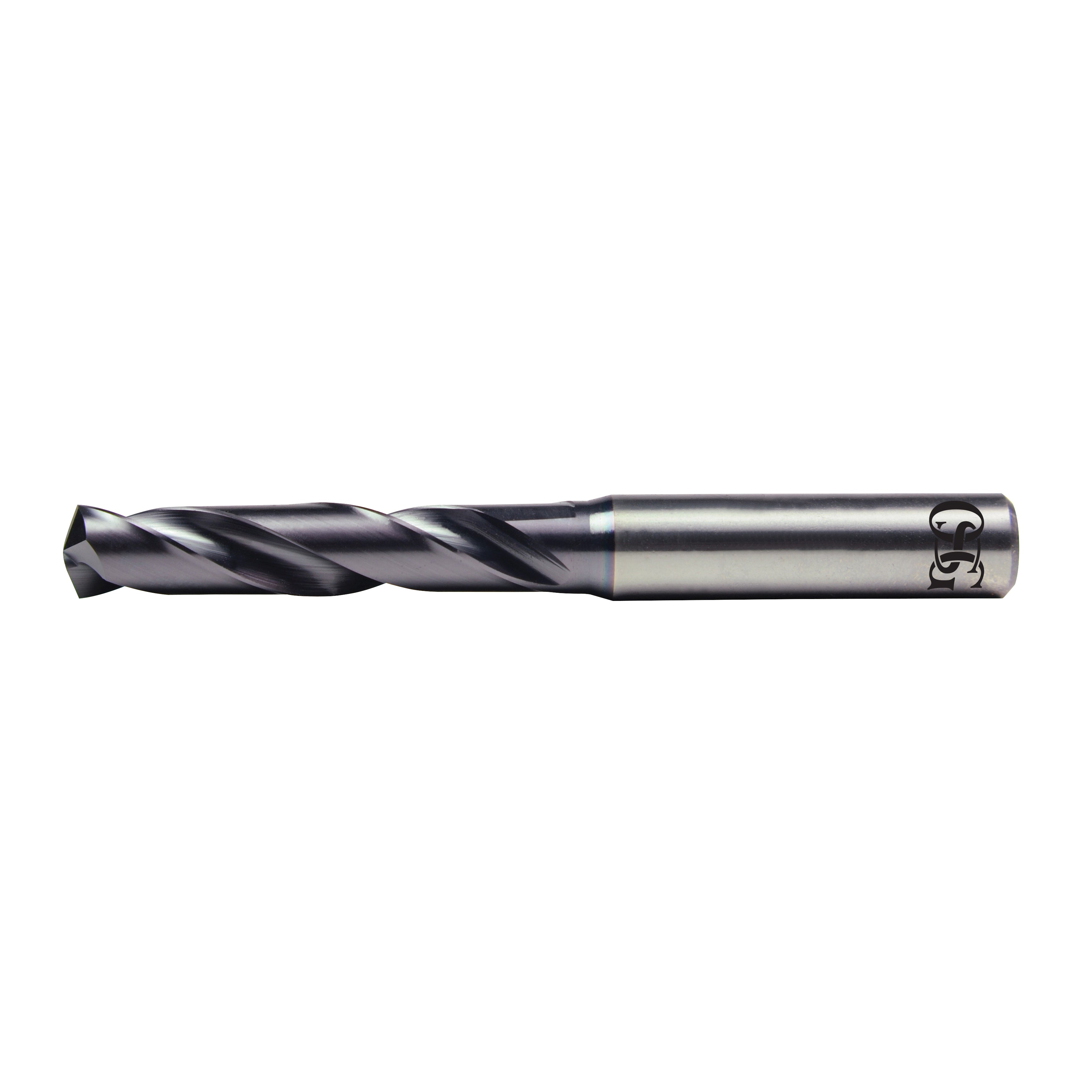

OSG HP243-2559 OSG 6.50 MM HP Carb Drill 3D

Product Description

The OSG 6.50 MM HP Carb Drill 3D, MPN HP243-2559, offers robust performance for a variety of drilling tasks. Made from carbide, the drill is suitable for use in both low and high carbon steels, alloy steels, and cast iron. Its design includes a diameter of zero point two five five nine inches and a shank diameter of zero point three one five zero inches.

• Flute length of one point three three eight six inches.
• Overall length of three point one one zero two inches.
• Two flutes for efficient chip removal.

Product Highlights

This drill features a right hand cutting geometry, which is effective for drilling in various materials with precision.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.2559 (6.500 mm)
• Shank Diameter: 0.3150 (8.000 mm)
• Flute Length: 1.3386 (34.000 mm)
• Overall Length: 3.1102 (79.000 mm)
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Point Type: R-Thinning
• Applicable Materials: Low and medium carbon steels, alloy steels, cast iron
