OSG HP243-1496 HY-PRO CARB DRILL 3XD (24x66) Replacement MPN

Product Description

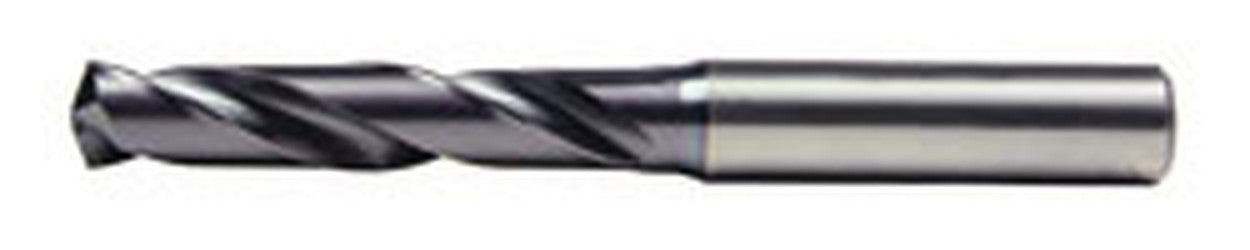

The OSG HP243-1496 is a carbide drill with a diameter of zero point one four nine five inches. This drill is designed for various applications in drilling materials like stainless steel and aluminum. The overall length is two point five nine eighty-four inches with a flute length of zero point nine four forty-nine inches. The design includes a shank diameter of zero point two three six two inches, making it suitable for various drilling tasks.

• Diameter: 0.1495 inches (3.797 mm)
• Overall Length: 2.5984 inches (66 mm)
• Flute Length: 0.9449 inches (24 mm)

Product Highlights

The OSG drill features a right-hand cutting design and a unique EgiAs coating for improved wear resistance. It is ideal for drilling low carbon and medium carbon steels.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.1495 inches (3.797 mm)
• Shank Diameter: 0.2362 inches (6.000 mm)
• Flute Length: 0.9449 inches (24.000 mm)
• Overall Length: 2.5984 inches (66.000 mm)
• Flute Type: Spiral
• Number of Flutes: 2
• Point Angle: 140 degrees
• Applicable Materials: Low Carbon Steel, Medium Carbon Steel, High Carbon Steel, Alloy Steel, Die Steel, Cast Iron, Hardened Steel, Cast Aluminum
