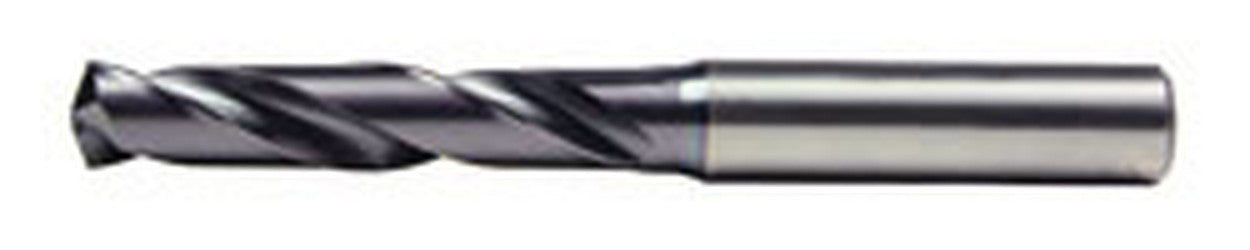

OSG HP243-0780 Performance Stub Length Screw Machine Drill Bit 5/64 in Drill - Fraction 1.984 mm Drill - Metric 0.0781 in Drill - Decimal Inch

Product Description

The OSG HP243-0780 is a carbide drill designed for precision and efficiency. This drill features a diameter of five sixty-fourths of an inch and a shank diameter of three millimeters. The flute length is thirteen millimeters, providing an overall length of forty-five millimeters. This drill is suitable for various materials, including low and medium carbon steels and cast iron.

• Material: Carbide
• Drill Size: Five sixty-fourths of an inch (1.984 mm)
• Flute Type: Spiral

Product Highlights

This OSG drill bit is ideal for applications requiring precision drilling, especially in hard materials.

Product Information

Standard Information

• Brand: OSG
• Part Number: HP243-0780

Technical Specifications

• Diameter: 0.0781 inches (1.984 mm)
• Shank Diameter: 0.1181 inches (3.000 mm)
• Flute Length: 0.5118 inches (13.000 mm)
• Overall Length: 1.7717 inches (45.000 mm)
• Point Angle: 140 degrees
• Cutting Edge Material: Carbide
• Number of Flutes: 2
• Cutting Depth: 3XD
