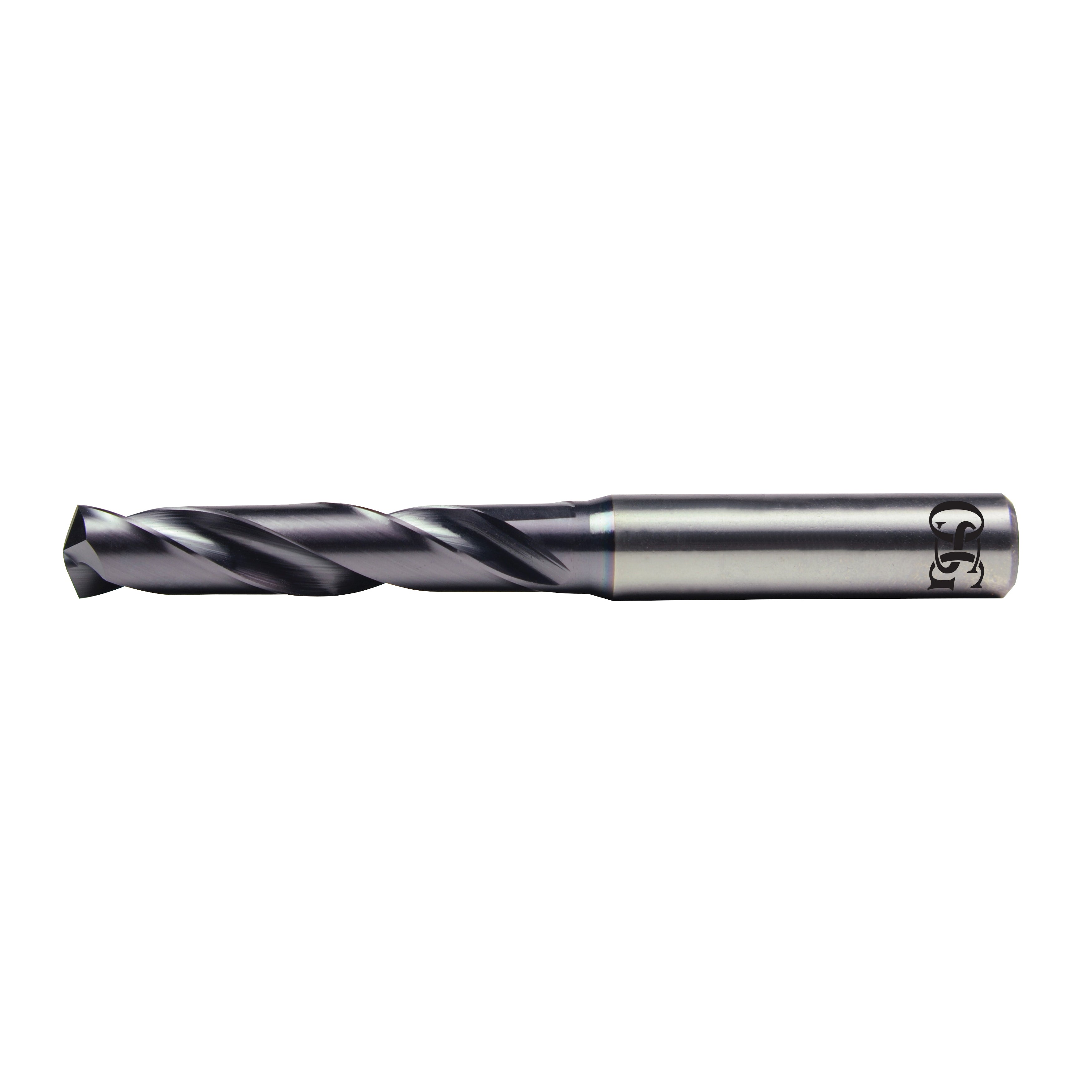

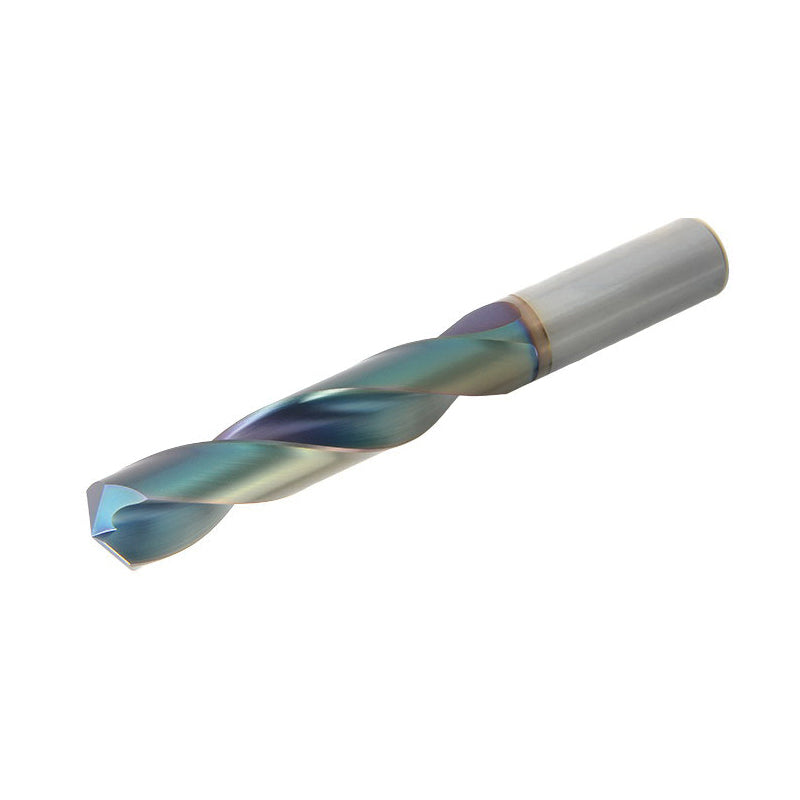

OSG HP243-0626 HY-PRO CARB Drill 1/16 in 10x40 M3sh 140DEG

Product Description

The OSG HP243-0626 is a carbide drill designed for precision drilling tasks. It has a diameter of 0.0625 inches and is suitable for various materials including steel and aluminum. The drill provides a deep cutting depth of up to three times its diameter, making it efficient for robust applications.

• Drill Diameter: 0.0625 inches (1.588 mm)
• Flute Length: 0.3937 inches (10 mm)
• Overall Length: 1.5748 inches (40 mm)

Product Highlights

This drill is part of the HY-PRO series, featuring optimized performance with EgiAs coating for enhanced durability and reduced chipping.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.0625 inches (1.588 mm)
• Shank Diameter: 0.1181 inches (3 mm)
• Flute Length: 0.3937 inches (10 mm)
• Overall Length: 1.5748 inches (40 mm)
• Cutting Depth: 3XD
• Number of Flutes: 2

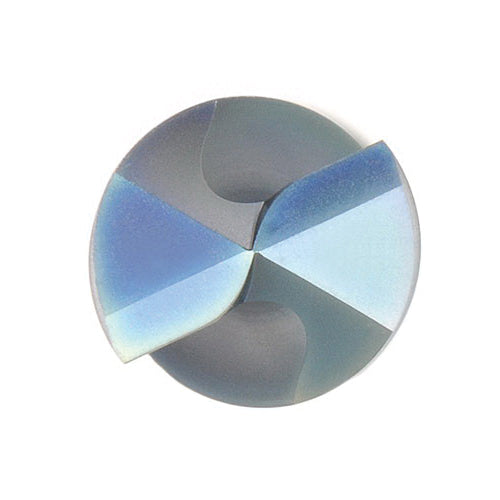

• Point Type: R-Thinning
• Point Angle: 140 degrees
