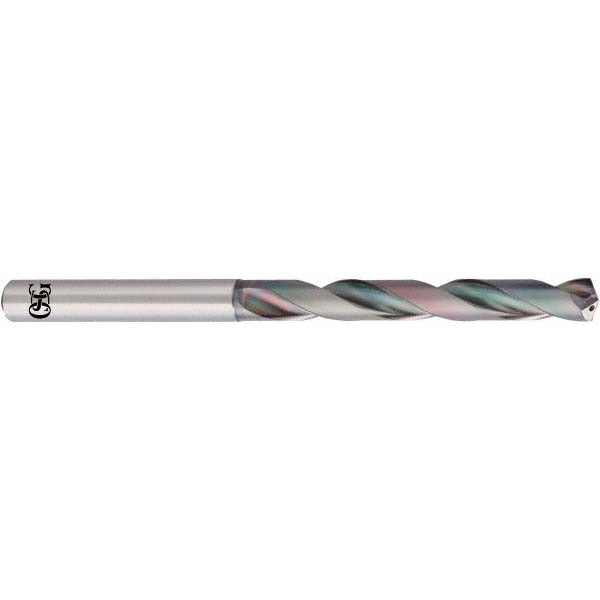

Osg 8693310 Solid Carbide Jobber Drill 13.10mm 140 Deg

Product Description

The OSG 8693310 is a solid carbide jobber-length drill bit designed for high-performance drilling in demanding metalworking applications. It features a 13.10 mm (0.5157 inch) diameter, a 140-degree R-thinned point for self-centering entry, and an EgiAs coating that improves wear resistance and heat dissipation. The two-flute, right-hand spiral design promotes efficient chip evacuation. With an overall length of 176.00 mm and a 105.00 mm flute length, this drill is built for machinists and tool-and-die professionals working on CNC machining centers or conventional drill presses.

The OSG 8693310 is rated for use in steel, alloy steel, cast iron, titanium, and titanium alloys, covering ISO material codes P, K, S, and H. It is suited for blind hole drilling, cross hole drilling, through drilling, and self-centering operations. The 5xD flute-to-diameter ratio and coolant-through capability make it a strong fit for production environments where cycle times and tool life are critical. The straight-cylindrical shank (14.00 mm diameter) seats in standard drill chucks and hydraulic or shrink-fit toolholders.

Key Features

• Solid carbide construction for rigidity and extended tool life in hard materials
• EgiAs coating for improved wear resistance and reduced heat buildup
• 140-degree R-thinned point for self-centering and reduced thrust force
• Coolant-through design supports internal coolant delivery for deep-hole applications
• Two right-hand spiral flutes with tapered web configuration for consistent chip evacuation
• Rated for steel, alloy steel, cast iron, titanium, and titanium alloys (ISO P, K, S, H)

Compatibility

OSG Series 6510 drill bit designed for machining steel, alloy steel, cast iron, titanium, and titanium alloys; compatible with any CNC or manual spindle accepting a 14.00 mm straight-cylindrical shank with coolant-through capability.

Installation Notes

Installation and use should be performed by qualified machinists familiar with cutting tool setup and speeds-and-feeds selection. Ensure the spindle and toolholder are fully de-energized and locked out before loading or removing the drill. Verify shank seating and runout with a dial indicator before production use. Always confirm that the coolant-through supply is active when drilling deep or blind holes in hard materials to prevent premature tool wear or breakage.
