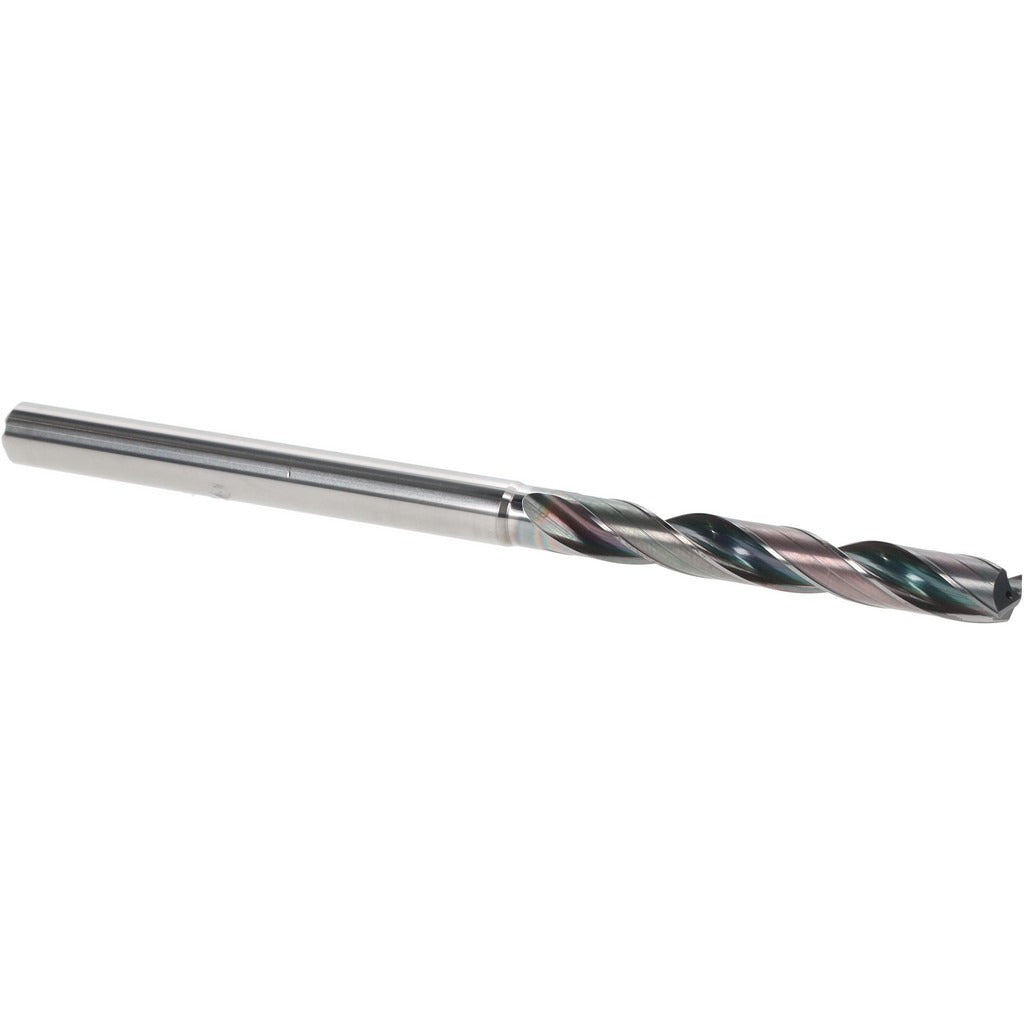

Osg 8692570 Solid Carbide Jobber Drill 5.70 Mm

Product Description

The OSG 8692570 is a solid carbide jobber-length drill bit engineered for high-performance drilling in demanding metalworking applications. It measures 5.70 mm in diameter with an overall length of 100.00 mm and a 46.00 mm flute length, giving it a 5xD flute-to-diameter ratio suited for moderate-depth holes. The 140-degree point angle with R-thinned web geometry supports self-centering entry and reduces thrust force at the tip. An EgiAs coating adds wear resistance and heat tolerance. This bit is designed for use by machinists and tool-and-die professionals working on CNC equipment or manual machines where consistent hole quality in hard materials is required.

The OSG 8692570 is intended for drilling steel, alloy steel, cast iron, titanium, and titanium alloys. It supports blind hole drilling, cross-hole drilling, general drilling, and self-centering applications. The straight-cylindrical shank with a 6.00 mm diameter fits standard collet chucks and drill chucks commonly found in machining centers and drill presses. Coolant-through capability makes it well-suited for high-speed or deep-hole operations where chip evacuation and heat management are critical.

Key Features

• Solid carbide construction for rigidity and tool life in hard and abrasive workpiece materials
• 140-degree point angle with R-thinned web for reduced thrust and improved self-centering
• EgiAs coating for elevated wear resistance and thermal protection
• Coolant-through design supports chip flushing in blind and cross-hole applications
• Regular spiral, two-flute configuration promotes efficient chip evacuation
• Straight-cylindrical shank compatible with standard collet and drill chuck toolholding

Compatibility

Designed for use in steel, alloy steel, cast iron, titanium, and titanium alloys per ISO material codes P, K, S, and H. Fits toolholding systems accepting a 6.00 mm straight-cylindrical shank. Part of OSG Series 6510.

Installation Notes

Installation and use should be performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and the tool is properly seated and torqued in the collet or chuck before operation. Verify coolant lines are clear and flowing before running coolant-through operations. Follow the machine tool manufacturer guidelines and applicable workplace safety standards when handling carbide cutting tools, as carbide is brittle and can fracture if dropped or mishandled.
