Osg 8673120 Jobber Length Drill Bit 11.2 mm (140 deg)

Brand: OSG
SKU: 8673120
Availability: In Stock

Ships same day if ordered by 12 pm
$345.12
$345.12
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

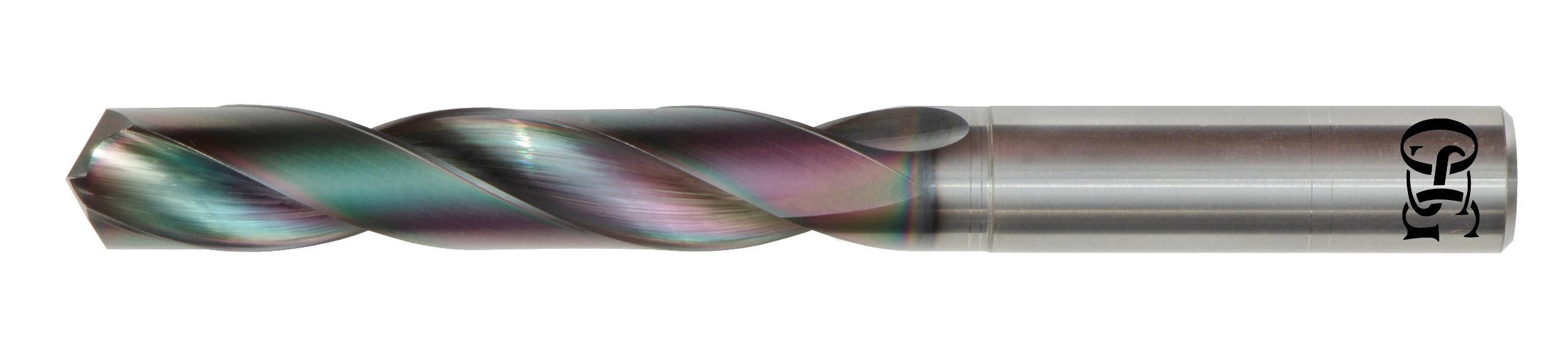

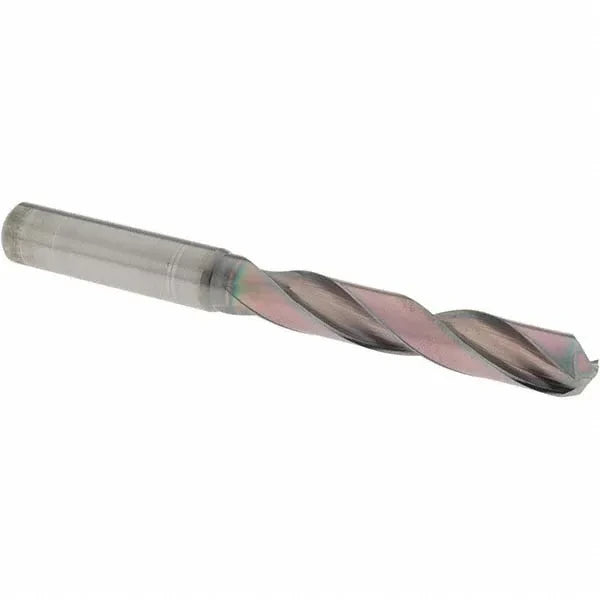

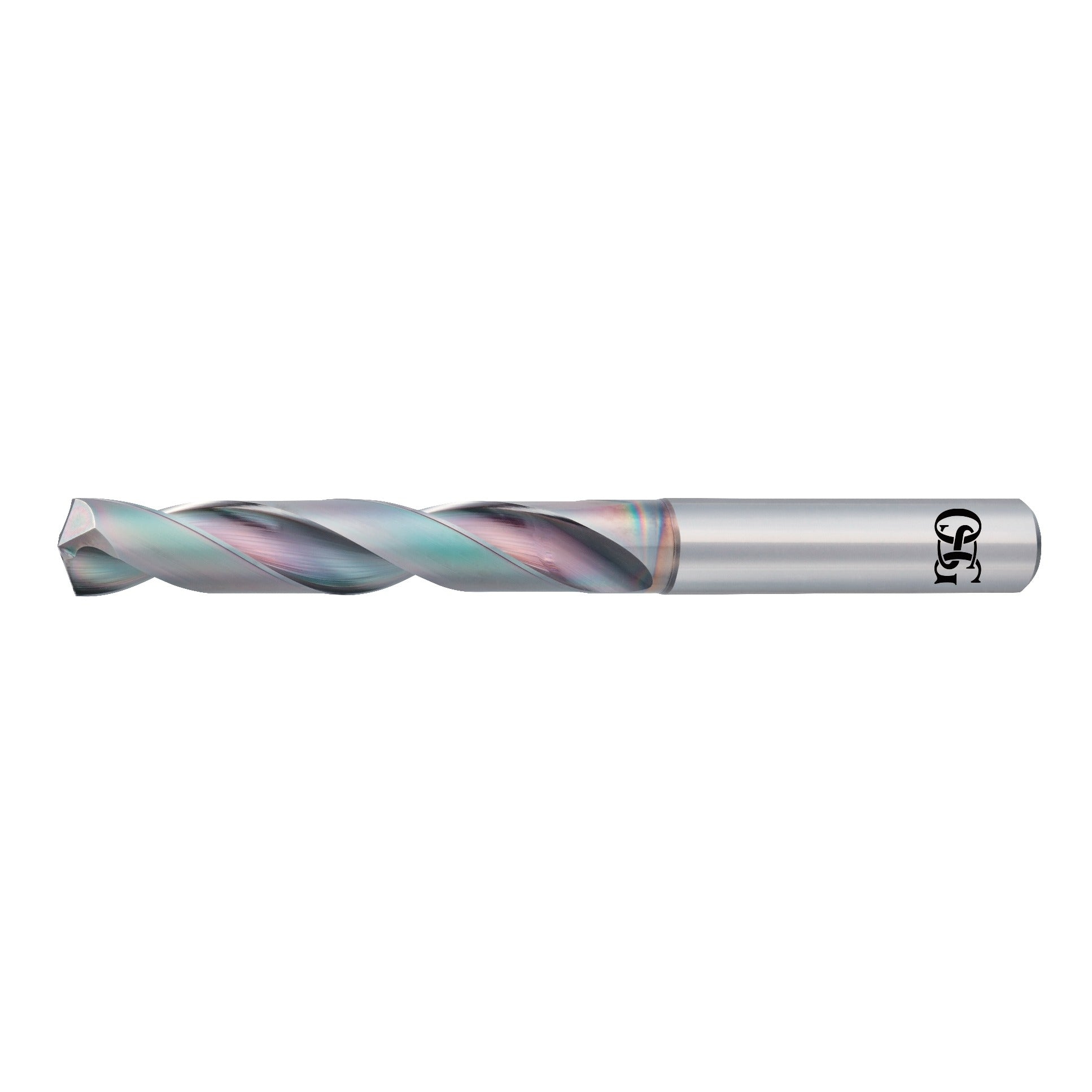

Osg 8673120 is a high-performance solid carbide jobber-length drill from OSG's 6310 EXOCARB AD series. It measures 11.2 mm in diameter with a 140 deg R-thinning point and EgiAs coated carbide cutting edge for improved hardness and heat resistance. The tool has two spiral flutes (71 mm flute length), 118 mm overall length, a 12 mm straight shank (47 mm length) and is non-coolant-through for blind hole drilling in ferrous and non-ferrous materials.

  • 11.2 mm diameter, 140 deg R-thinning point, EgiAs coated carbide cutting edge
  • Overall length 118 mm, flute length 71 mm, two spiral flutes, 4x D cutting depth
  • 12 mm diameter x 47 mm straight shank, right-hand cutting, non-coolant-through

Product Highlights

High-performance solid carbide jobber drill (series 6310) with EgiAs coating for drilling steel, alloy, cast iron and non-ferrous materials.

Product Information

Standard Information

  • Brand: OSG
  • Manufacturer Part Number: 8673120
  • Country of Origin: Japan
Technical Specifications
Brand
Osg
MPN
8673120
Series
6310 (6310 EXOCARB AD)
Type
Jobber length solid carbide drill
Material
Solid carbide (substrate: carbide)
Coating/Finish
EgiAs
Diameter
11.20 mm (0.44094 in)
Point Angle
140 deg (R-thinning)
Point Type
R-Thinning (R-Thinned)
Overall Length
118 mm (4.64567 in)
Flute Length
71 mm (2.79528 in)
Number of Flutes
2
Flute Type
Spiral
Cutting Depth (L/D Ratio)
4xD
Cutting Direction
Right Hand
Helix Angle
30 deg
Helix Direction
RH
Shank Size
12 mm dia x 47 mm length (0.47244 in dia x 1.85039 in length)
Shank Type
Straight (cylindrical)
Shank Tolerance
h6
Cutting Diameter Tolerance
+0 / -0.027 mm (h8)
Through Coolant
No
Applicable Materials
Low/medium/high carbon steels, alloy steels, die steel, cast iron, cast aluminum, selected hardened steels, ferrous and non-ferrous materials
Substrate
Carbide
Point Thinning
R Thinning
Origin
Japan
