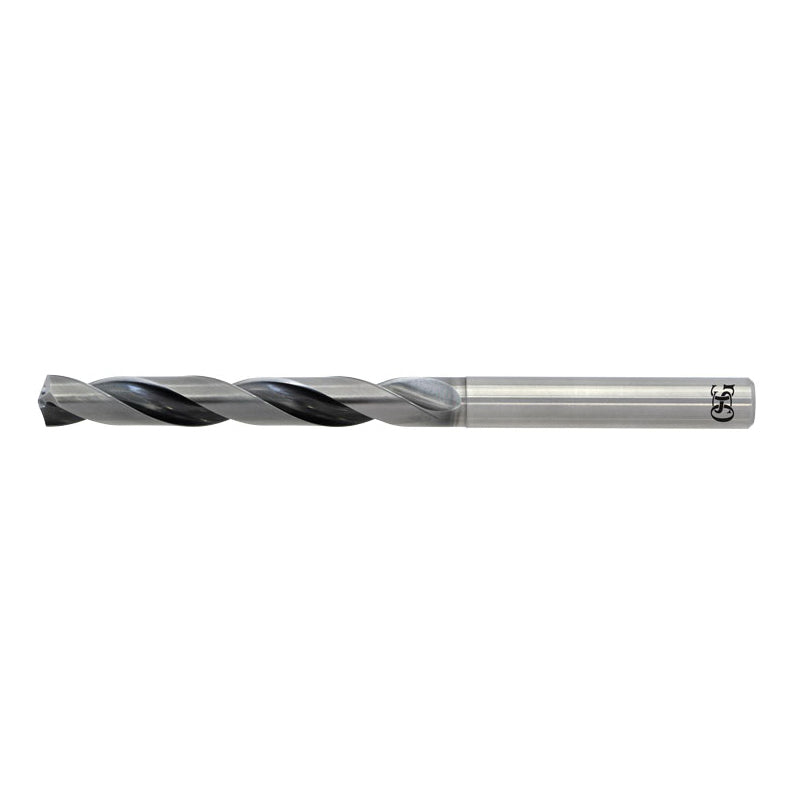

OSG 8668110 M11.10 5XD Carb/WXL Ado-SUS Coolant Drill 89x156 M12sh

Product Description

The OSG M11.10 5XD Carb/WXL Ado-SUS Coolant Drill, MPN 8668110, is engineered for efficient drilling in tough materials. This drill features a carbide construction with a diameter of eleven point one millimeters and shank diameter of twelve millimeters. With a flute length of eighty-nine millimeters and an overall length of one hundred fifty-six millimeters, it is designed for high performance.

• Carbide material enhances durability and performance.

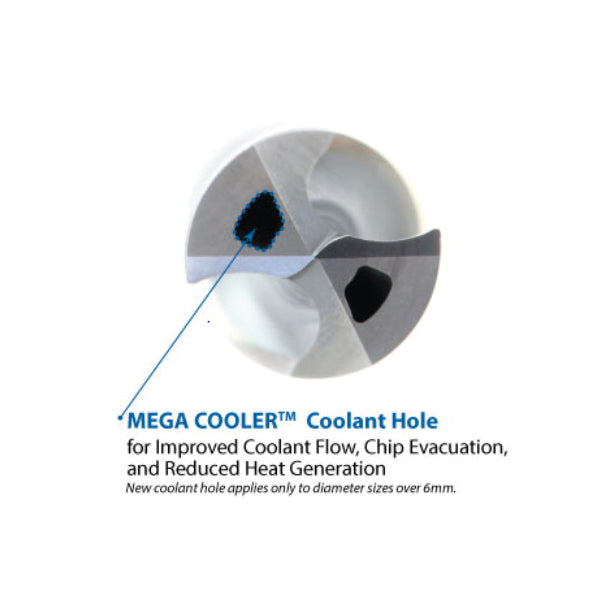

• Designed for effective cooling during drilling operations.
• Compatible with a wide range of materials including low and high carbon steels.

Product Highlights

This drill bit is suitable for a variety of machining applications, particularly in stainless steel. The unique WXL coating improves wear resistance and allows for higher cutting speeds.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 11.100 mm (0.4370)
• Shank Diameter: 12.000 mm (0.4724)
• Flute Length: 89.000 mm (3.5039)
• Overall Length: 156.000 mm (6.1417)
• Number of Flutes: 2
• Cutting Depth: 5XD
• Point Angle: 140 degrees
• Cutting Direction: Right Hand
