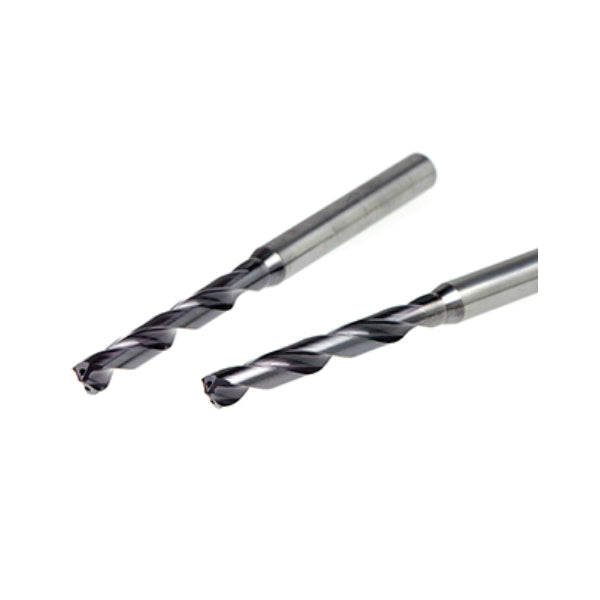

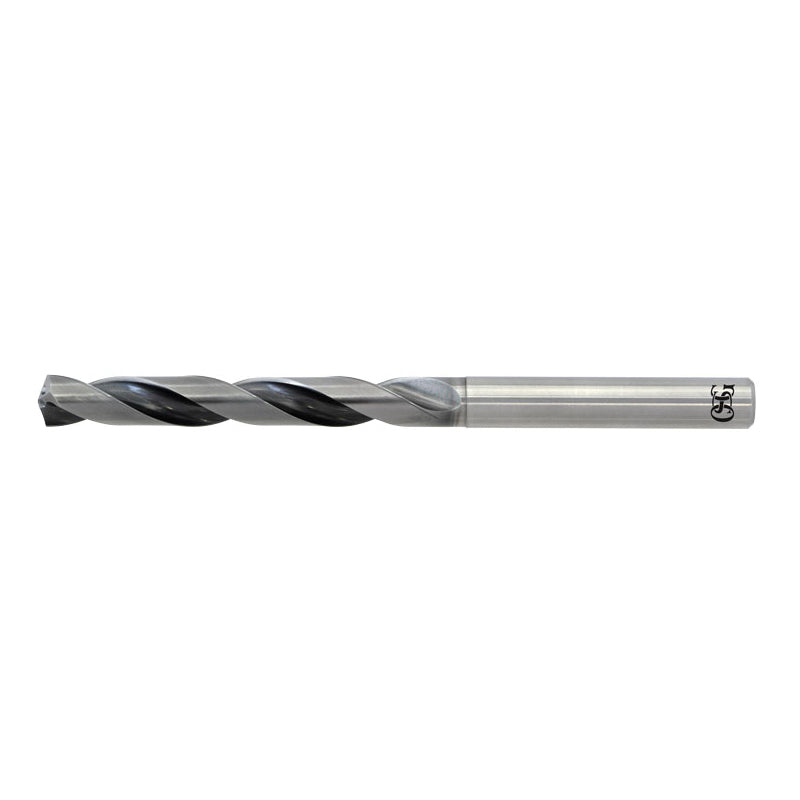

OSG 8668010 EXOCARB ADO-SUS-5D 10.1 mm Drill Bit

Product Description

The OSG 10.1mm EXOCARB ADO-SUS-5D is a solid carbide drill bit designed for various industrial applications. It is suitable for use in drilling through materials like stainless steel and other metals. This drill bit features a diameter of ten point one millimeters and a shank diameter of eleven millimeters.

• High-performance carbide construction for durability
• Flute length of eighty-one millimeters and overall length of one hundred forty-six millimeters
• Right-hand cutting design for effective drilling

Product Highlights

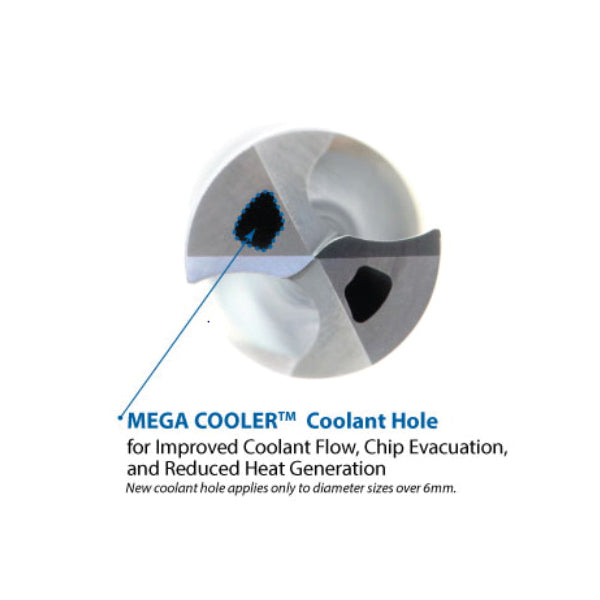

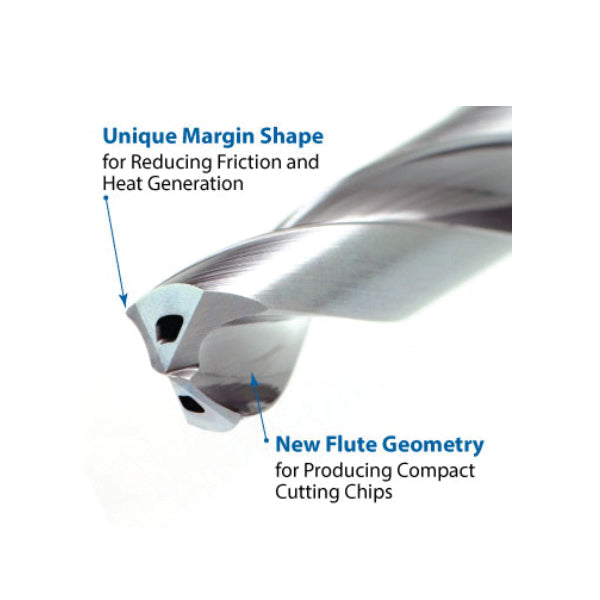

This drill bit is engineered for high efficiency in metalworking. The internal coolant holes promote better chip evacuation and reduced heat during drilling.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-8668010

Technical Specifications

• Diameter: 10.100 mm (0.3976)
• Shank Diameter: 11.000 mm (0.4331)
• Flute Length: 81.000 mm (3.1890)
• Overall Length: 146.000 mm (5.7480)
• Cutting Depth: 5XD
• Number of Flutes: 2
• Point Type: R-Thinning
• Cutting Direction: Right Hand
