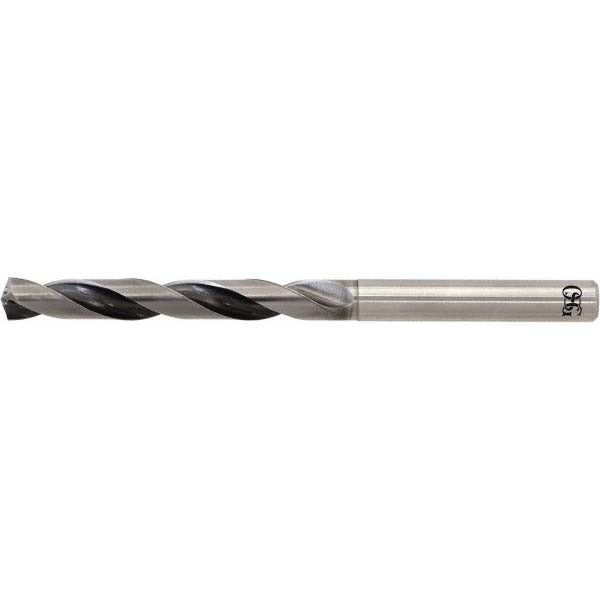

Osg 8667960 Solid Carbide Jobber Drill 9.60 Mm Wxl

Product Description

The OSG 8667960 is a solid carbide jobber-length drill bit designed for high-performance drilling in demanding production and toolroom environments. It features a 140-degree split-point geometry and an OSG WXL coating, a multi-layer finish engineered to extend tool life and reduce built-up edge in a broad range of workpiece materials. The 9.60 mm cutting diameter pairs with a 10.00 mm straight-cylindrical shank, making it compatible with standard precision chucks and collet systems. With an overall length of 136.00 mm and a 77.00 mm flute length, this is a workhorse drill for machinists who need consistent, tight-tolerance results across medium-to-long run production work.

The OSG 8667960 is rated for primary workpiece material codes P, M, K, and S, covering carbon and alloy steels, stainless steels, cast irons, and heat-resistant superalloys. It is built for CNC machining centers, drill presses, and multi-spindle setups where repeatability and hole quality are critical. The coolant-through design supports high-speed, deep-hole operations where chip evacuation and thermal management at the cutting edge are priorities. This bit is appropriate for aerospace, automotive, oil and gas, and general precision manufacturing applications.

Key Features

• Solid carbide construction for rigidity and thermal resistance at elevated cutting speeds
• WXL multi-layer coating reduces friction and extends edge life across steel, stainless, cast iron, and superalloy workpieces
• 140-degree point angle provides self-centering entry and reduces thrust force requirements
• Coolant-through design supports chip flushing and heat dissipation in deep-hole drilling
• Right-hand spiral flute with regular helix promotes consistent chip evacuation
• Diameter tolerance of plus 0 to minus 0.022 mm ensures tight, repeatable hole sizing

Compatibility

Designed as an OEM-spec Series 5210 drill for use in standard straight-shank tool holders, precision drill chucks, and ER collet systems accepting a 10.00 mm shank diameter. Suitable for workpiece material codes P, M, K, and S as specified by OSG.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine powered down and locked out per applicable machine-specific lockout/tagout procedures. Ensure the shank seating surface and tool holder bore are clean and free of chips before clamping. Confirm coolant-through supply pressure and flow are set per the machining center manufacturer specifications before running. Do not exceed the drill manufacturer recommended cutting parameters for the target workpiece material.
