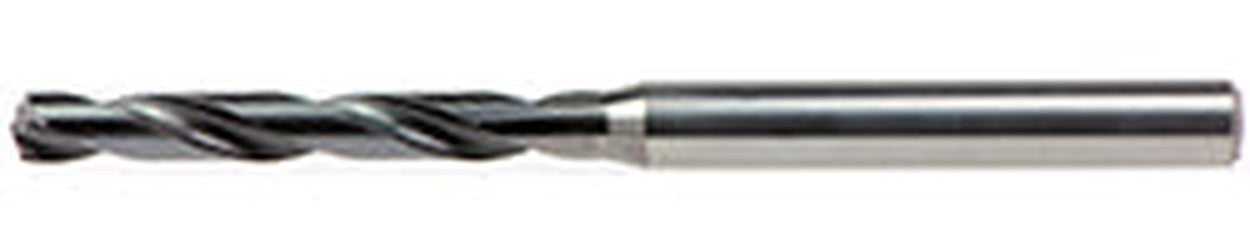

OSG 8667870 ADO-SUS 8.7mm Drill Bit - Carbide Cutting Edge

Product Description

The OSG 8.7mm EXOCARB ADO-SUS-5D is a carbide drill bit designed for precision and durability. This drill bit features a diameter of eight point seven millimeters, making it suitable for various applications in metalworking and holemaking. The product’s overall length is one hundred twenty-eight millimeters with a flute length of seventy millimeters. It is built to perform efficiently with two cutting flutes that enhance chip removal and cooling.

• Material: Carbide
• Flute Type: Spiral
• Point Angle: 140 degrees

Product Highlights

This drill bit is ideal for stainless steel and various hard materials, providing solid performance and extended tool life.

Product Information

Standard Information

• Brand: OSG
• Part Number: 8667870

Technical Specifications

• Diameter: 8.7 mm (0.3425 in)
• Shank Diameter: 9 mm (0.3543 in)
• Flute Length: 70 mm (2.7559 in)
• Overall Length: 128 mm (5.0394 in)
• Drill Size (Metric): 8.7 mm
• Number of Flutes: 2
• Cutting Depth: 5XD
• Through Coolant: Yes
