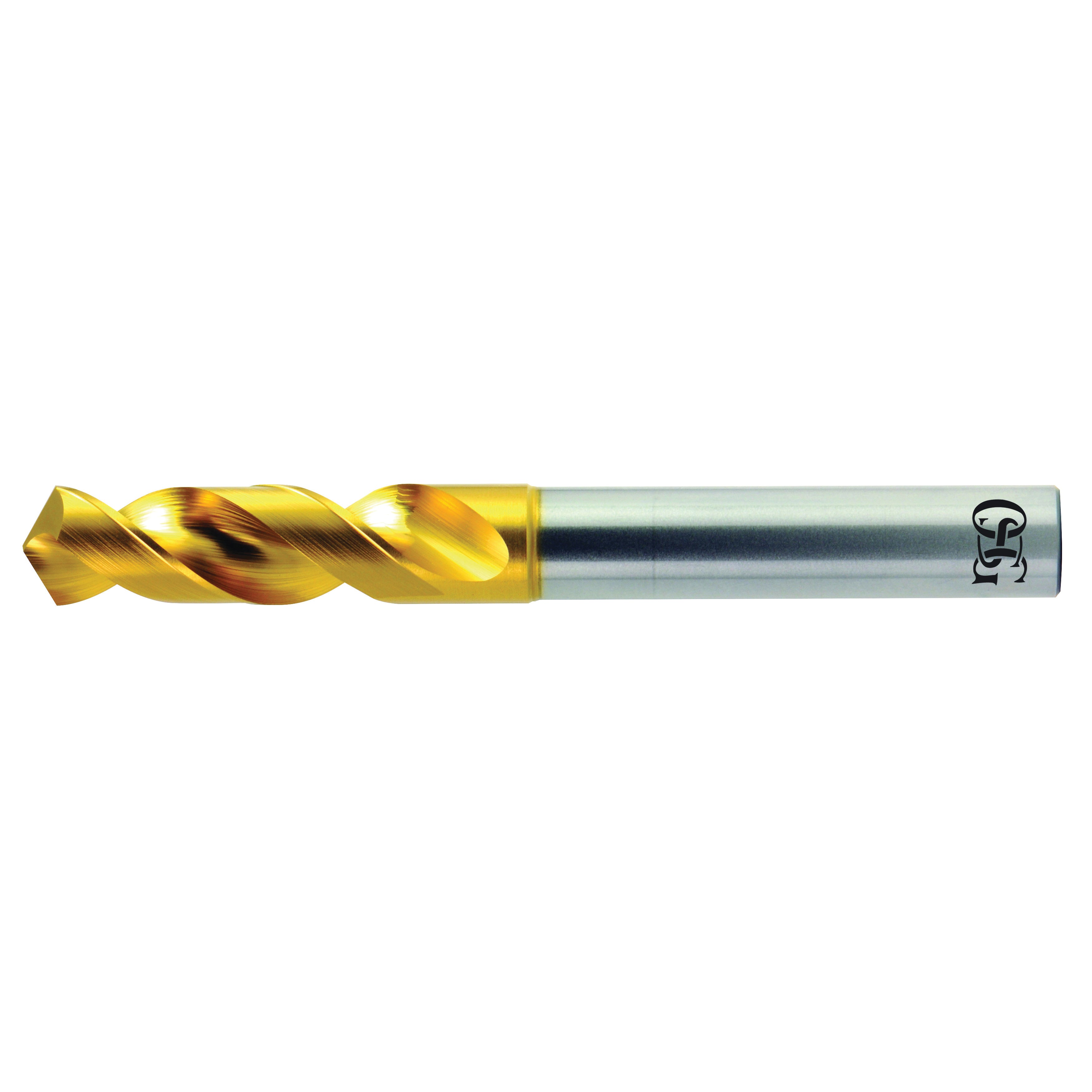

OSG 8595556 EX-SUS-GOLD 1100 Stub Length Drill Bit 7/32 in

Product Description

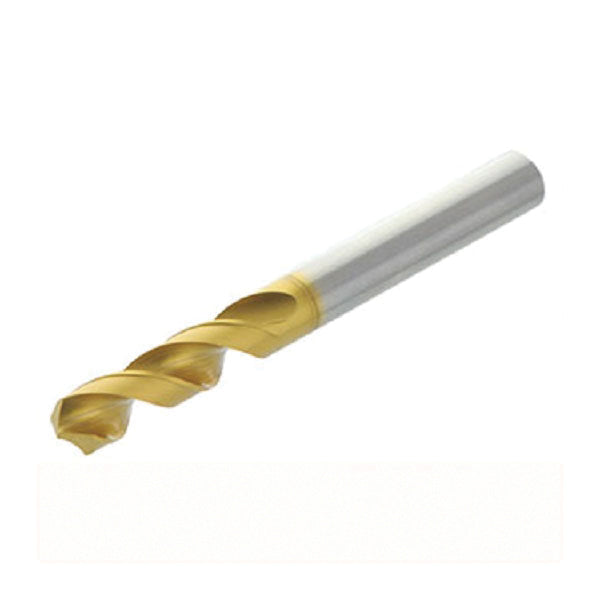

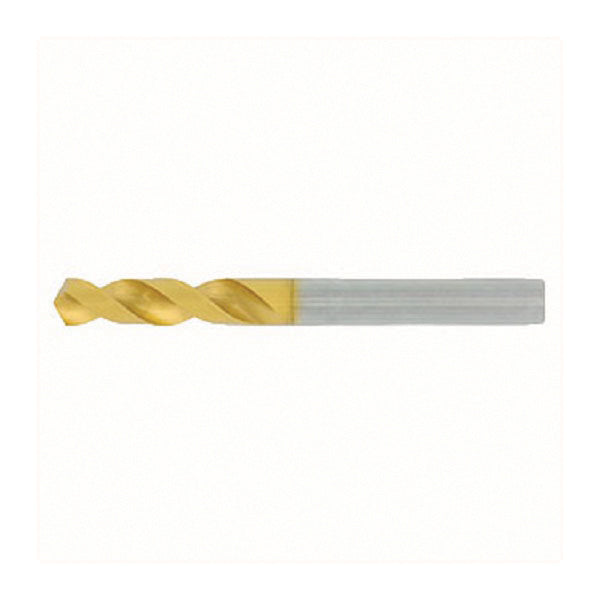

The OSG 5.56MM EX-SUS-GDS is a high-speed steel drill bit designed for performance in tough materials. It has a diameter of 0.2188 inches and a stub length featuring a drilling depth of 1.1024 inches. Constructed of vanadium high-speed steel, this drill bit is suitable for use in stainless steel and aluminum.

• Stub length design for compact applications
• TiN coating for increased wear resistance

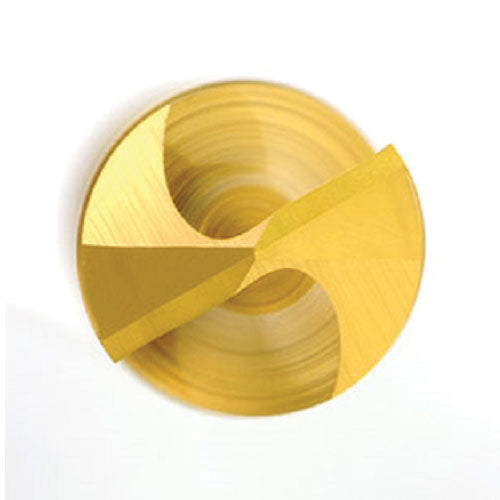

• Enhanced point geometry for precision drilling

Product Highlights

This product is widely recognized for its capability to handle gummy materials. Its high helix and refined X-thinning point geometry yield sharpness for effective performance.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-8595556

Technical Specifications

• Diameter: 0.2188 inches (5.558 mm)
• Shank Diameter: 0.2362 inches (6.000 mm)
• Flute Length: 1.1024 inches (28.000 mm)
• Overall Length: 2.8346 inches (72.000 mm)
• Material: HSS-E (High-speed steel)
• Finish: Titanium Nitride (TiN) coated
• Applicable Materials: Aluminum, carbon steel, and stainless steel
• Point Angle: 120 degrees
