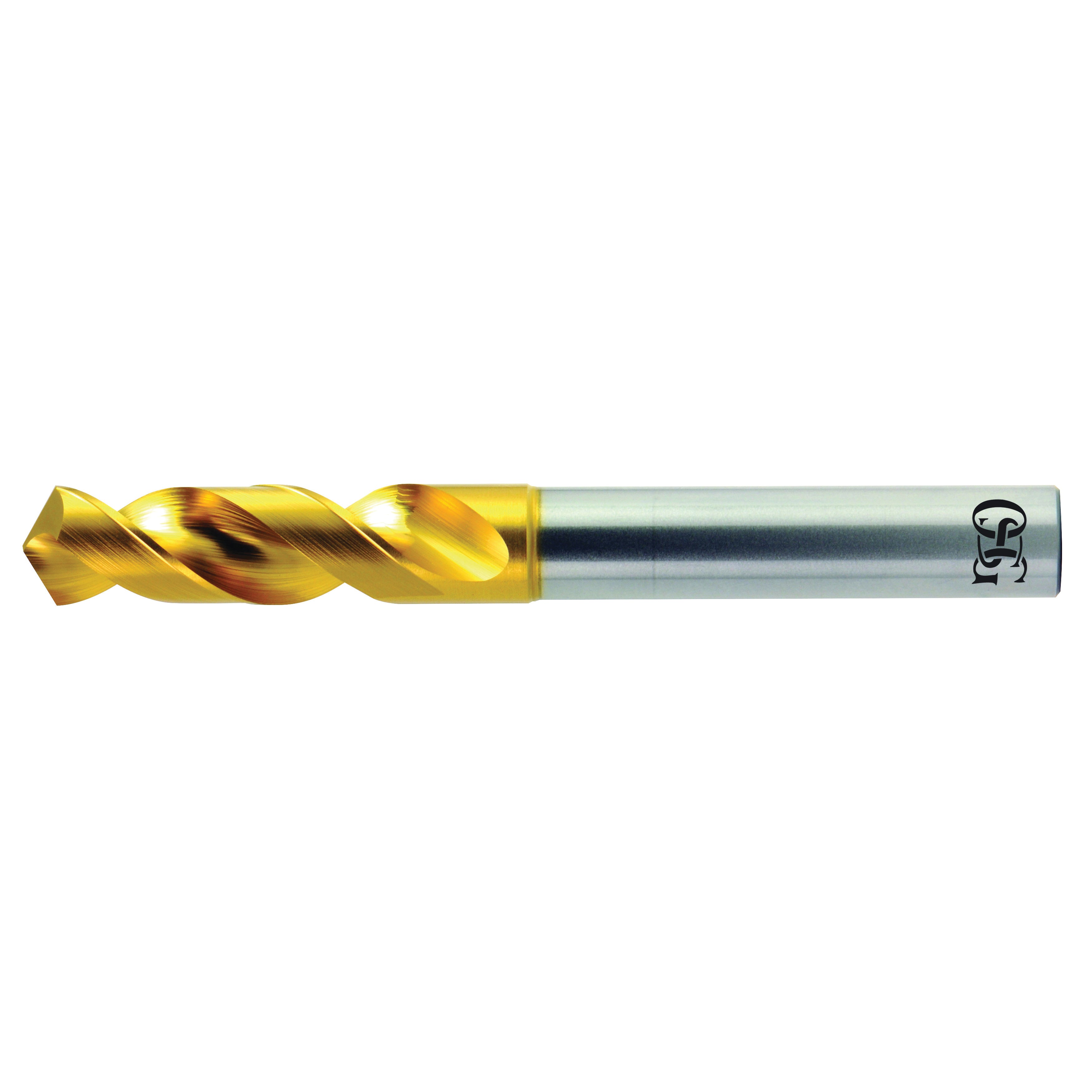

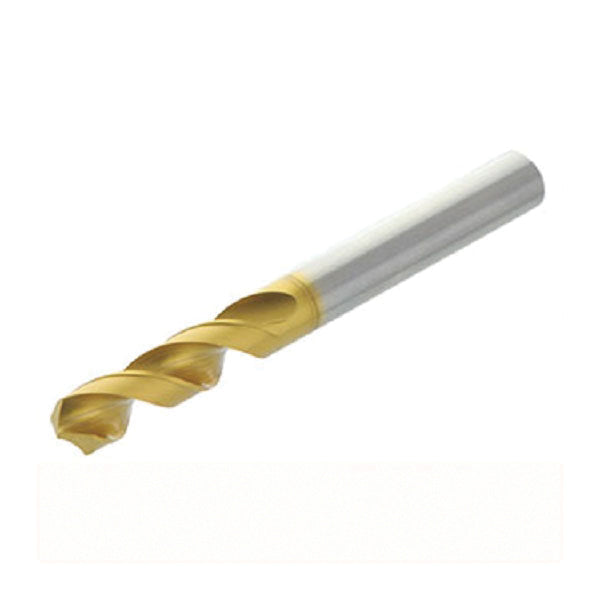

OSG 8595498 OSG #9 High Perf Stub Drill (Stainless) HSS-E/TiN 26x70 M6sh

Product Description

OSG presents the 8595498 drill bit, known as the #9 High Perf Stub Drill made of stainless HSSE/TIN. This high-speed steel drill is designed to work on various materials, including aluminum, carbon steel, and stainless steel. With a diameter of zero point one nine six inches, this drill provides precision and efficiency in drilling operations.

• Stub length design for better control and accuracy.
• High helix geometry for effective chip removal.
• Titanium Nitride (TiN) coating increases hardness and extends tool life.

Product Highlights

This drill bit is ideal for processing soft and gummy materials, providing superior performance.

Product Information

Standard Information

• Brand: OSG
• Material: HSS-E TiN Coated

Technical Specifications

• Diameter: 0.196 inches (4.98 mm)
• Shank Diameter: 0.236 inches (6.00 mm)
• Flute Length: 1.027 inches (26.00 mm)
• Overall Length: 2.756 inches (70.00 mm)
• Cutting Depth: 1.024 inches (26.00 mm)
• Number of Flutes: 2

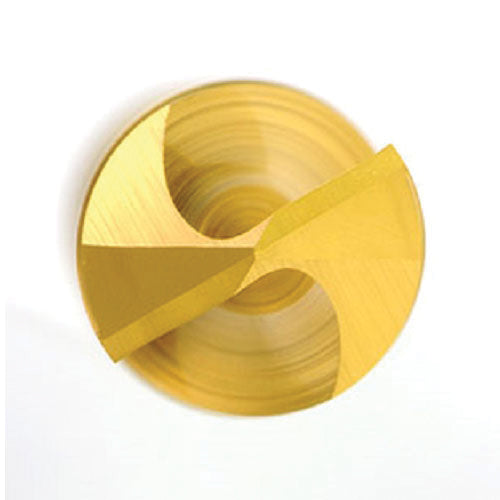

• Point Type: 4-Facet/X Thinning
• Point Angle: 120 degrees
