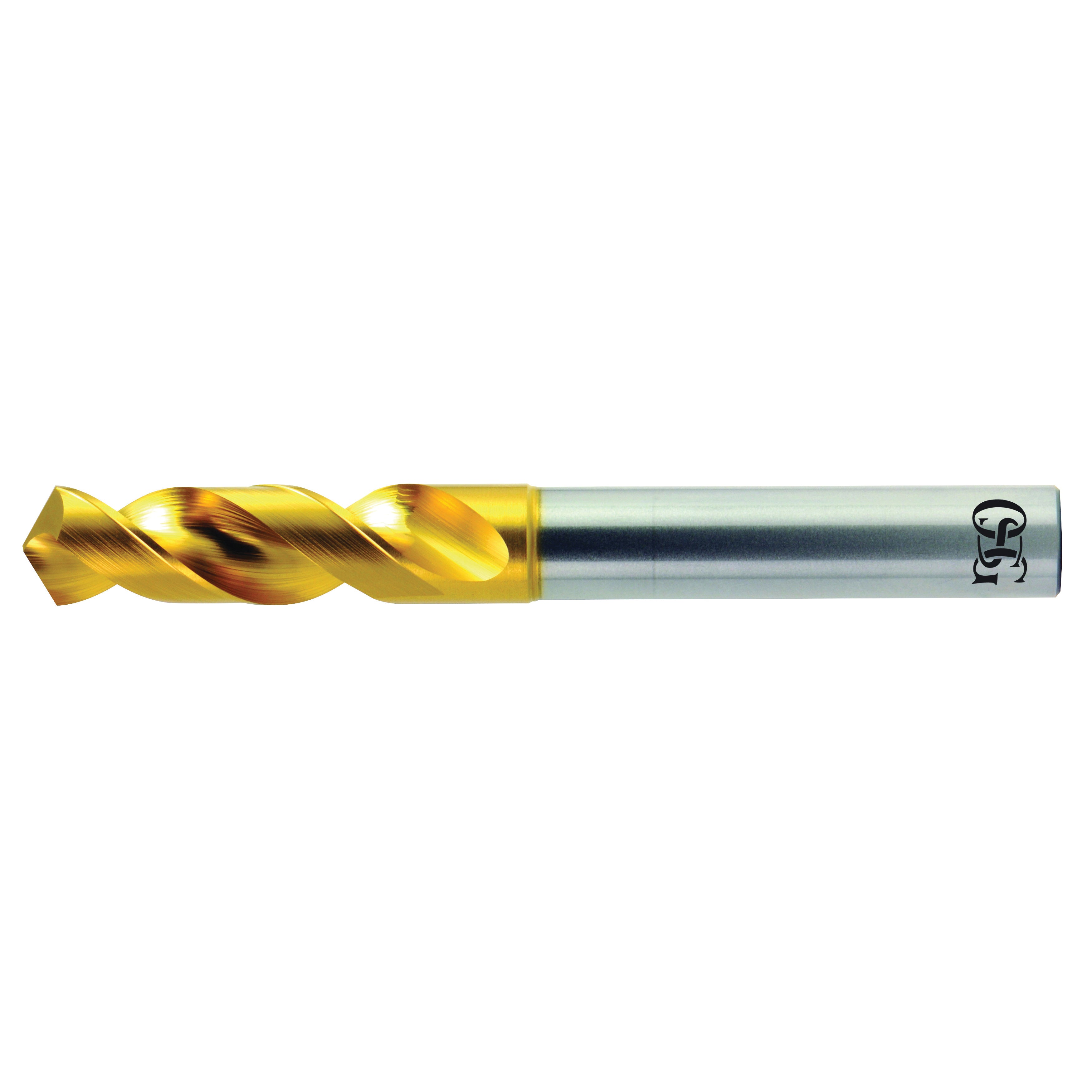

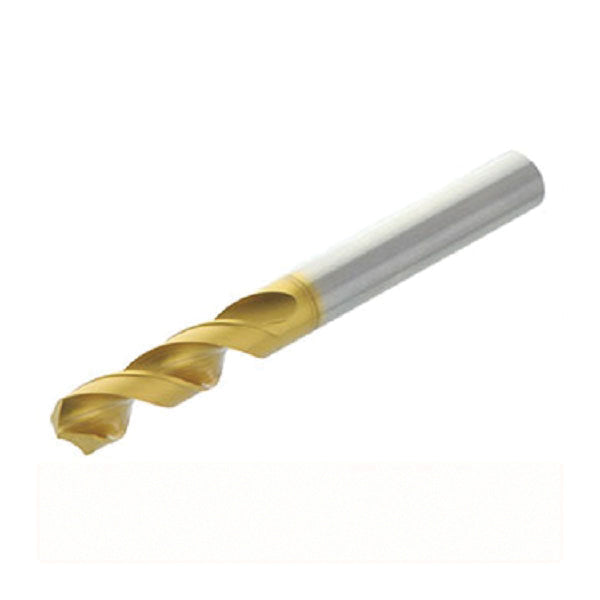

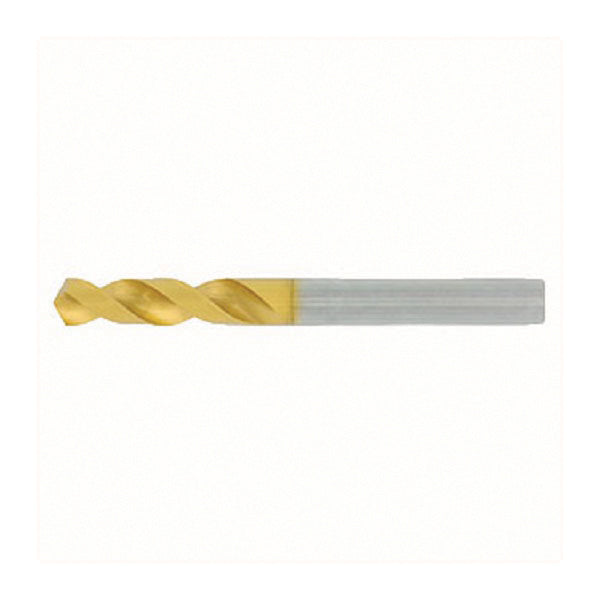

OSG 8595321 Ex-SUS-GOLD 1100 Stub Length Drill Bit, 3.21 mm Drill - Metric, 0.1264 in Drill - Decimal Inch, HSS-E, TiN Coated

Product Description

OSG 3.21MM EX-SUS-GDS is a stub length drill bit manufactured by OSG. This drill bit features a diameter of zero point one two six four inches and a shank diameter of zero point one five seven five inches. It is made from vanadium high-speed steel (HSS), known for its durability and heat resistance.

• Diameter: 3.21 mm
• Flute Length: eighteen mm
• Overall Length: fifty mm

Product Highlights

This drill bit is ideal for drilling through materials such as aluminum, carbon steel, and stainless steel. The high helix design allows for efficient chip removal, and its TiN coating enhances wear resistance.

Product Information

Standard Information

• Brand: OSG
• Material: Vanadium HSS

Technical Specifications

• Diameter: 0.1264 inches (3.210 mm)
• Shank Diameter: 0.1575 inches (4.000 mm)
• Flute Length: 0.7087 inches (18.000 mm)
• Overall Length: 1.9685 inches (50.000 mm)

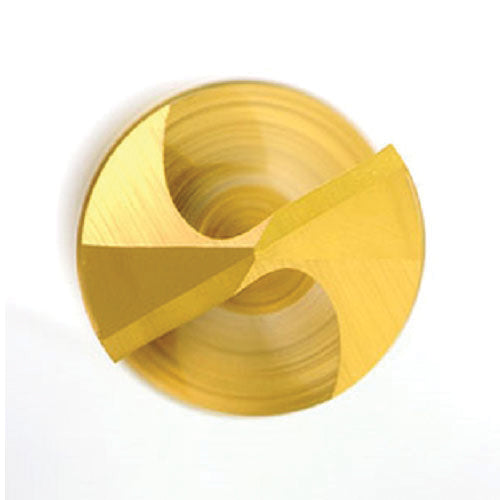

• Point Angle: 130 degrees
• Flute Type: Spiral
• Number of Flutes: 2
• Cutting Direction: Right Hand
