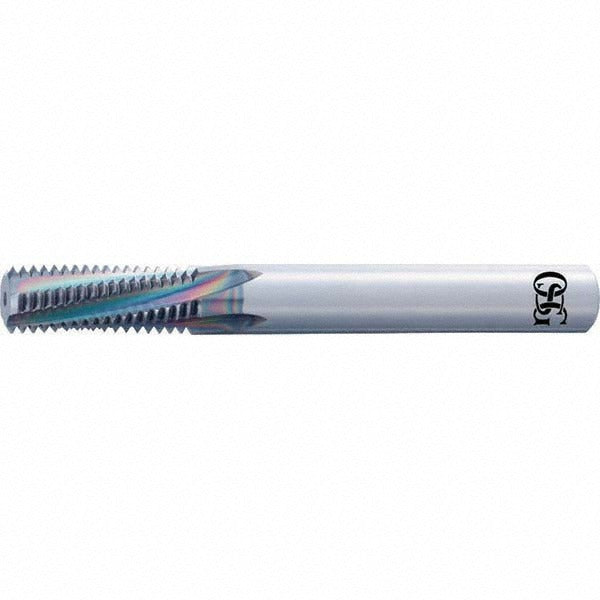

Osg 8331016 Thread Mill M14x2 5 Flute Solid Carbide

Product Description

The OSG 8331016 is a helical flute thread mill designed for cutting M14x2 metric internal threads in a single helical interpolation pass. Built from solid carbide and finished with an EgiAs coating, this tool delivers wear resistance and thermal stability in demanding machining environments. The 9.70 mm cutting diameter pairs with a 10 mm shank for rigid tool holding, while the 32 mm length of cut accommodates standard thread depth requirements. With 5 flutes in a right-hand flute direction, the 8331016 is suited for CNC machining centers running metric thread milling cycles.

This thread mill is intended for use in metalworking applications where metric M14x2 threads are required. The helical flute geometry reduces cutting forces compared to single-point threading, making it appropriate for harder workpiece materials and blind-hole applications where chip evacuation is critical. The 100 mm overall length provides clearance for many standard fixturing setups. It is installed and operated by CNC machinists and tooling specialists on 3-axis or higher machining centers with helical interpolation capability. Coolant-through is not supported on this tool.

Key Features

• Solid carbide construction for rigidity and wear resistance in metalcutting applications
• EgiAs coating improves surface hardness and reduces built-up edge in ferrous and non-ferrous materials
• 5-flute, right-hand helical design for efficient chip flow and consistent thread form
• 9.70 mm cutting diameter sized for M14x2 metric thread interpolation
• 32 mm length of cut accommodates standard thread depth ranges
• No coolant-through requirement simplifies setup on standard machining centers

Compatibility

Designed for use on CNC machining centers with helical interpolation capability for cutting M14x2 metric threads per the metric thread standard. Part of OSG Series 16620.

Installation Notes

Thread mills must be held in a collet chuck or hydraulic toolholder matched to the 10 mm shank diameter. Confirm runout is within acceptable limits before machining, as excess runout will affect thread quality and tool life. Program the machining center for helical interpolation using the correct climb or conventional milling direction as specified in the toolpath. Follow all machine guarding and lockout procedures before tool changes.
