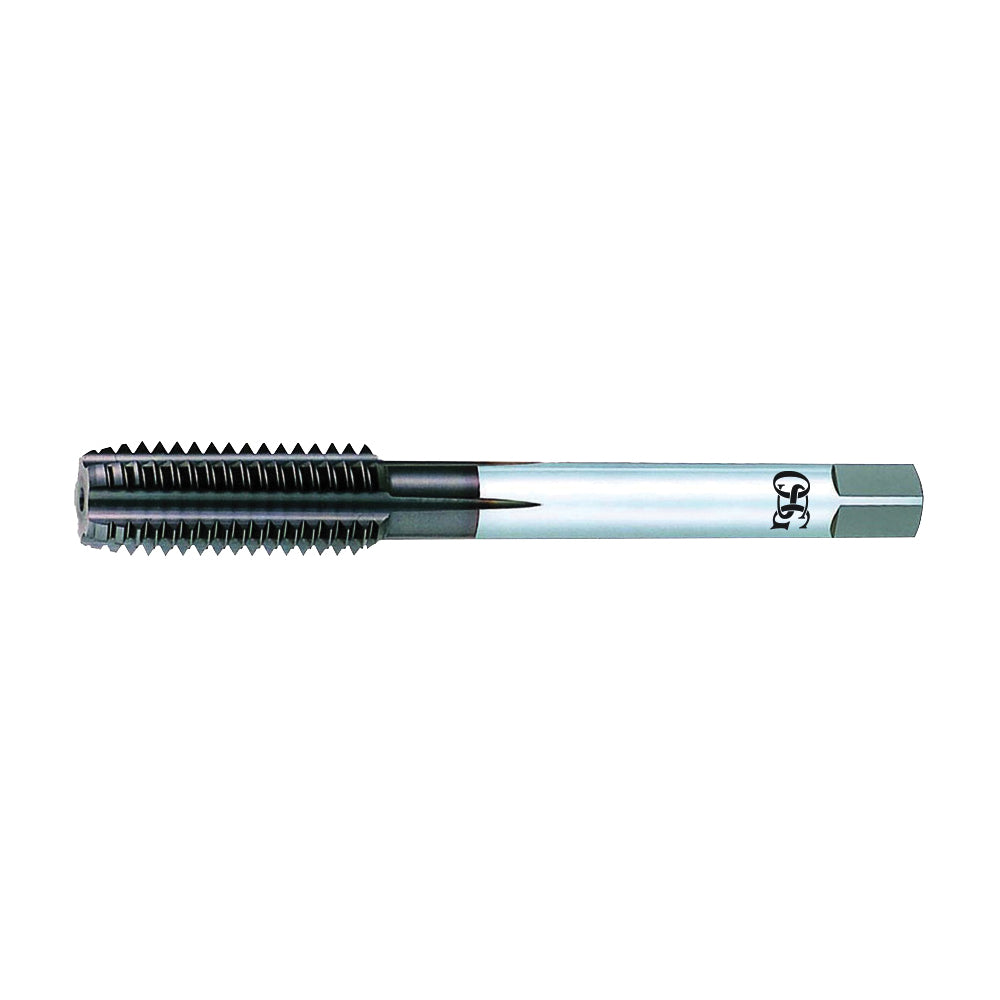

OSG 8330115 EXOCARB 341/VX-OT Straight Flute Tap M12-1.75

Product Description

The OSG 8330115 EXOCARB Straight Flute Tap is designed for threading in metric sizes. It features a M12-1.75 thread size and is made from carbide material for increased durability and performance. This right-hand cutting tap is part of the 341/VX-OT series, well-suited for applications in hardened steels with hardness ratings from fifty-four to sixty-eight HRC.

• 5 flutes for efficient chip removal
• V-coated finish enhances tool life
• 29 mm thread length for deep cuts

Product Highlights

This tap is an ideal choice for precision threading in difficult materials, providing consistent performance and reliability.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Series: 341/VX-OT
• Material: Carbide
• Thread Size: M12-1.75
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 53 mm
• Thread Limit: OH3
• Thread Length: 29 mm
• Finish/Coating: V-Coated
• Overall Length: 82 mm
• Shank Diameter: 8.5 mm
• Thread Standard: Coarse
• Number of Flutes: 5
• Cutting Direction: Right Hand
• Measurement System: Metric
• Material Application: Hardened Steel
• Through Coolant (Yes/No): No
