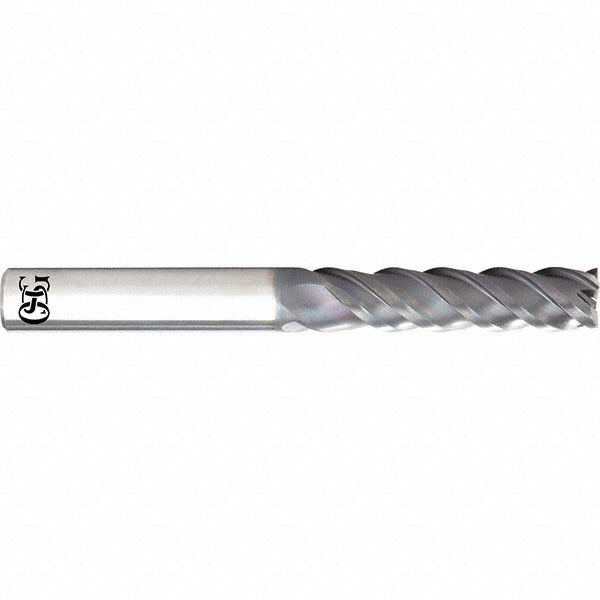

Osg 82010121 Square End Mill 1/4 in 4 Flute Solid Carbide

Product Description

The OSG 82010121 is a solid carbide square end mill designed for precision milling in ferrous and hard materials. It features a 1/4 inch cutting diameter, a 1 inch length of cut, and a 2-3/4 inch overall length. The four-flute, single-end geometry combined with a variable helix angle of 42 to 44 degrees reduces chatter and improves surface finish in demanding cuts. A micrograin carbide substrate and Duarise coating provide wear resistance in steel, stainless steel, cast iron, and hardened materials. This tool is used in CNC machining centers and manual mills by machinists, toolmakers, and maintenance technicians.

The OSG 82010121 is part of the Series 8201 long-length end mill family. It is suited for slotting, peripheral milling, and profiling in steel (P), stainless steel (M), cast iron (K), and hardened materials (H). The long length of cut makes it appropriate for deeper pockets and features where standard-length end mills cannot reach. Variable index flute spacing further suppresses vibration during aggressive cuts in tough alloys. Right-hand cutting and right-hand flute direction are standard for conventional CNC and manual mill setups.

Key Features

• Solid micrograin carbide construction for rigidity and wear life in ferrous materials
• Variable helix (42 to 44 degrees) and variable index flute spacing reduce chatter and harmonics
• Duarise coating provides high-temperature resistance and extended tool life in steel and hardened materials
• Long length of cut at 1 inch allows deeper pocket and profile work
• Centercutting geometry enables plunge entries
• Four flutes with right-hand cut and right-hand spiral for standard CNC applications

Compatibility

Designed for use in steel, stainless steel, cast iron, and hardened materials per ISO material codes P, M, K, and H. Accepts standard 1/4 inch collets, end mill holders, and shrink-fit toolholders.

Installation Notes

Installation is performed by machinists using a compatible toolholder with a 1/4 inch bore. Ensure the shank is fully seated and the toolholder is torqued per the holder manufacturer's specification before spindle engagement. Verify spindle direction is set to right-hand rotation before running. Do not exceed the recommended depth of cut or feed rate for the workpiece material and machine rigidity.
