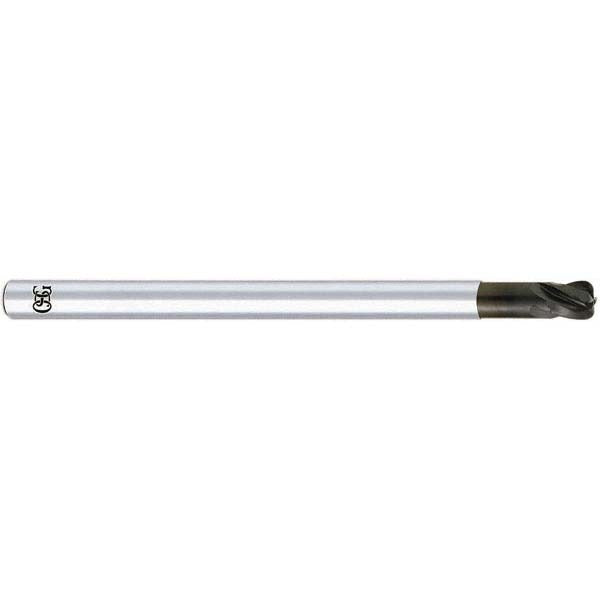

Osg 70720116 Corner Radius End Mill 1/8 in 4 Flute Carbide

Product Description

The OSG 70720116 is a solid carbide corner radius end mill designed for precision milling of non-ferrous metals and graphite. It features a 1/8 inch cutting diameter, a 0.015 inch corner radius, and four right-hand helical flutes with a 30-degree helix angle. The cutting edge is finished with a CVD diamond coating, making it well suited for abrasive materials that would quickly wear uncoated carbide tooling. At 3 inches overall length with a 3/4 inch length of cut and extended reach geometry, this tool is built for both roughing and finishing passes in a single setup.

This end mill is used in CNC machining applications involving non-ferrous metals such as aluminum, copper, and brass, as well as graphite and composite materials. The single-end, center-cutting design allows for plunge entry and contour milling. Extended reach and a 5/8 inch reach length make it appropriate for pockets and features with depth requirements that exceed standard stub configurations. It mounts in a standard straight-bore toolholder accepting a 1/8 inch shank.

Key Features

• CVD diamond coating for extended tool life in abrasive non-ferrous and graphite applications
• 0.015 inch corner radius reduces stress concentration and improves edge integrity at corners
• Center-cutting geometry allows direct plunge entry without pre-drilling
• Extended reach design with 5/8 inch reach length for deeper feature access
• Right-hand cut, right-hand flute direction with normal pitch for predictable chip evacuation
• Shank diameter tolerance to h6 for consistent runout in precision toolholders

Compatibility

Designed for use with standard straight-bore toolholders accepting a 1/8 inch cylindrical shank. Intended for machining non-ferrous metals and graphite workpieces. Part of the OSG Series 7072 extended-reach end mill family.

Installation Notes

Installation should be performed by a qualified machinist following the toolholder manufacturer torque and runout specifications. Ensure the machine spindle is fully stopped and the tool changer is in a safe state before loading or removing the tool. Confirm shank engagement depth meets the minimum grip length required by the toolholder to prevent pullout under cutting loads. Diamond-coated tooling should not be used on ferrous materials, as carbon in the coating reacts with iron at elevated temperatures and causes rapid coating degradation.
