Osg 70200316 Square End Mill 1/16 in 2 Flute Solid Carbide

Product Description

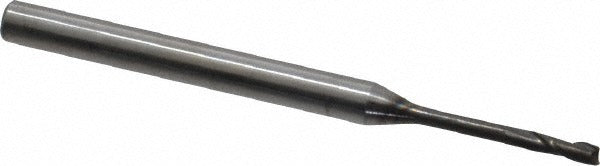

The OSG 70200316 is a solid carbide square end mill designed for high-precision milling in ferrous and non-ferrous materials. Built on OSG Series 7020, this stub-length end mill features a 1/16 inch cutting diameter with a 3/16 inch length of cut and a 30-degree helix angle. The diamond finish coating improves surface hardness and lubricity, reducing heat buildup during aggressive cuts. With only 2 flutes and a micrograin carbide substrate, the tool maintains rigidity and edge integrity in tight-tolerance slots, pockets, and contours at small diameters. It is centercutting and configured for right-hand cut with right-hand spiral flutes, making it compatible with standard CNC machining center spindles.

This end mill is suited for precision slot milling, pocketing, and contouring operations on CNC machining centers and high-speed mills. The 1/8 inch shank diameter fits standard collet systems, and the 1/2 inch extended reach makes it practical for accessing deeper features without excessive tool deflection. It is intended for machinists and tooling specialists working on tight-tolerance components in aerospace, mold-making, medical device, and general precision machining environments where small-diameter tooling and dimensional accuracy are critical.

Key Features

• 1/16 inch cutting diameter with plus 0.00 / minus 0.02 mm diameter tolerance for tight dimensional control
• Solid carbide micrograin substrate provides rigidity and wear resistance at small diameters
• Diamond finish reduces friction and extends tool life in demanding cut conditions
• 30-degree helix angle with spiral flute geometry promotes efficient chip evacuation
• Centercutting design allows plunge entry directly into the workpiece
• Stub length classification minimizes deflection when working at this diameter scale

Compatibility

Designed for use with standard 1/8 inch collet systems on CNC machining centers and high-speed milling machines. Part of the OSG Series 7020 square end mill line for small-diameter precision work.

Installation Notes
