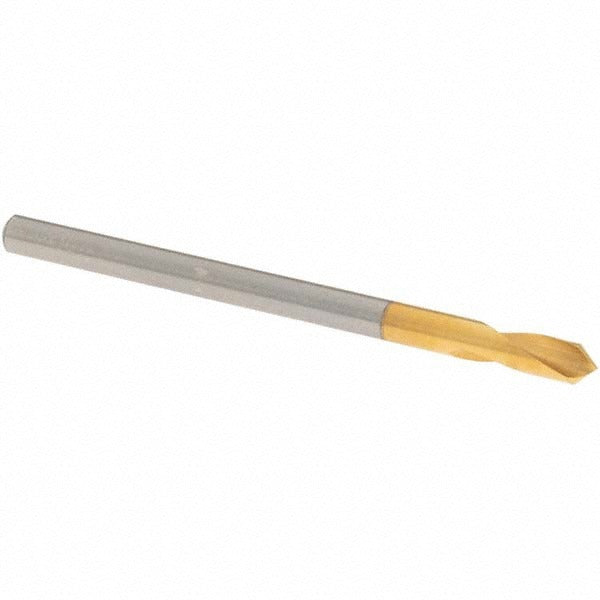

Osg 63603 Spotting Drill 90 Degree 3mm 2-flute Hss Tin

Product Description

The OSG 63603 is a 90-degree spotting drill designed to create accurate center points for follow-on drilling operations in metal fabrication and machining applications. Built from high speed steel (HSS) with a titanium nitride (TiN) coating, it offers improved surface hardness and wear resistance compared to uncoated HSS tooling. The drill features a 3mm cutting diameter, a 48mm overall length, and an 11mm flute length. With a 2-flute spiral design and a 20-degree helix angle, it evacuates chips efficiently and maintains positional accuracy at the start of a hole. The straight cylindrical shank measures 3mm in diameter, making it compatible with standard collet and drill chuck setups.

This spotting drill is suited for general purpose machining in job shops, tool rooms, and production environments. It is used to establish a precise starting divot before a twist drill or reamer is applied, reducing walking and improving hole location accuracy. Right-hand cutting direction is standard for conventional CNC and manual spindle setups. The Series 1200 designation places it within OSG's general purpose spotting line, appropriate for use in steel, aluminum, and similar machinable materials.

Key Features

• 90-degree drill point angle for accurate spotting and countersink preparation
• TiN coating increases surface hardness and extends tool life versus uncoated HSS
• 2-flute spiral geometry with 20-degree helix angle for efficient chip evacuation
• Straight cylindrical shank fits standard collets and drill chucks
• Single-ended design with right-hand cut for conventional spindle use
• General purpose tool application suitable for a wide range of machinable materials

Compatibility

Designed as a general purpose spotting drill for use in CNC machining centers, drill presses, and manual mills equipped with collets or drill chucks accepting a 3mm straight cylindrical shank.

Installation Notes

This tool is installed by machinists and CNC operators in standard collet chucks or keyless drill chucks. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Verify runout at the shank before operation to maintain positional accuracy. Follow the machine manufacturer and tooling supplier guidelines for appropriate feed rates and spindle speeds for the workpiece material.
