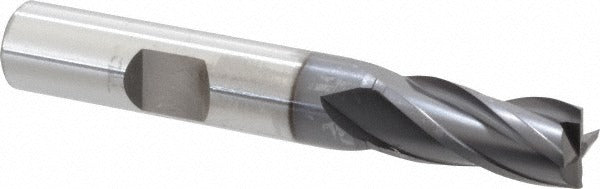

Osg 5740808 Square End Mill 11/32 in 4 Flute Vanadium Hss

Product Description

The OSG 5740808 is a square end mill designed for general-purpose milling operations in ferrous and non-ferrous materials. Built from 3% vanadium high speed steel with a TiCN coating, it delivers improved wear resistance and heat tolerance compared to standard HSS tooling. The cutter features a 11/32 inch (0.3438 inch) diameter, a 3/4 inch length of cut, and a 4-flute spiral geometry with a 30-degree helix angle. Centercutting capability allows the tool to plunge directly into the workpiece. It is a single-end, right-hand cut, right-hand flute configuration in the OSG Series 574 lineup, suitable for CNC machining centers and manual mills.

This end mill is used in production and job-shop environments for slotting, profiling, and peripheral milling. The 3/8 inch shank diameter fits standard ER collet chucks and end mill holders common to vertical machining centers and knee mills. The regular-length geometry makes it well-suited for shallow to medium-depth cuts in steel, alloy steel, cast iron, and similar materials where TiCN coating provides a practical performance advantage over uncoated tooling.

Key Features

• 3% vanadium high speed steel construction for improved toughness and wear resistance over standard M2 HSS
• TiCN coating extends tool life in ferrous materials by reducing friction and heat buildup at the cutting edge
• Centercutting design allows direct plunge entry without a pre-drilled pilot hole
• 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces
• 4-flute spiral configuration balances metal removal rate with surface finish quality
• Right-hand cut and right-hand flute — standard orientation for conventional CNC and manual mill setups

Compatibility

Designed as an OEM-style cutting tool for use in standard 3/8 inch end mill holders, ER collet chucks, and Weldon-style holders on vertical machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully powered down and locked out before changing tooling. Seat the shank fully into the holder and torque the set screw or collet nut to the holder manufacturer's specification. Inspect the cutting edges for chips or damage before each use; a damaged TiCN coating or chipped flute indicates the tool should be replaced rather than reground.
